35-511-190-R-900

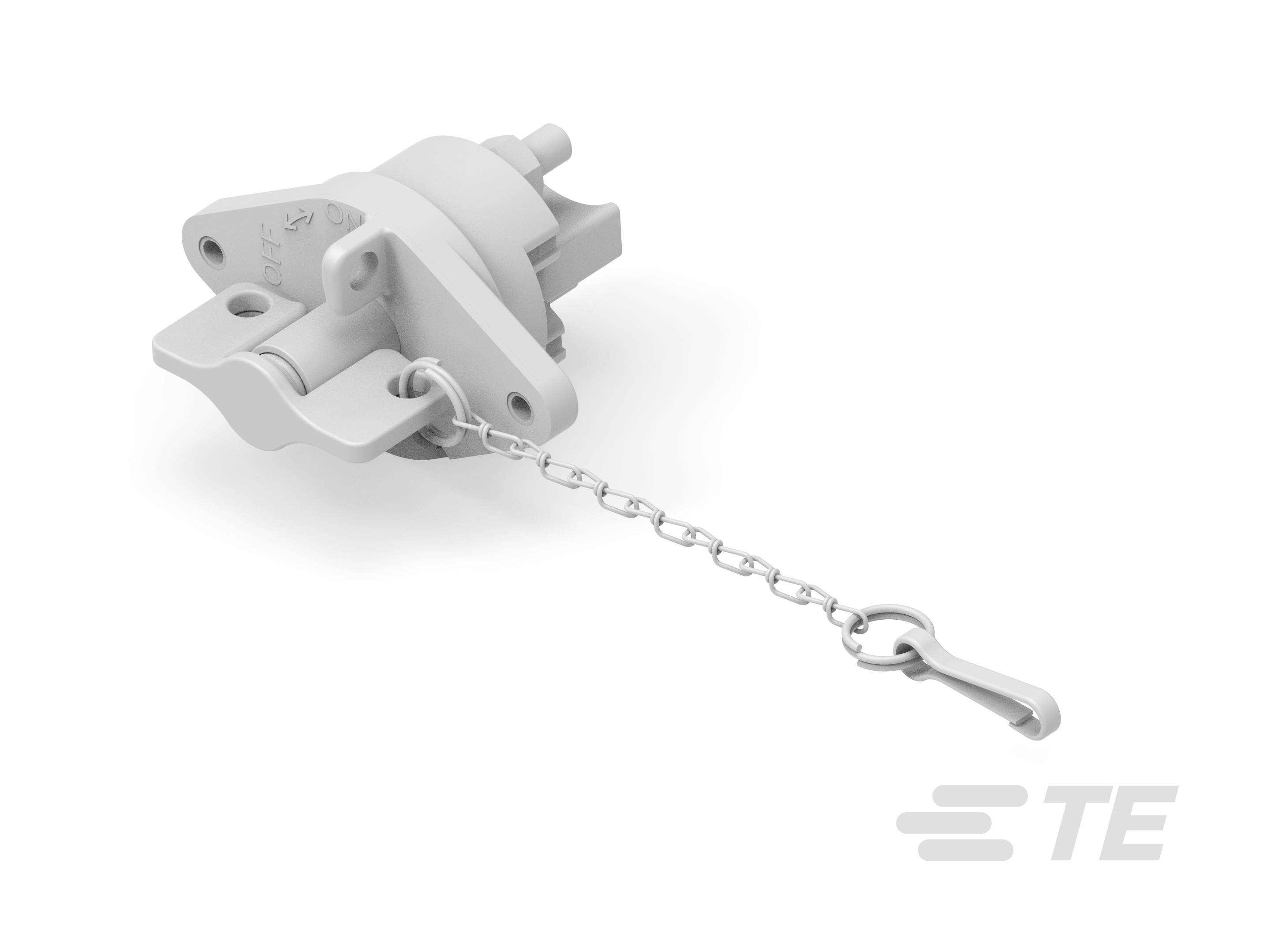

500 A Battery Disconnect Switch, 32 VDC, 1 Pole, M10, 0 Auxillary Positions, Long Flange, T-Handle, Removable With Chain, KISSLING Series 35
35-511-190-R-900
500 A Battery Disconnect Switch, 32 VDC, 1 Pole, M10, 0 Auxillary Positions, Long Flange, T-Handle, Removable With Chain, KISSLING Series 35
-
- KISSLING
- KISSLING Series 35
- TE Internal #: K1135666
- TE Internal Description: Battery Disconnector 35-511-190-R-900
- All Battery Disconnector, 500A, 1 Pole (30)
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Termination Thread Size : M10
-
Operating Handle Type : T-Handle
-
Number of Auxiliary Contacts : 0
-
Centerline Between Flange Screw Holes : 100 mm [ 3.937 in ]
Documents
Product Drawings
- BATTERY DISCONNECTOR 500A Batterietrennschalter 500A ENG_CD_35-511-190-R-900_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_35-511-190-R-900_1.pdf 3D
- Customer View Model ENG_CVM_CVM_35-511-190-R-900_1.2d_dxf.zip English
- ENG_CVM_CVM_35-511-190-R-900_1.3d_igs.zip English
- ENG_CVM_CVM_35-511-190-R-900_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING BATTERY DISCONNECTOR Series 35 / 500A ENG_DS_K1166712_B.pdf English
