G12-212-D

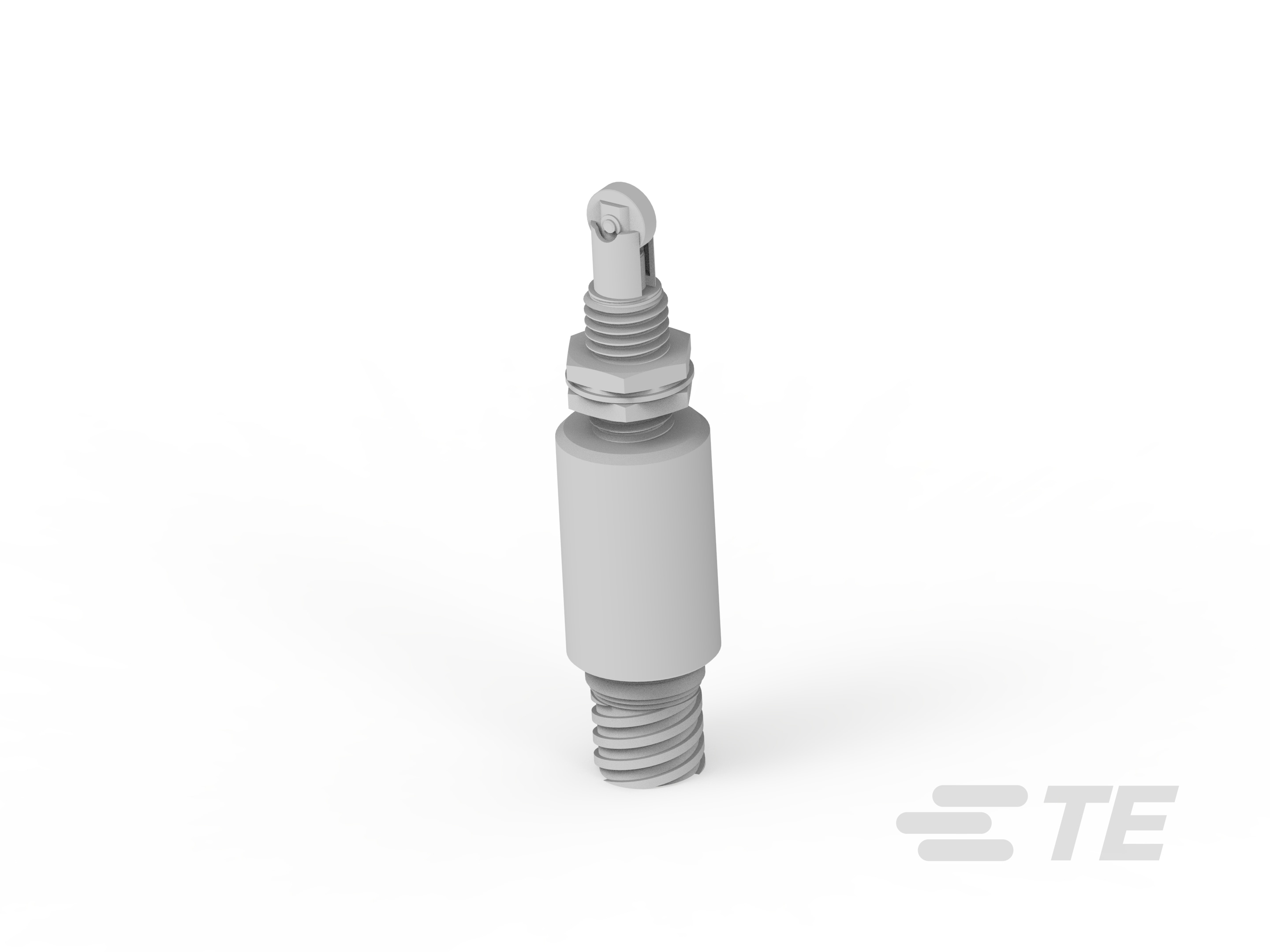

Limit Switch, Double Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, Process Sealed, KISSLING Series G12
G12-212-D
Limit Switch, Double Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, Process Sealed, KISSLING Series G12
-
- KISSLING
- KISSLING Series G12
- TE Internal #: K1140735
- TE Internal Description: Limit switch G12-212-D
-
Push Button Switch Product Type : Limit Switch
-
Configuration (Pole-Throw) : Double Pole - Double Throw
-
Number of Actuators : Single
-
Actuator Profile : Extended
-
Bushing Style : Threaded
Documents
Product Drawings
- Limit Switch ENG_CD_G12-212-D_2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_K1140735_1.pdf 3D
- Customer View Model ENG_CVM_CVM_K1140735_1.2d_dxf.zip English
- ENG_CVM_CVM_K1140735_1.3d_igs.zip English
- ENG_CVM_CVM_K1140735_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING LIMIT SWITCH Series G12 ENG_DS_K1166742_A.pdf English
