TS-221-GN11 917

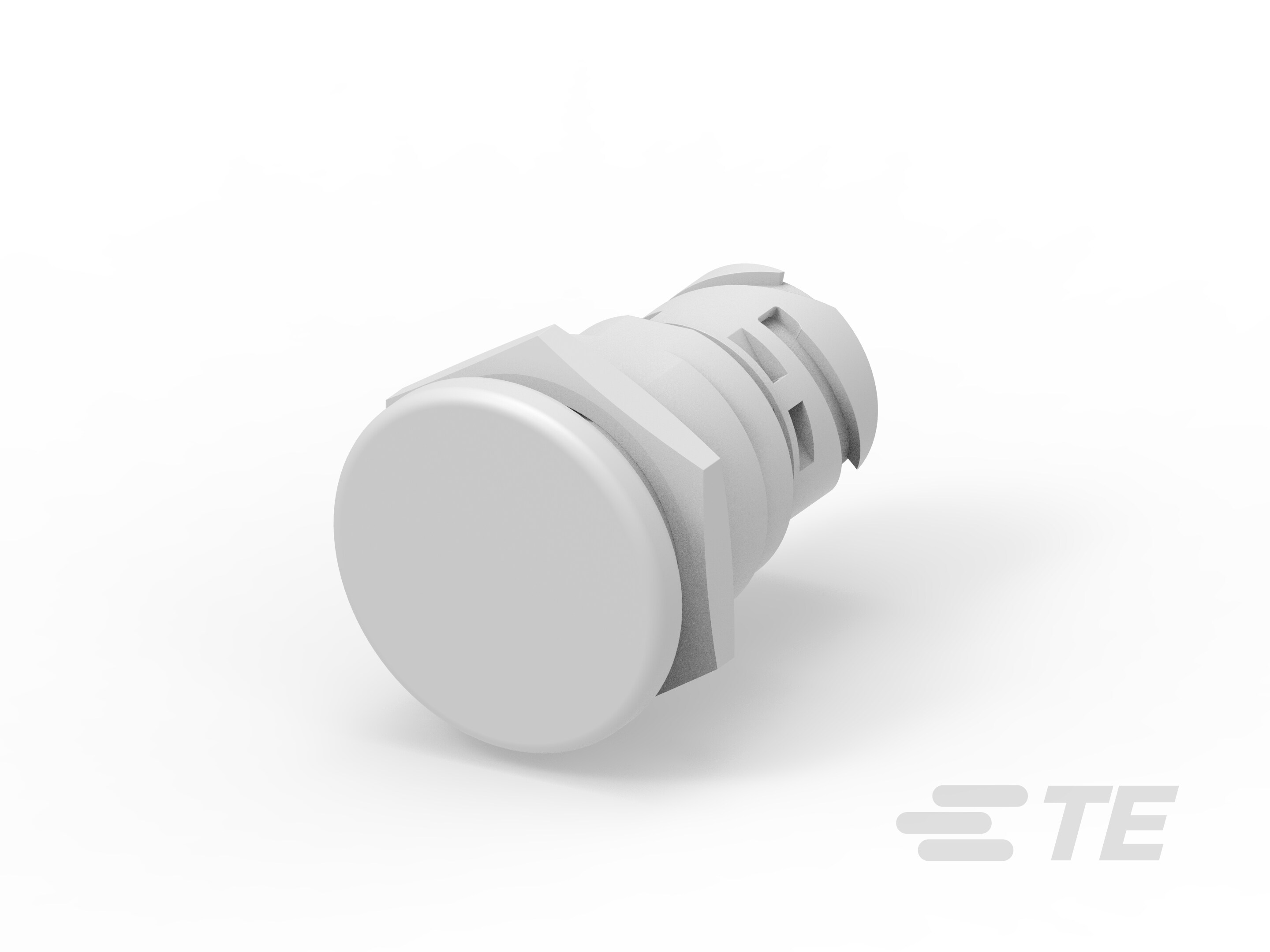

General Purpose Push Button Switch, Double Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Flush Actuator, KISSLING Series TS
TS-221-GN11 917
General Purpose Push Button Switch, Double Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Flush Actuator, KISSLING Series TS
-
- KISSLING
- KISSLING Series TS
- TE Internal #: K1157711
- TE Internal Description: Push button switch TS-221-GN11 917
- All Push Button Switch, Center Thread, 1 Actuator, Flush Profile (44)
-
Push Button Switch Product Type : General Purpose Push Button Switch
-
Configuration (Pole-Throw) : Double Pole - Double Throw
-
Number of Actuators : Single
-
Actuator Profile : Flush
-
Bushing Style : Threaded
Documents
Product Drawings
- Push Button Switch ENG_CD_TS-221-GN11_917_1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_K1157711_1.pdf 3D
- Customer View Model ENG_CVM_CVM_K1157711_1.2d_dxf.zip English
- ENG_CVM_CVM_K1157711_1.3d_igs.zip English
- ENG_CVM_CVM_K1157711_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING PUSH BUTTON SWITCH Series TS ENG_DS_K1166725_B.pdf English
