35-514-231-R-A5-905

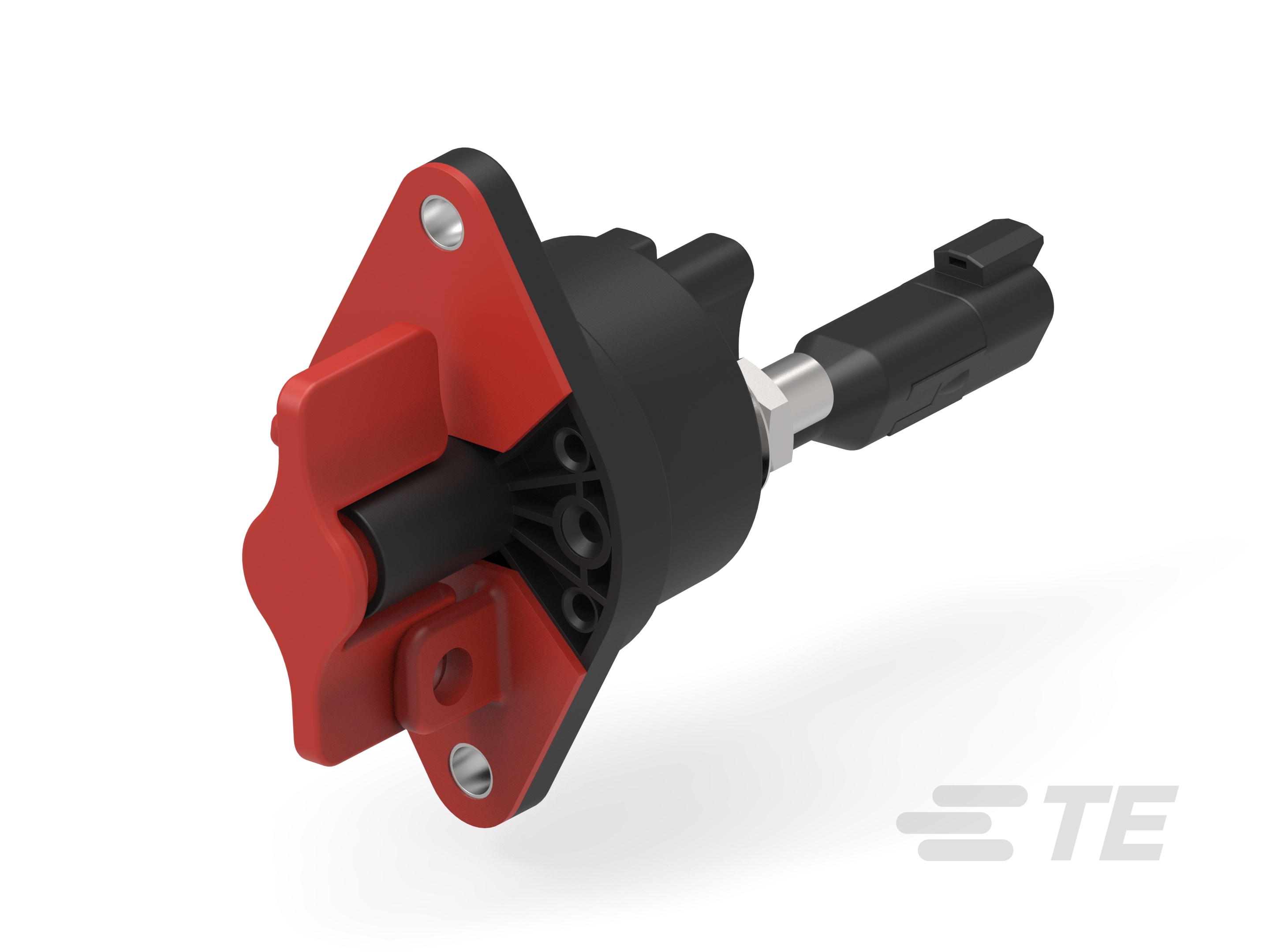

500 A Battery Disconnect Switch, 32 VDC, 1 Pole, M12, 1 Auxillary Positions, Long Flange, T-Handle, Not Removable, Red Handle
35-514-231-R-A5-905
500 A Battery Disconnect Switch, 32 VDC, 1 Pole, M12, 1 Auxillary Positions, Long Flange, T-Handle, Not Removable, Red Handle
- TE Internal #: K5000060
- TE Internal Description: Batt. Disconnector 35-514-231-R-A5-905
- All Battery Disconnector, 500A, 1 Pole (30)
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Termination Thread Size : M12
-
Operating Handle Type : T-Handle
-
Number of Auxiliary Contacts : 1
-
Centerline Between Flange Screw Holes : 100 mm [ 3.94 in ]
Documents
Product Drawings
- BATTERY DISCONNECTOR 500A WITH AUX. GER_CD_35-514-231-R-A5-900_A.pdf German
- BATTERY DISCONNECTOR 500A WITH AUX. ENG_CD_35-514-231-R-A5-905_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_K5000060_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_K5000060_A1.2d_dxf.zip English
- ENG_CVM_CVM_K5000060_A1.3d_igs.zip English
- ENG_CVM_CVM_K5000060_A1.3d_stp.zip English
Datasheets & Catalog Pages
- BATT. DISCONNECTOR 35-514-231-R-A5-905 ENG_DS_DS_K5000060_A.pdf English
