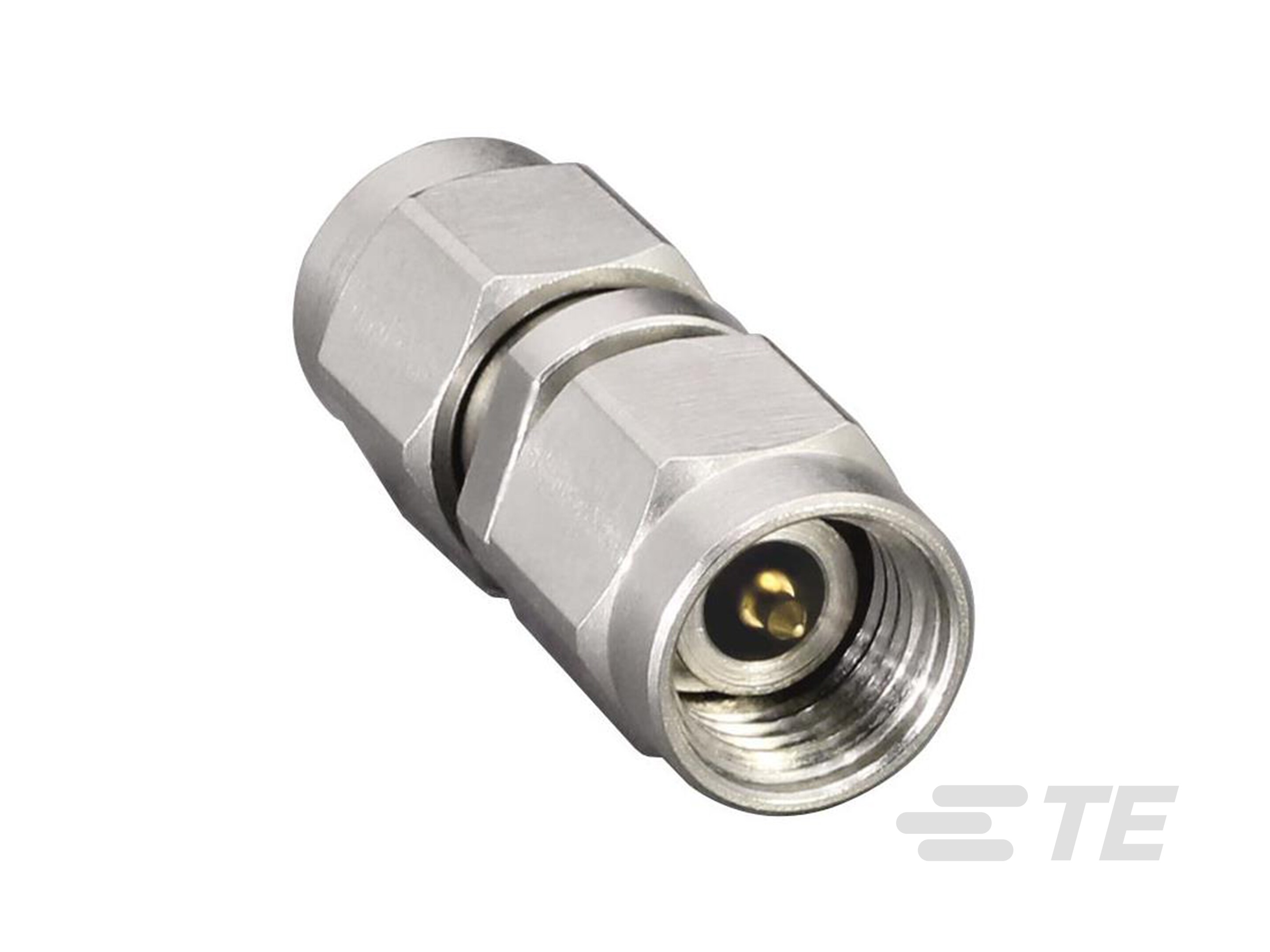

ADP-2.92M-2.92M
In-Series Adapter, Straight, 2.92mm Series Side A, Plug Side A, 2.92mm Series Side B, Plug Side B, 2 Position
ADP-2.92M-2.92M
In-Series Adapter, Straight, 2.92mm Series Side A, Plug Side A, 2.92mm Series Side B, Plug Side B, 2 Position
- TE Internal #: L9000336-01
- TE Internal Description: 2.92 Plug to 2.92 Plug
-
Connector Interface Adapter Type : In-Series Adapter
-
Body Orientation : Straight
-
Side A Interface : 2.92mm Series
-
Side A Gender : Plug
-
Side B Interface : 2.92mm Series
Documents
Product Drawings
- ADAPTER 2.92 MAL 2.92 MAL ENG_CD_C-ADP-2.92M-2.92M_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_L9000336-01_A.pdf 3D
- Customer View Model ENG_CVM_CVM_L9000336-01_A.3d_stp.zip English
- ENG_CVM_CVM_L9000336-01_A.2d_dxf.zip English
- ENG_CVM_CVM_L9000336-01_A.3d_igs.zip English
Datasheets & Catalog Pages
- 2.92 mm Plug to 2.92 Plug Adapter ENG_DS_adp-2_92m-2_92m-ds_A.pdf English
