SRK-PC-080-35-601

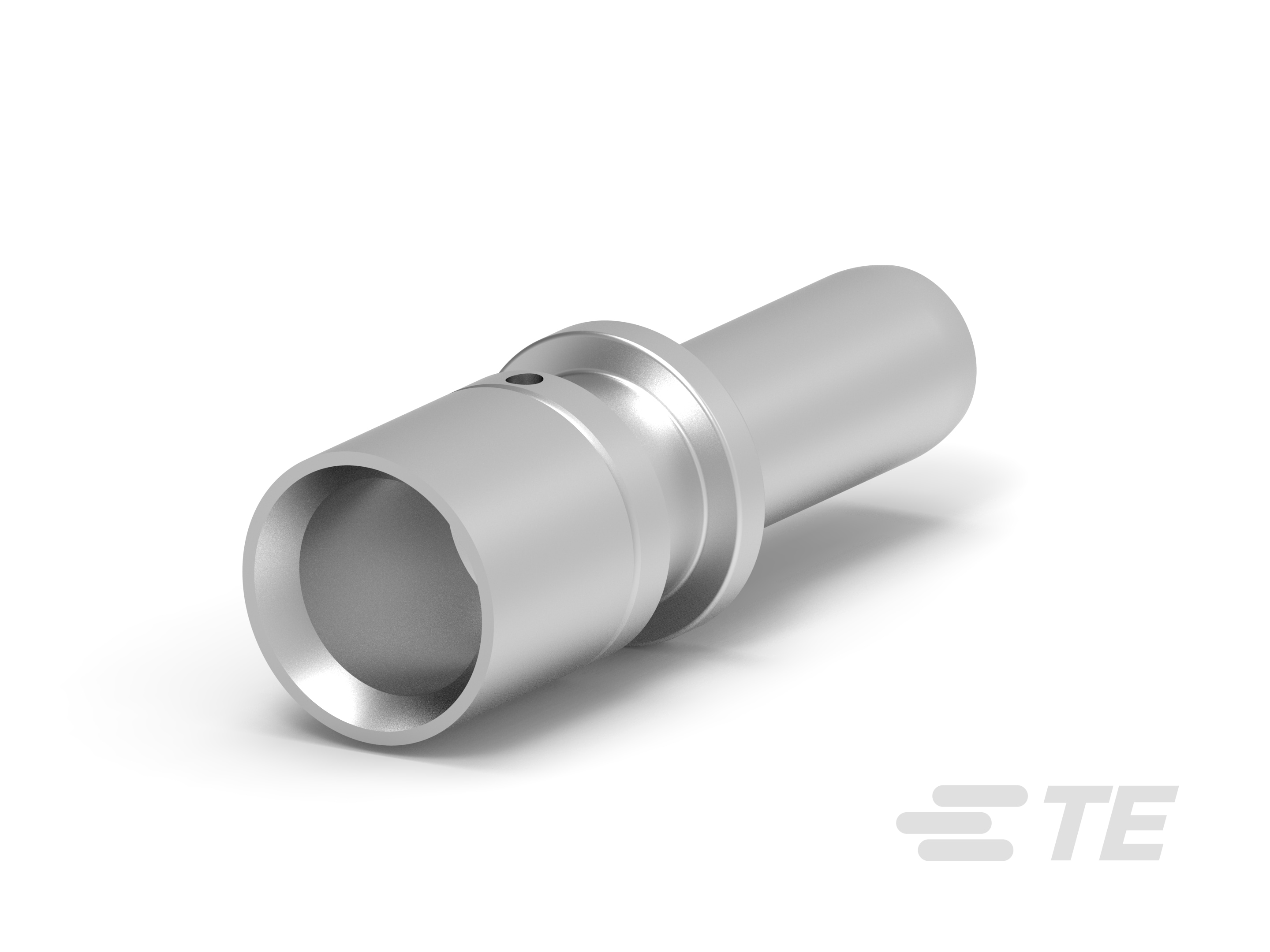

Pin Terminal, 35 mm² Wire, Silver (Ag), Sealable, 8 mm [.315 in] Pin Diameter, Single Wire Seal (SWS), Terminates To Wire, DEUTSCH DTSK
SRK-PC-080-35-601
Pin Terminal, 35 mm² Wire, Silver (Ag), Sealable, 8 mm [.315 in] Pin Diameter, Single Wire Seal (SWS), Terminates To Wire, DEUTSCH DTSK
-
- DEUTSCH
- DEUTSCH DTSK
- TE Internal #: SRK-PC-080-35-601
- TE Internal Description: PIN, SOLID, SIZE M8, 35mm2, AG
- Alias #: 2-1899774-7
-
Terminal Type : Pin
-
Wire Size (mm²): 35
-
Interface Plating : Silver (Ag)
-
Primary Locking Feature : Clean Body
-
Sealable : Yes
Documents
Product Drawings
- CONTACT, SOCKET 8mm DIA SRK SERIES ENG_CD_SRK-PC-080-16X35-XX_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_SRK-PC-080-35-601_B.pdf 3D
- Customer View Model ENG_CVM_CVM_SRK-PC-080-35-601_B.2d_dxf.zip English
- ENG_CVM_CVM_SRK-PC-080-35-601_B.3d_igs.zip English
- ENG_CVM_CVM_SRK-PC-080-35-601_B.3d_stp.zip English
Datasheets & Catalog Pages
- DEUTSCH DTSK Connectors Series Brief ENG_DS_1-1773962-9_A.pdf English
- DEUTSCH DTSK Components Infographic ENG_DS_1-1773963-1_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151039_A1.pdf English
- Product Specification ENG_SS_108-151039_A1.pdf English
- Qualification Test Report ENG_SS_501-151030_A1.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-151039_A.pdf English
