Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

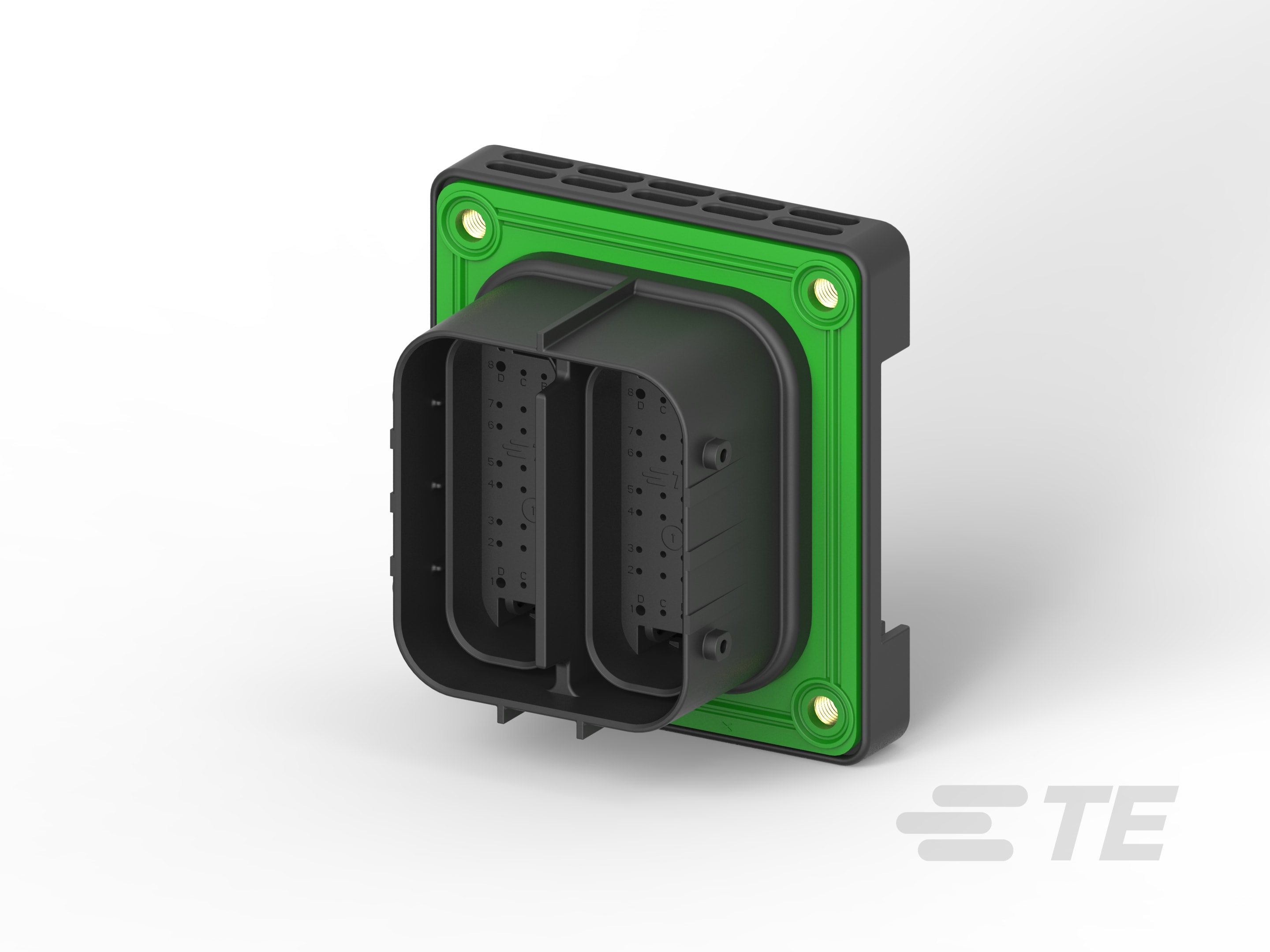

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : Yes

• Number of Rows : 8

• Number of Positions : 64

• Operating Voltage (VDC): 48

• Nominal Voltage Architecture (V): 48

• Operating Voltage (VAC): 48

• Primary Product Color : Black

• Connector & Keying Code : B

• Cable Exit Angle : 180°

• Mating Pin Diameter (mm): 1.02, 1.59

• Mating Pin Diameter (in): .04, .063

• Contact Current Rating (Max) (A): 7.5, 13

• Contact Type : Pin

• Contact Size : Size 20, Size 16

• Connector Mounting Type : Panel Mount

• Terminal Position Assurance : Yes

• Strain Relief : With

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) : 3.4 mm [ .134 in ]

• Housing Material : PBT

• Product Width : 82 mm [ 3.228 in ]

• Connector Height : 75 mm [ 2.953 in ]

• Row-to-Row Spacing (mm): 3.5, 10.85, 11.35

• Row-to-Row Spacing (in): .138, .427, .447

• Compatible Insulation Diameter Range (mm): 1.55 – 2.41, 1.55 – 3.05

• Compatible Insulation Diameter Range (in): .061 – .095, .061 – .12

• Product Length : 56 mm [ 2.205 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• UL Flammability Rating : Not tested

• Degree of Protection : IP68, IP6K9K

• Packaging Method : Box

• Packaging Quantity : 60
