Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

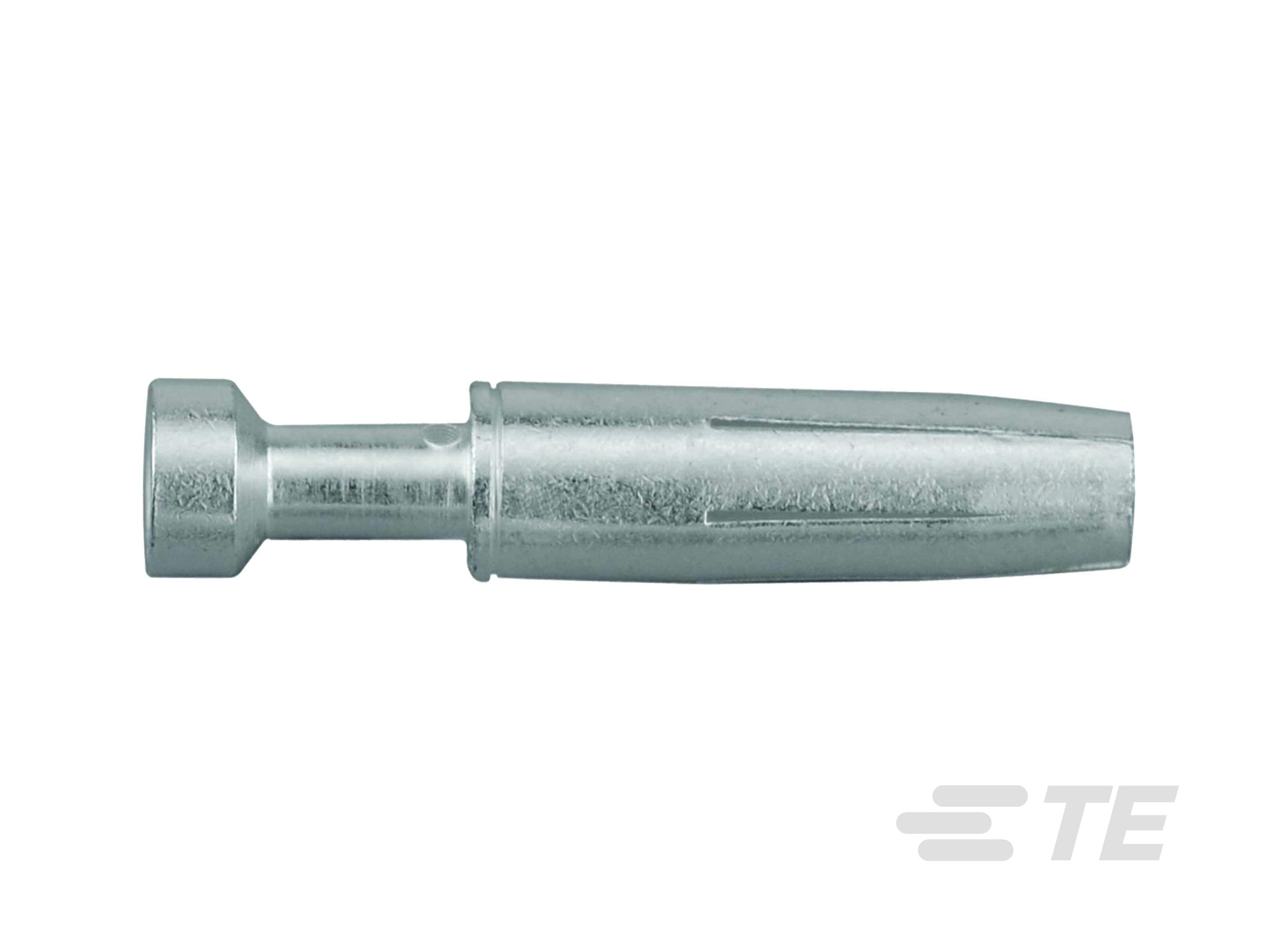

• Contact Length : 22.2 mm [ .874 in ]

• Contact Mating Area Plating Material Thickness : 2 µm [ 78.74 µin ]

• Contact Mating Area Plating Material Finish : Bright

• Barrel Type : Closed

• Contact Orientation : Straight

• Contact Underplating Material : Copper

• Contact Shape & Form : Round

• Contact Type : Socket

• Contact Mating Area Plating Material : Silver

• Wire Contact Termination Area Plating Material : Silver

• Contact Base Material : Copper Alloy

• Contact Current Rating (Max) (A): 16

• Contact Resistance (mΩ): 5

• Operating Voltage (VAC): 250

• Discrete Wire Type : Solid or Stranded

• Sealable : No

• Compatible With Wire Base Material : Copper

• Circuit Application : Power & Signal

• Packaging Quantity : 100

• Packaging Method : Box

• Wire Insulation Support : Without

• Compatible With Wire & Cable Type : Discrete Wire

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire & Cable

• Wire Size (AWG): 18

• Wire Size (mm²): .75

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
