TAA751A5501-080

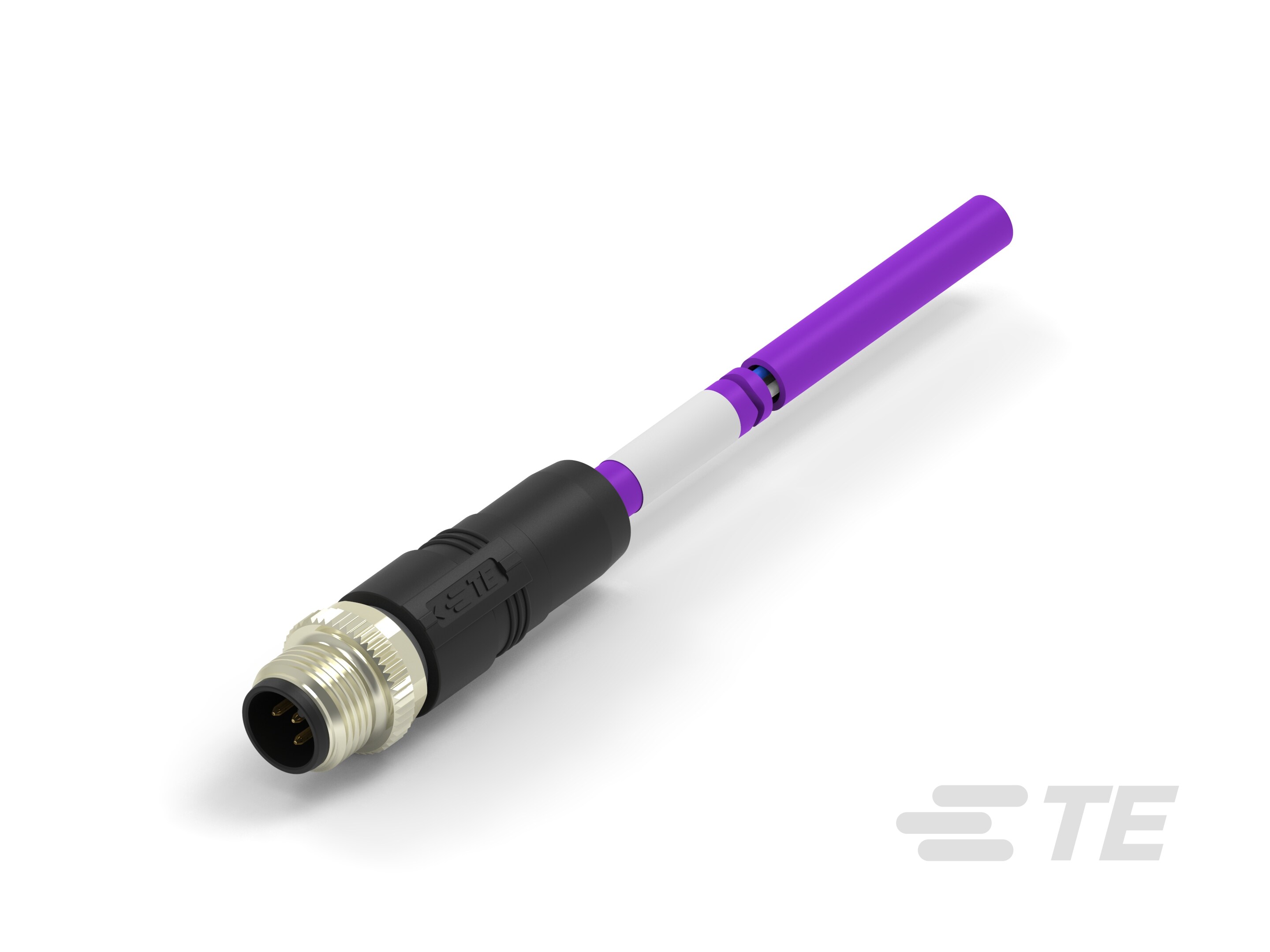

M12 Pigtail Cable Assembly, 5 Position, 8 m, Industrial Fieldbus, DeviceNet, Code A, M12 Plug End A, Shielded, Single Ended, PA66+25GF
TAA751A5501-080
M12 Pigtail Cable Assembly, 5 Position, 8 m, Industrial Fieldbus, DeviceNet, Code A, M12 Plug End A, Shielded, Single Ended, PA66+25GF
- TE Internal #: TAA751A5501-080
- TE Internal Description: M12A5-MS-PUR-8.0M
- All Fieldbus, DeviceNet M12 A-Code 5p PUR (32)
-
Cable Assembly Type : M12 Pigtail
-
Number of Positions : 5
-
Cable Assembly Length (m): 8
-
M8/M12 Application Type : Industrial Fieldbus
-
Industrial Protocols : DeviceNet
Documents
Product Drawings
- M12 A CODE CABLE ASSY,SHIELDED 5P,MS FREE END ENG_CD_TAA751AXXXXXXX_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_TAA751A5501-080_A.pdf 3D
- Customer View Model ENG_CVM_CVM_TAA751A5501-080_A.2d_dxf.zip English
- ENG_CVM_CVM_TAA751A5501-080_A.3d_igs.zip English
- ENG_CVM_CVM_TAA751A5501-080_A.3d_stp.zip English
Datasheets & Catalog Pages
- M8 / M12 Connector System Catalog ENG_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_2402.pdf English
- M8/M12 Cable Assemblies Brochure ENG_DS_3-1773983-2_2101.pdf English
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_SS_108-106140_A8.pdf English
- Qualification Test Report ENG_SS_501-106140-7_A.pdf English
