TAA754A1611-001

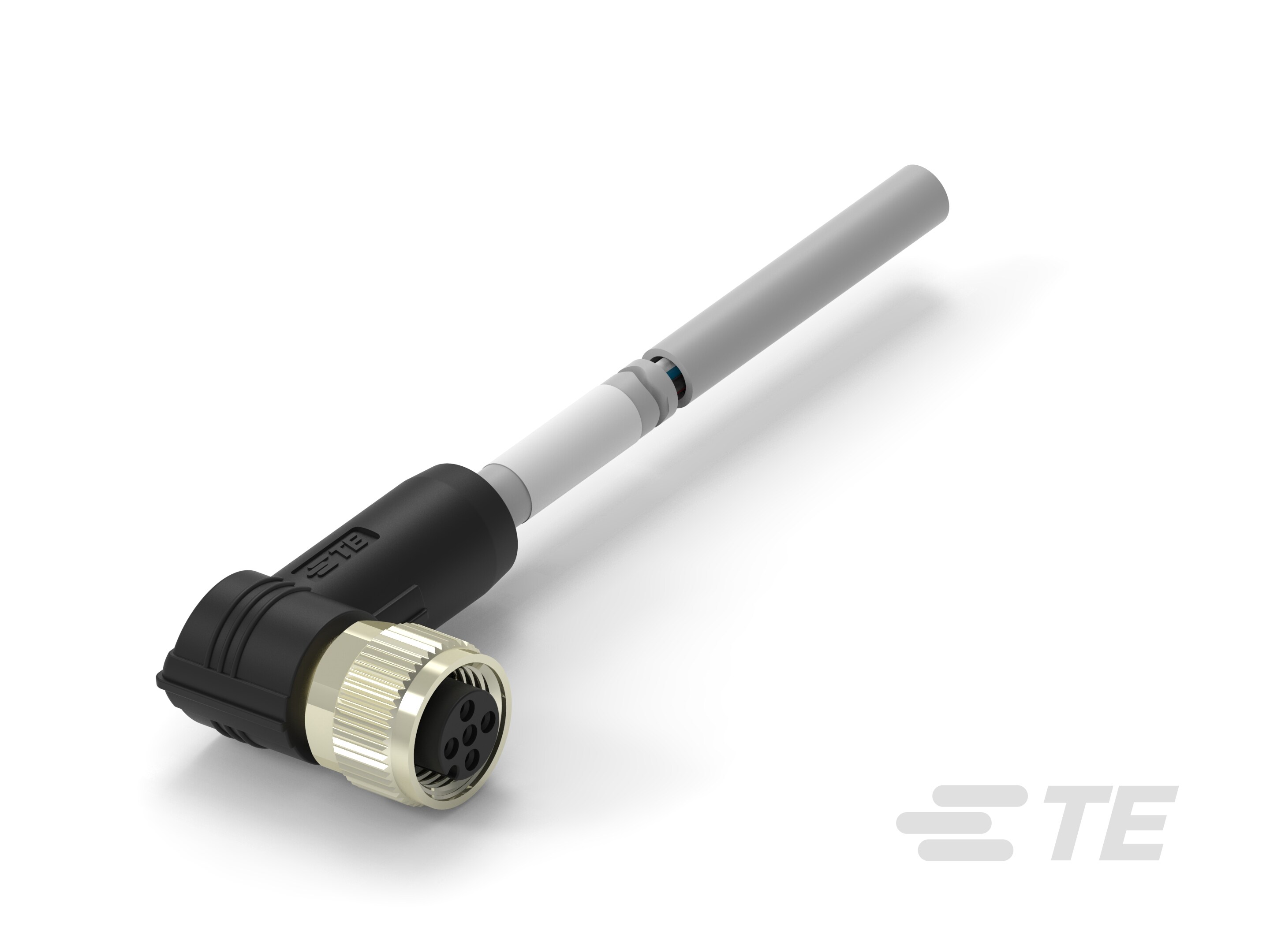

M12 Pigtail Cable Assembly, 5 Position, .5 m, Industrial Fieldbus, DeviceNet, Code A, M12 Socket, Shielded, Single Ended, PA66+25GF
TAA754A1611-001
M12 Pigtail Cable Assembly, 5 Position, .5 m, Industrial Fieldbus, DeviceNet, Code A, M12 Socket, Shielded, Single Ended, PA66+25GF
- TE Internal #: TAA754A1611-001
- TE Internal Description: M12A5-FR-PVC-0.5M
- All Fieldbus,DeviceNet M12 A-Code 5p PVC (32)
-
Packaging Method : Bag
-
Wire Size (AWG): 22 – 24
-
Cable Assembly Configuration : Single Ended
-
Jacket Material : PVC
-
Housing Material : PA66+25GF
Documents
Product Drawings
- M12 A CODE CABLE ASSY,SHIELDED 5P,FR FREE END ENG_CD_TAA754AXXXXXXX_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_TAA754A1611-001_A.pdf 3D
- Customer View Model ENG_CVM_CVM_TAA754A1611-001_A.2d_dxf.zip English
- ENG_CVM_CVM_TAA754A1611-001_A.3d_igs.zip English
- ENG_CVM_CVM_TAA754A1611-001_A.3d_stp.zip English
Datasheets & Catalog Pages
- M8 / M12 Connector System Catalog ENG_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_2402.pdf English
- M8/M12 Cable Assemblies Brochure ENG_DS_3-1773983-2_2101.pdf English
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_ _108-106140_A7.pdf English
- Qualification Test Report ENG_SS_501-106140-7_A.pdf English
