TB1147D4722-150

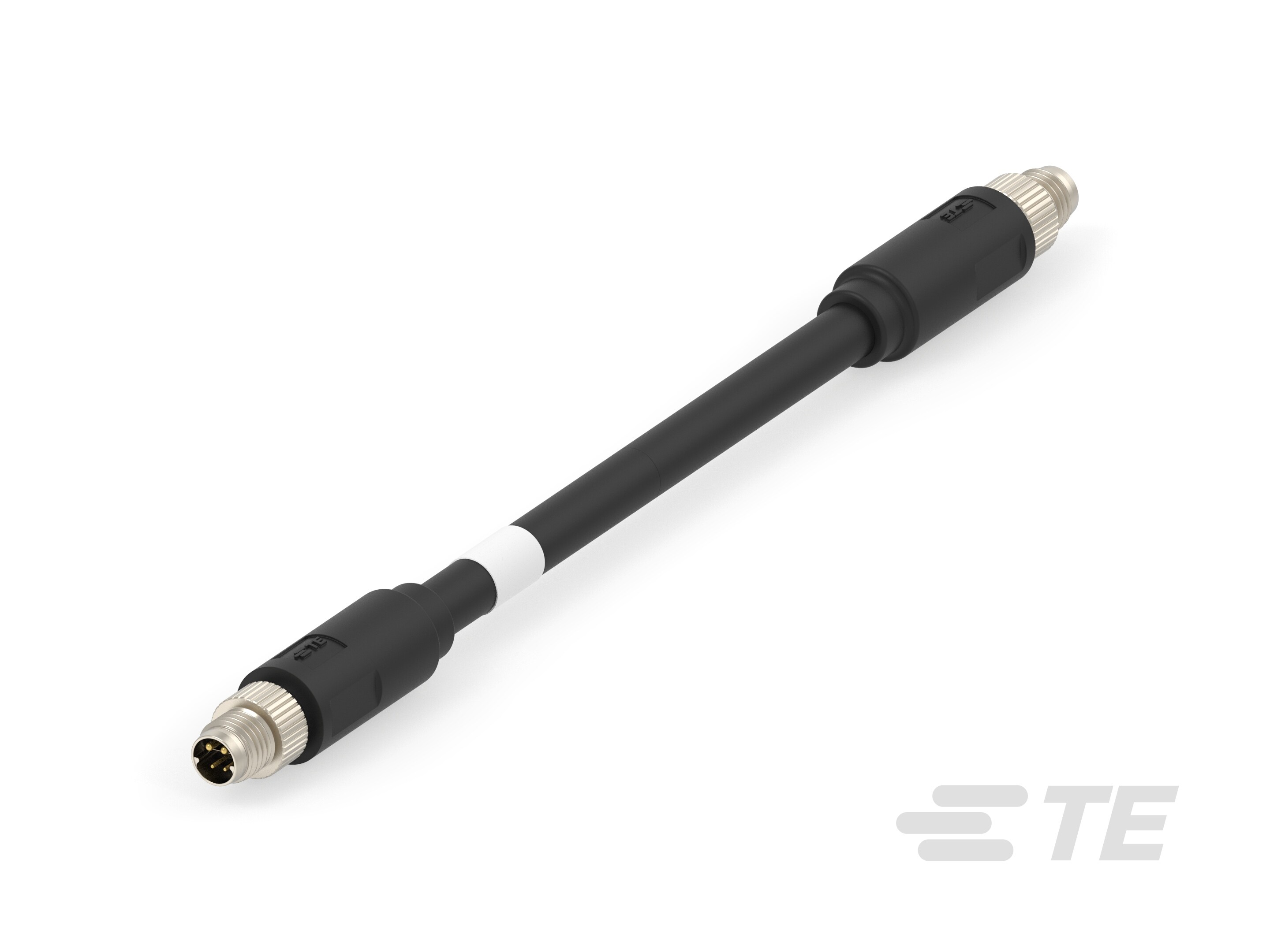

M8 Pigtail Cable Assembly, 4 Position, 15 m, Sensor/Actuator, Single Pair Ethernet (SPE), M8 Plug End A, Shielded, Double Ended, Nylon
TB1147D4722-150
M8 Pigtail Cable Assembly, 4 Position, 15 m, Sensor/Actuator, Single Pair Ethernet (SPE), M8 Plug End A, Shielded, Double Ended, Nylon
- TE Internal #: TB1147D4722-150
- TE Internal Description: RPC-M8-MS-MS-4CON-P-15SH
- All Single Pair Ethernet: IP67 M8 Cable, Hybrid Board Receptacle (26)
-
Cable Assembly Type : M8 Pigtail
-
Number of Positions : 4
-
Cable Assembly Length (m): 15
-
M8/M12 Application Type : Sensor/Actuator
-
Industrial Protocols : Single Pair Ethernet (SPE)
Documents
Product Drawings
- SPE T1 INDUSTRIAL M8 HYBRID IP67 CABLE ASSEMBLY,MALE STRAIGHT,DOUBLE END ENG_CD_TB1147D4722XXX_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_TB1147D4722-150_A.pdf 3D
- Customer View Model ENG_CVM_CVM_TB1147D4722-150_A.2d_dxf.zip English
- ENG_CVM_CVM_TB1147D4722-150_A.3d_igs.zip English
- ENG_CVM_CVM_TB1147D4722-150_A.3d_stp.zip English
Datasheets & Catalog Pages
- Catalog-Single Pair Ethernet M8 Hybrid Board Receptacle IP67 and Single Pair Ethernet M8 Hybrid Cordset ENG_CS_cs-spe-m8-board-cordset-ip67_2401.pdf English
Product Specifications
- Application Specification ENG_SS_114-137144-1_Rev.A_A1.pdf English
- ENG_SS_114-137144-1_A3.pdf English
- Product Specification ENG_SS_108-137521_B.pdf English
- Qualification Test Report ENG_SS_501-137521_A1.pdf English
