TB114CD4722-004

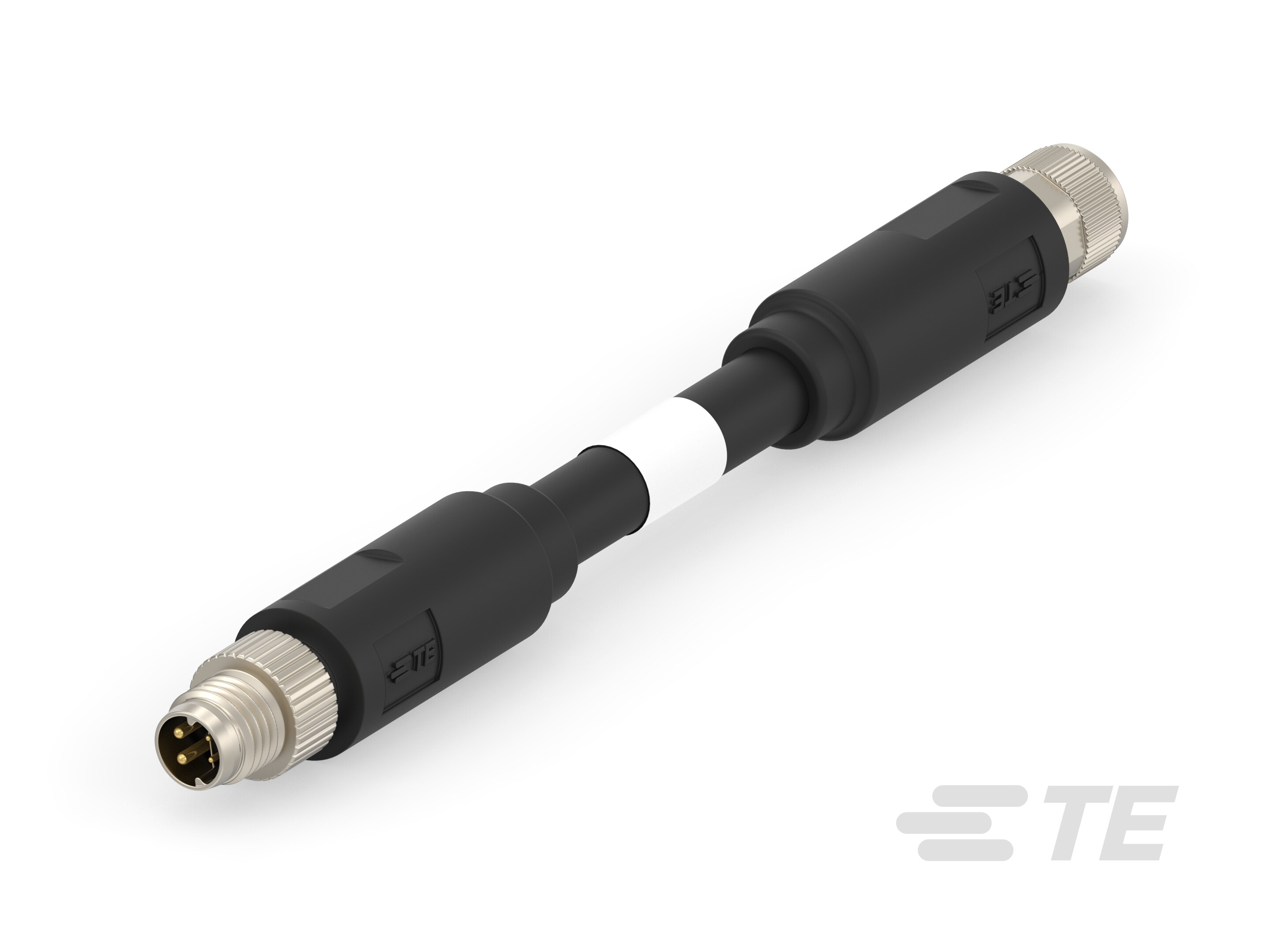

M8 Cable Assembly, 4 Position, 4.05 m, Sensor/Actuator, Single Pair Ethernet (SPE), M8 Socket End A, M8 Plug End B, Shielded, Double Ended, Nylon
TB114CD4722-004
M8 Cable Assembly, 4 Position, 4.05 m, Sensor/Actuator, Single Pair Ethernet (SPE), M8 Socket End A, M8 Plug End B, Shielded, Double Ended, Nylon
- TE Internal #: TB114CD4722-004
- TE Internal Description: RPC-M8-MS-FS-4CON-P-3.0SH
- All Single Pair Ethernet: IP67 M8 Cable, Hybrid Board Receptacle (26)
-
Cable Assembly Type : M8
-
Number of Positions : 4
-
Cable Assembly Length (m): 4.05
-
M8/M12 Application Type : Sensor/Actuator
-
Industrial Protocols : Single Pair Ethernet (SPE)
Documents
Product Drawings
- SPE M8 HYBRID CABLE ASSEMBLY FEMALE TO MALE, STRAIGHT ENG_CD_TB114CD4722XXX_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_TB114CD4722-004_A.pdf 3D
- Customer View Model ENG_CVM_CVM_TB114CD4722-004_A.3d_stp.zip English
- ENG_CVM_CVM_TB114CD4722-004_A.2d_dxf.zip English
- ENG_CVM_CVM_TB114CD4722-004_A.3d_igs.zip English
Datasheets & Catalog Pages
- Catalog-Single Pair Ethernet M8 Hybrid Board Receptacle IP67 and Single Pair Ethernet M8 Hybrid Cordset ENG_CS_cs-spe-m8-board-cordset-ip67_2401.pdf English
Product Specifications
- Application Specification ENG_SS_114-137144-1_A3.pdf English
- Product Specification ENG_SS_108-137521_B.pdf English
- Qualification Test Report ENG_SS_501-137521_A1.pdf English
