W12P-P004

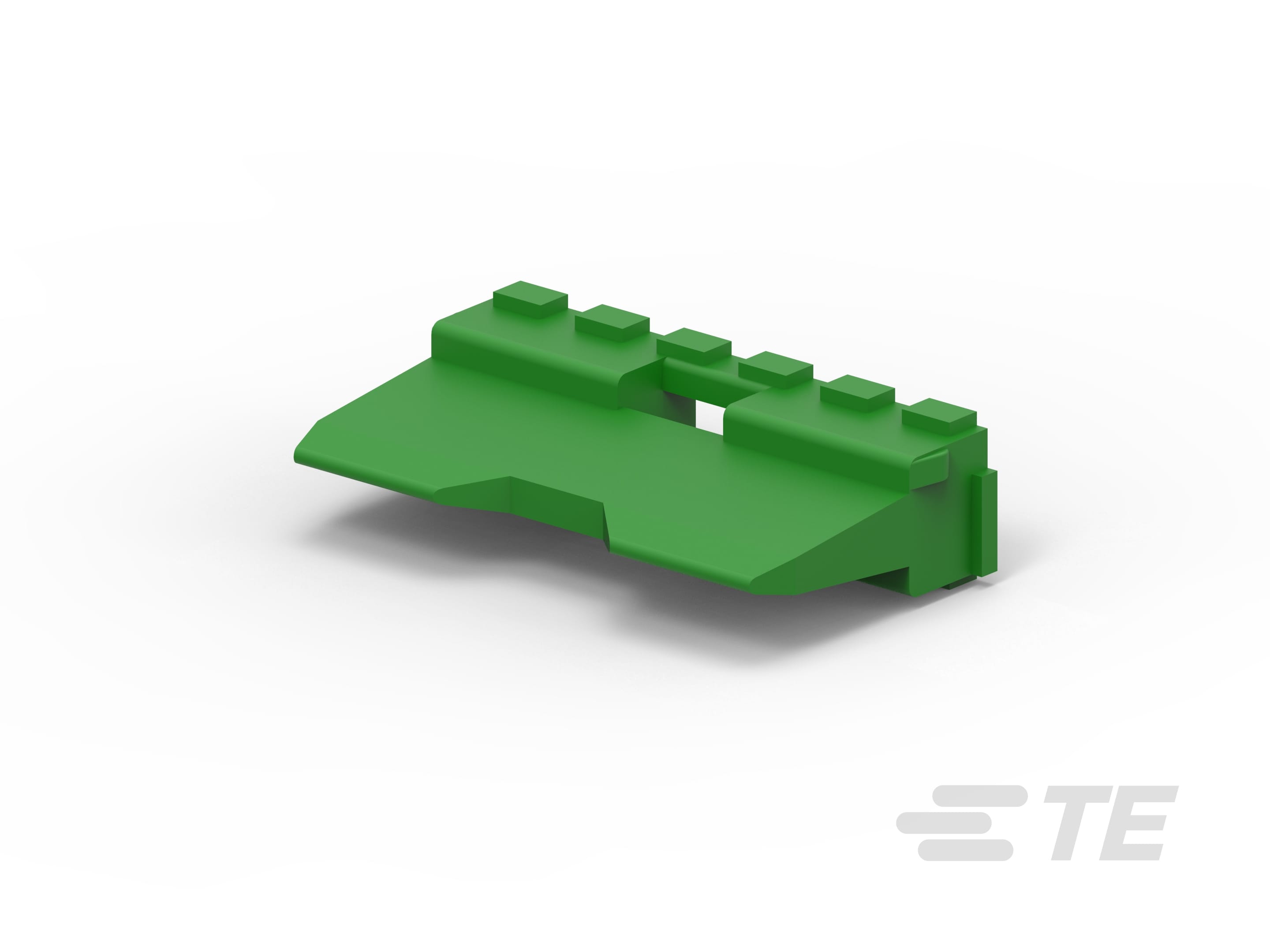

TPA (Terminal Position Assurance), Green, PBT GF, 12 Position, DEUTSCH DT, Automotive Connector Locks & Position Assurance
W12P-P004
TPA (Terminal Position Assurance), Green, PBT GF, 12 Position, DEUTSCH DT, Automotive Connector Locks & Position Assurance
-
- DEUTSCH
- DEUTSCH DT
- TE Internal #: W12P-P004
- TE Internal Description: WEDGE LOCK
- Alias #: W12P-P004-L W12P-P004-LS W12P-P004-MS
- All Wedgelocks: DEUTSCH DT (58)
-
Packaging Method : Package
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Primary Product Color : Green
-
Primary Product Material : PBT GF
-
Connector & Contact Retention Accessory Type : TPA (Terminal Position Assurance)
Documents
Product Drawings
- WEDGE LOCK FOR RECEPTACLE DT SERIES ENG_CD_W12P-P004_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_W12P-P004_B.pdf 3D
- Customer View Model ENG_CVM_CVM_W12P-P004_B.2d_dxf.zip English
- ENG_CVM_CVM_W12P-P004_B.3d_igs.zip English
- ENG_CVM_CVM_W12P-P004_B.3d_stp.zip English
Datasheets & Catalog Pages
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151009_C3.pdf English
- Product Specification ENG_SS_108-151009_E.pdf English
- Qualification Test Report ENG_SS_501-151032_A.pdf English
