W3P-1939

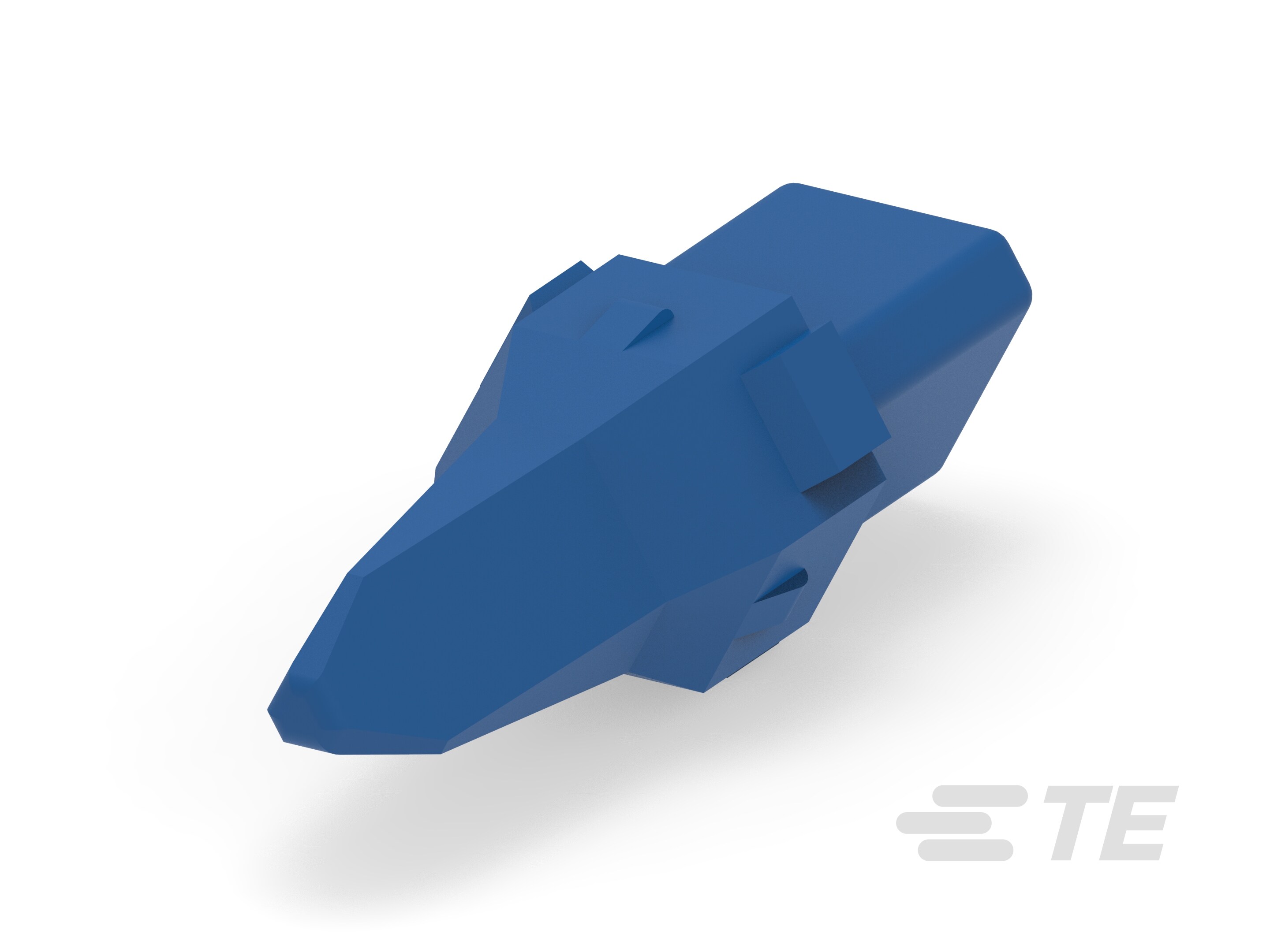

Secondary Lock, Blue, PBT, 3 Position, -55 – 125 °C [-67 – 257 °F], DEUTSCH DT, Automotive Connector Locks & Position Assurance
W3P-1939
Secondary Lock, Blue, PBT, 3 Position, -55 – 125 °C [-67 – 257 °F], DEUTSCH DT, Automotive Connector Locks & Position Assurance
-
- DEUTSCH
- DEUTSCH DT
- TE Internal #: W3P-1939
- TE Internal Description: WEDGE LOCK, 3P, REC, BLU, J1939, DT
- Alias #: ZPF000000000131435
- All Wedgelocks: DEUTSCH DT (58)
-
Packaging Method : Box
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Primary Product Color : Blue
-
Primary Product Material : PBT
-
Connector & Contact Retention Accessory Type : Secondary Lock
Documents
Product Drawings
- WEDGE LOCK ENG_CD_W3P-1939_B.pdf English
- WEDGE LOCK English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_W3P-1939_99.pdf 3D
- Customer View Model ENG_CVM_CVM_W3P-1939_99.2d_dxf.zip English
- ENG_CVM_CVM_W3P-1939_99.3d_igs.zip English
- ENG_CVM_CVM_W3P-1939_99.3d_stp.zip English
Datasheets & Catalog Pages
- TERMINALS AND CONNECTORS ENG_CS_TS_ICT_T_C_CAT_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151009_C3.pdf English
- Product Specification ENG_SS_108-151009_E.pdf English
- Qualification Test Report ENG_SS_501-151032_A.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_20090527_C1_G2.pdf English
