Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

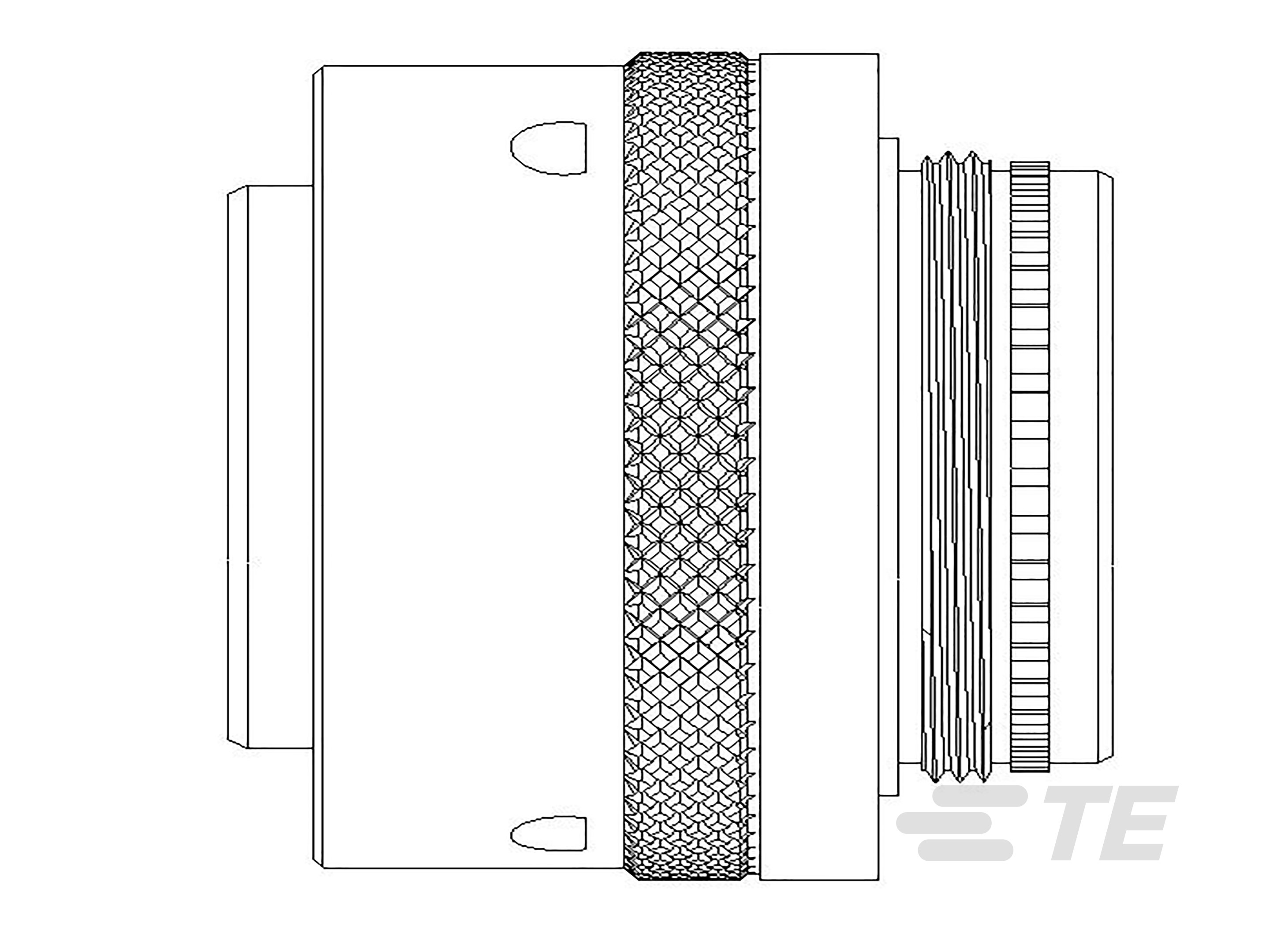

• Assembly Type : Electrical Connector

• Connector Product Type : Connector Assembly

• Connector System : Wire-to-Wire

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Circular Connector Type : Plug

• Shell Type : Plug

• Factory Installed Backshell : No

• Keying & Polarized Position Locations : 1

• Number of Positions : 27

• Number of Power Positions : 27

• Number of Signal Positions : 27

• Contacts Preloaded : No

• Operating Voltage (VDC): 850

• Operating Voltage (VAC): 600

• Feedthrough Type : No

• Fluid Type : Coolanol 25, Isopropyl Alcohol, M2-V, Methyl Alcohol, MIL-DTL-5624 (JP-5), MIL-PRF-23699, MIL-PRF-5606, MIL-PRF-7808

• Environmental Protection Type : Elastomer Sealed

• Environmental Protection : Yes

• Entry Style : Rear Insertion

• Shell Plating Material : Nickel

• Shell Base Material : Aluminum

• Circular Connector Insulation Material Type : Hard Dielectric/Silicone

• Hermetically Sealed : No

• Contact Quantity (Size 20) : 27

• Contact Current Rating (Max) (A): 7.5

• Reverse Gender : No

• Contact Layout Arrangement : E02 (16-27)

• Circular Connector Contact Type : Pin

• Mating Retention Type : Bayonet

• Panel Mount Feature : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Polarization Code : 1

• Mating Alignment Type : Keyed

• Mating Retention : With

• Circular Connector Shell Size : 16

• Alignment Keyed : Clocking

• Assembly Length : 32.84 mm [ 1.292 in ]

• Compatible Insulation Diameter Range : 1.02 – 1.88 mm [ .04 – .074 in ]

• Wire Size (AWG): 20 – 24

• Wire Size (mm²): .2 – .52

• Operating Temperature Range : -65 – 200 °C [ -85 – 392 °F ]

• Durability Rating (Cycles): 500

• Circuit Application : Power & Signal

• Shielded : Yes

• Packaging Quantity : 1
