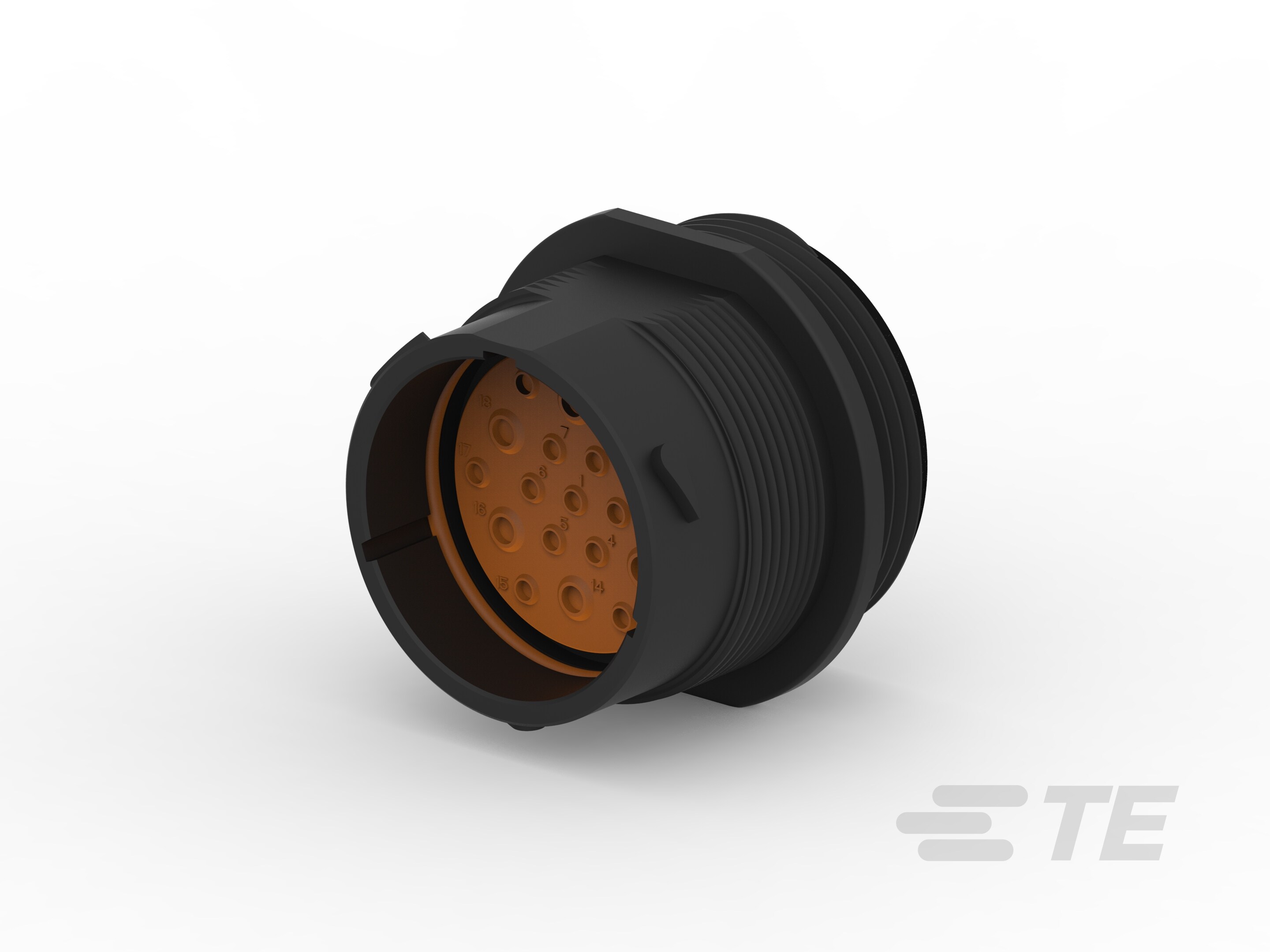

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Circular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : Yes

• Connector Seal Code : E Seal

• Number of Positions : 19

• Connector Modification : Wide Threaded Adapter

• Blank Cavity Position : 0

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Mating Pin Diameter (mm): 1.59, 2.39

• Mating Pin Diameter (in): .063, .094

• Contact Current Rating (Max) (A): 13, 25

• Contact Type : Pin

• Contact Size : Size 16, Size 12

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : No

• Strain Relief : Add By Accessory

• Mating Alignment Type : Guide Post

• Mating Alignment : With

• Housing Material : PA GF

• Product Width : 50.8 mm [ 2 in ]

• Connector Height : 47.63 mm [ 1.875 in ]

• Compatible Insulation Diameter Range (mm): 1.35 – 3.05, 2.46 – 4.01

• Compatible Insulation Diameter Range (in): .053 – .12, .097 – .158

• Product Length : 41.53 mm [ 1.635 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• IP Rating : IP67

• UL Flammability Rating : 20mm Flame Test per Standard UL-94

• Packaging Method : Box

• Packaging Quantity : 1
