Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

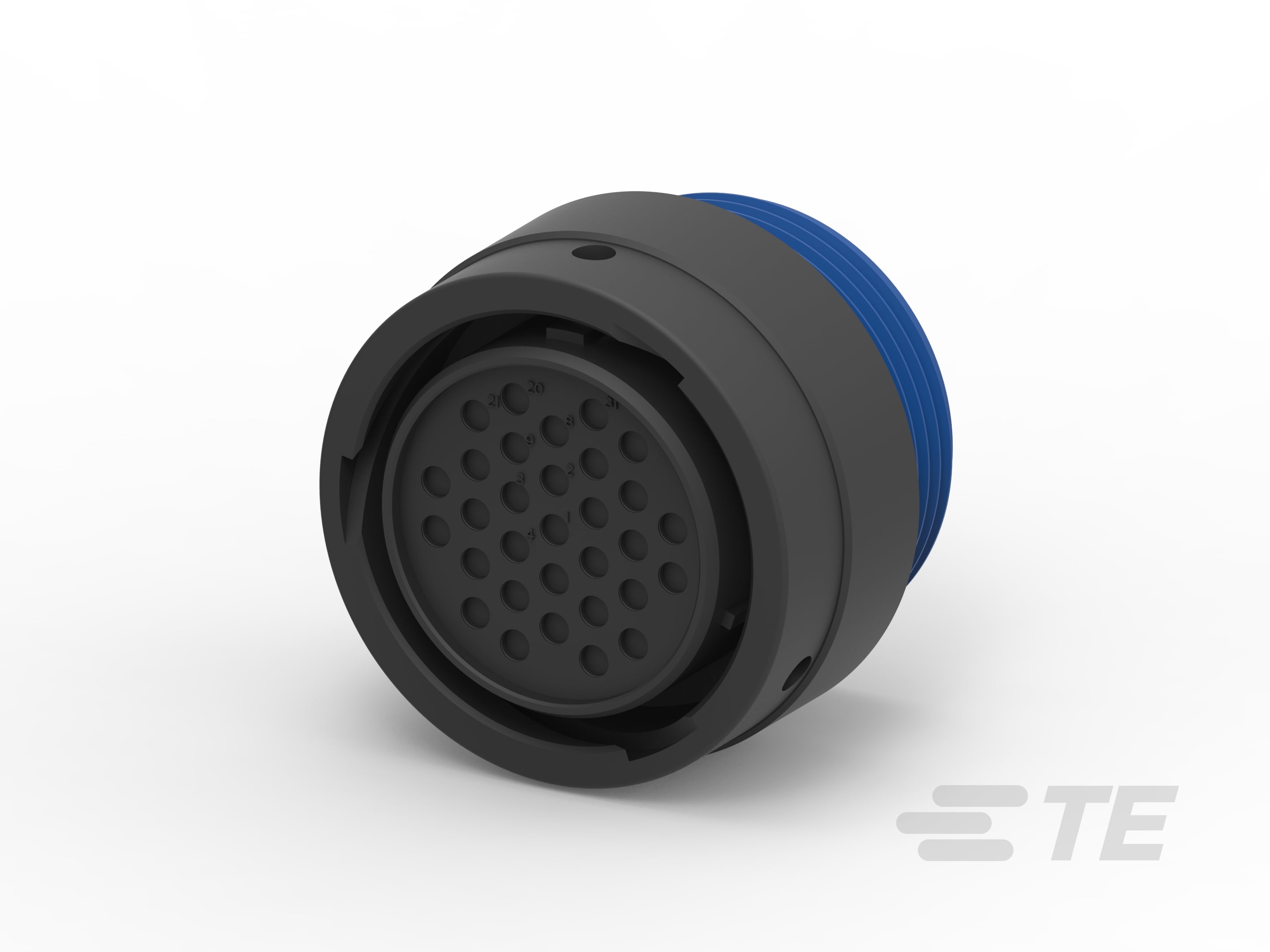

• Connector Seal Code : E Seal

• Connector Modification : Wide Threaded Adapter

• Blank Cavity Position : 0

• Number of Positions : 31

• Connector Shape : Circular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Socket

• Contact Size : Size 16

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Nominal Voltage Architecture (V): 250

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Guide Slot

• Terminal Position Assurance : No

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Packaging Quantity : 1

• Connector Height : 49.53 mm [ 1.95 in ]

• Product Length : 38.3 mm [ 1.508 in ]

• Product Width : 49.53 mm [ 1.95 in ]

• Compatible Insulation Diameter Range : 1.35 – 2.69 mm [ .053 – .106 in ]

• UL Flammability Rating : 20mm Flame Test per Standard UL-94

• IP Rating : IP67

• Housing Material : PA GF

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
