Fast, Secure IDC Connections for LED & Non-LED Lighting Applications

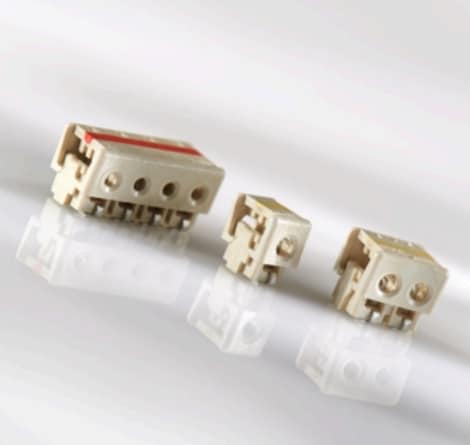

TE Connectivity’s (TE) IDC Poke-In Wire connector series are insulation displacement (IDC) connectors that are available in surface mount and thru-hole for Wire-to-Board connectivity. These connectors are designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. These connectors use TE Connectivity (TE) proven insulation displacement technology to prove a robust, stable electrical and mechanical power connection to single or multiple printed circuit boards.
Product Features
IDC Poke-In Wire Connector Series
Available In Surface Mount and Thru-Hole For Wire-To-Board Connectivity
| Positions | 1, 2, 3, 4 | Operating Temperature (°C) | -40°C to 105°C |
| Voltage Rating | 400 VAC / 400 VDC |
Wire Size (AWG) | 8A with 18 AWG |
| UL Rating | UL94 V-O | Colors | 18 AWG - Yellow, 20 AWG - BLue, 22 AWG - Green, 24 AWG - Red |
| Dielectric Strength | 1500 VAC |
Contact | Tin over nickel plated copper alloy |
Key Benefits
IDC Poke-In Wire Connector Series
- Insulation displacement eliminates the need to pre-strip wire insulation prior to “tool-less” termination
- Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
- Closed end versions are used in single discrete wire lead electrical connections
- Feed thru versions are used in multiple board “daisy chaining” electrical connections
