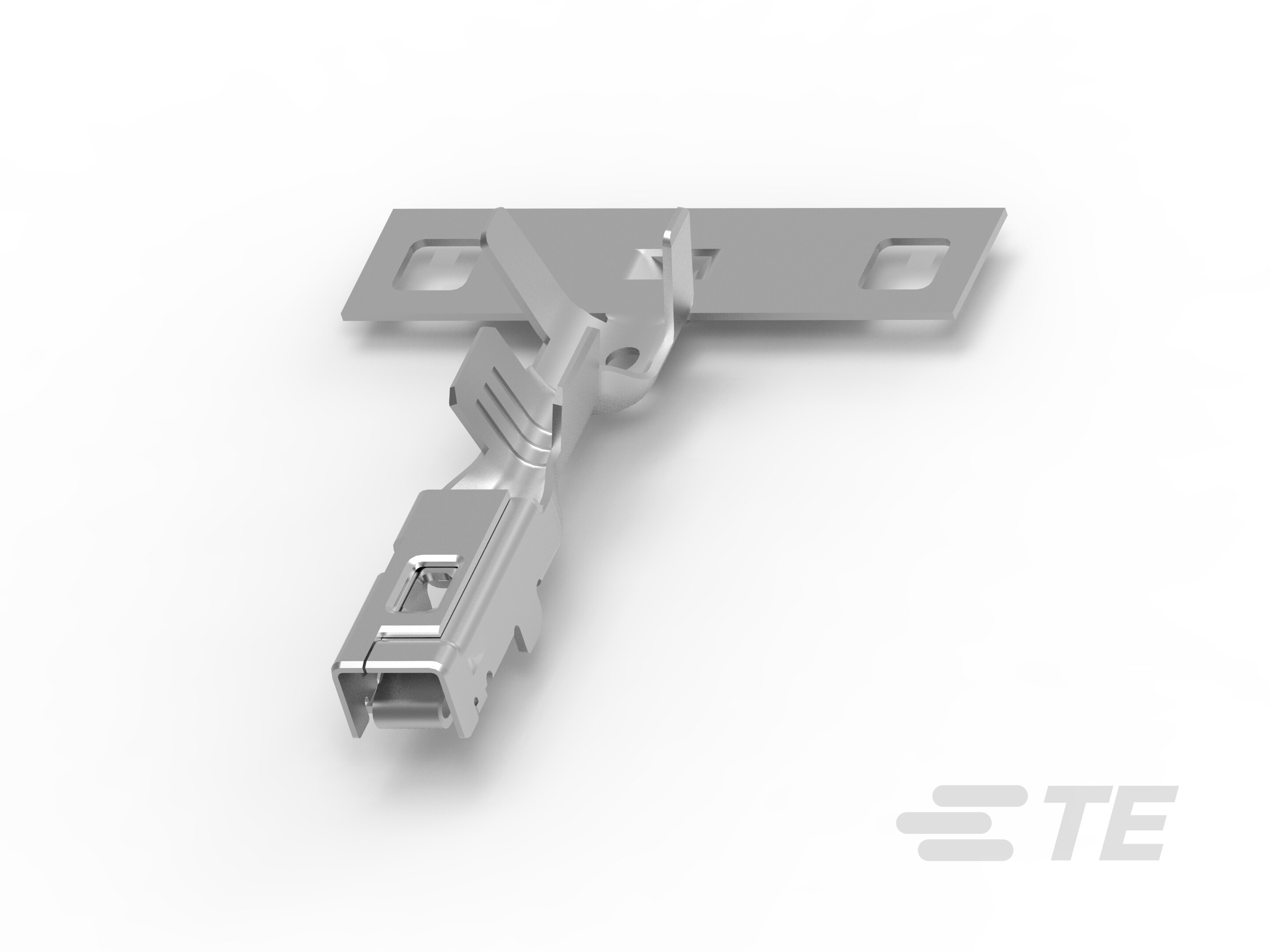

Receptacle Terminal, 16 AWG, 1.25 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), Sealable, .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
1-1326032-0
Receptacle Terminal, 16 AWG, 1.25 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), Sealable, .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
-
- 1.5/2.8 Connector System
- TE Internal #: 1-1326032-0
- TE Internal Description: 2.8MM RECP,SEAL,16AWG,REV REEL
- All 1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB (37)
-
Terminal Type : Receptacle
-
Wire Size (AWG): 16
-
Wire Size (mm²): 1.25
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- 2.8mm RECEPTACLE, SEALED ENG_CD_1326032_E1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1326032-0_K.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1326032-0_K.2d_dxf.zip English
- ENG_CVM_CVM_1-1326032-0_K.3d_igs.zip English
- ENG_CVM_CVM_1-1326032-0_K.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13013_F.pdf English
