1-1558741-2

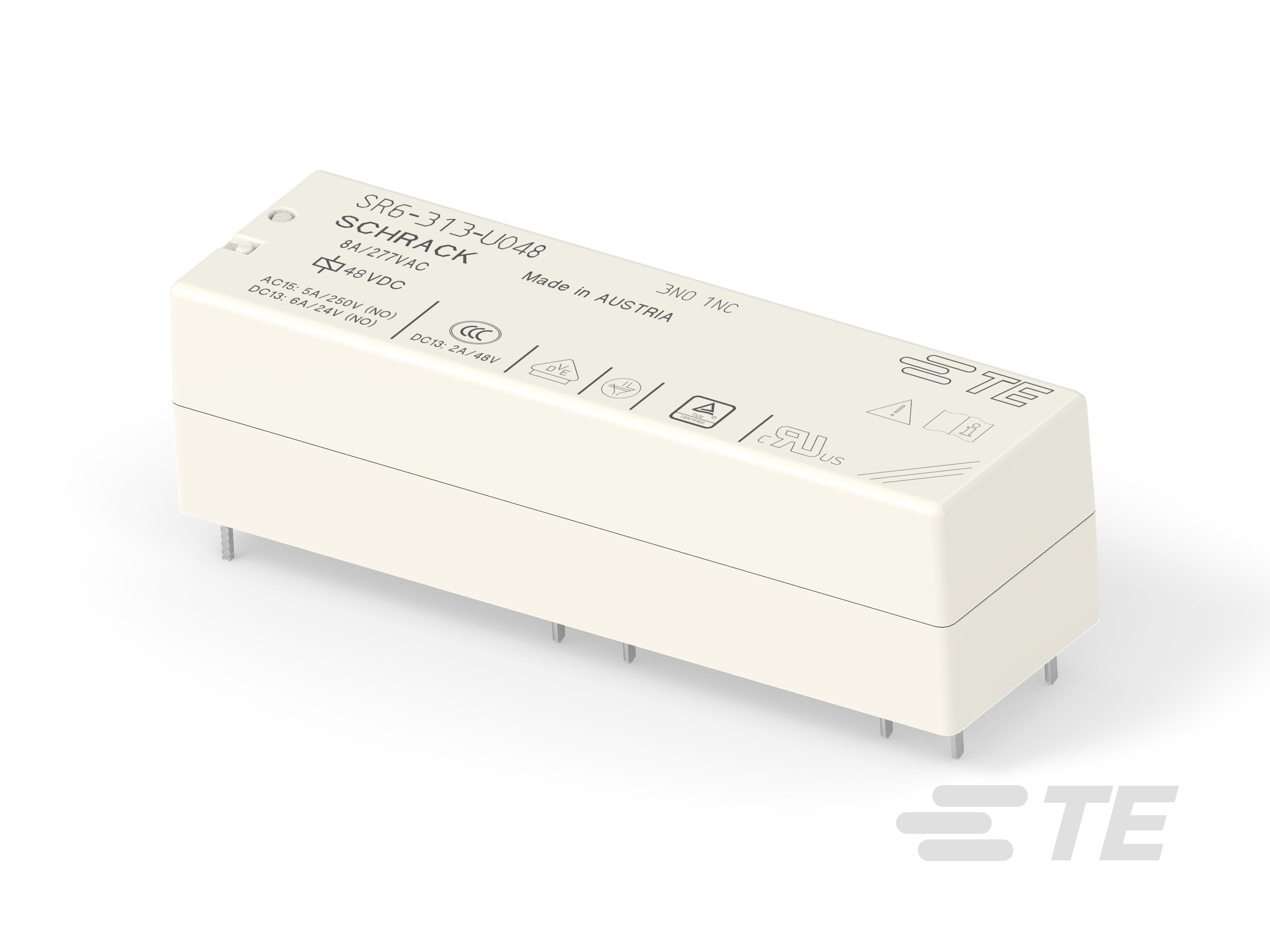

Force-Guided Relay, Monostable, 3A (NO) + 1B (NC), 8 A Contact Rating, 48 VDC Coil Voltage, 277 VAC Contact Voltage, .55 W Coil Power, SCHRACK SR6
1-1558741-2
Force-Guided Relay, Monostable, 3A (NO) + 1B (NC), 8 A Contact Rating, 48 VDC Coil Voltage, 277 VAC Contact Voltage, .55 W Coil Power, SCHRACK SR6
-
- SCHRACK
- SCHRACK SR6
- TE Internal #: 1-1558741-2
- TE Internal Description: SR6-313-U048
- All Force Guided Relay with 4 high insulated contacts (9)
-
Relay & Contactor Type : Force-Guided Relay
-
Coil Magnetic System : Monostable
-
Contact Arrangement : 3A (NO) + 1B (NC)
-
Contact Current Rating (A): 8
-
Coil Voltage Rating (VDC): 48
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1558741-2_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1558741-2_A1.3d_igs.zip English
- ENG_CVM_CVM_1-1558741-2_A1.3d_stp.zip English
- ENG_CVM_CVM_1-1558741-2_A1.2d_dxf.zip English
Datasheets & Catalog Pages
- Force Guided Relay SR6 Next Generation ENG_DS_SR6_Next_Generation_6.pdf English
Product Specifications
- Definitions General Purpose Relays ENG_SS_Definitions_Relays_2.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E214025_20220407_C1_1.pdf English
- TUV Certificate ENG_AAD_TUV_CERT_968_FSP_2469_C1_2.pdf English
- CCC Certificate ENG_AAD_CCC_CERT_2022000303000046_C1_2.pdf English
