Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

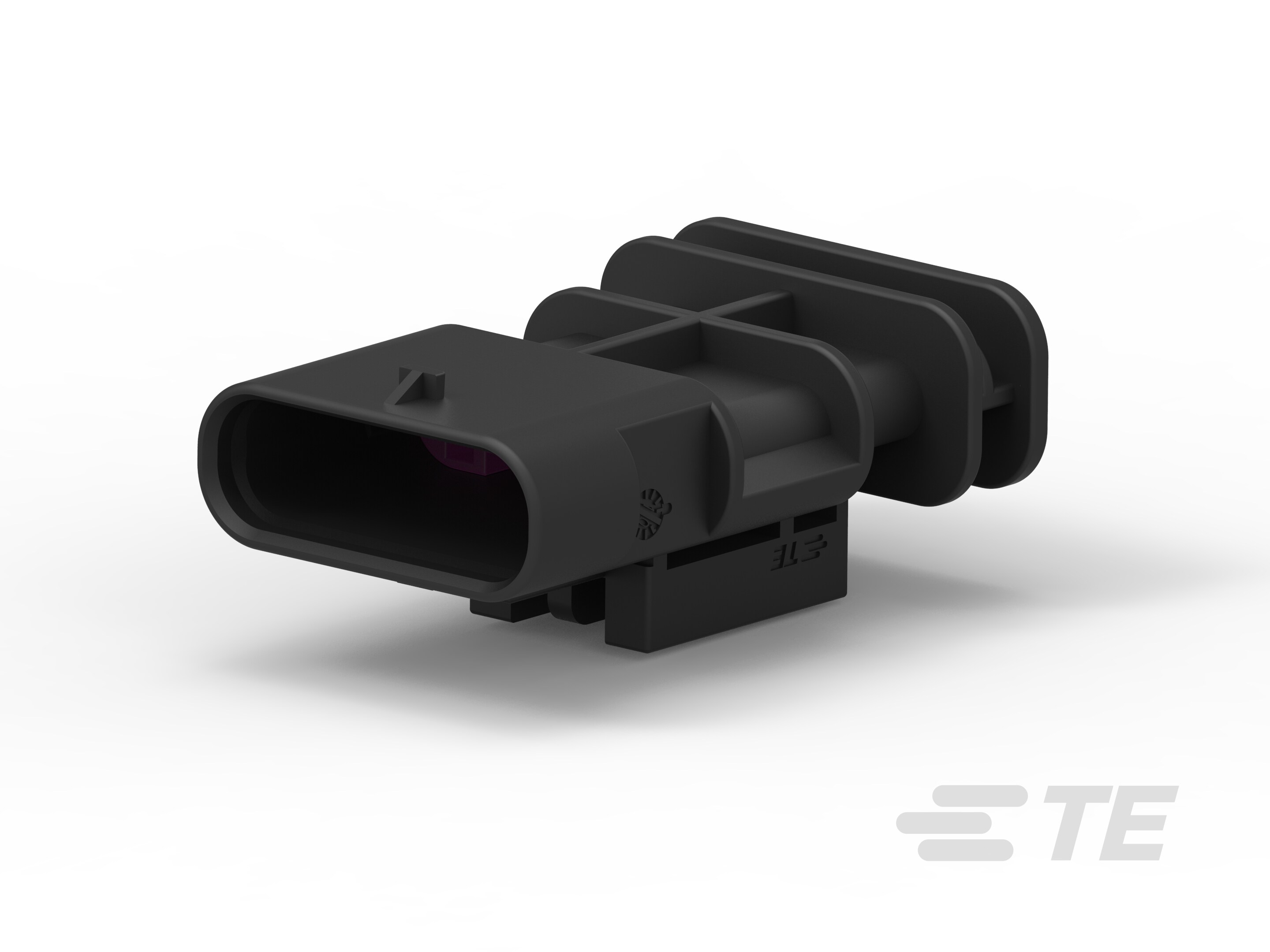

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : On the Terminal

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 1

• Number of Positions : 5

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Operating Voltage (VAC): 12

• Primary Product Color : Black

• Connector & Keying Code : A

• Cable Exit Angle : 180°

• Contact Current Rating (Max) (A): 24

• Contact Type : Tab

• Mating Tab Width : 1.2 mm [ .047 in ]

• Contact Size : 1.2mm

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) : 4 mm [ .157 in ]

• Housing Material : PBT GF

• Product Width : 9.9 mm [ .389 in ]

• Connector Height : 44 mm [ 1.73 in ]

• Product Length : 28.2 mm [ 1.11 in ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257

• Circuit Application : Power

• Compatible With Agency/Standards Products : USCAR-2

• IP Rating : IPX9K

• UL Flammability Rating : UL 94HB

• Packaging Method : Box

• Packaging Quantity : 750
