BMC-Q2CY0030H

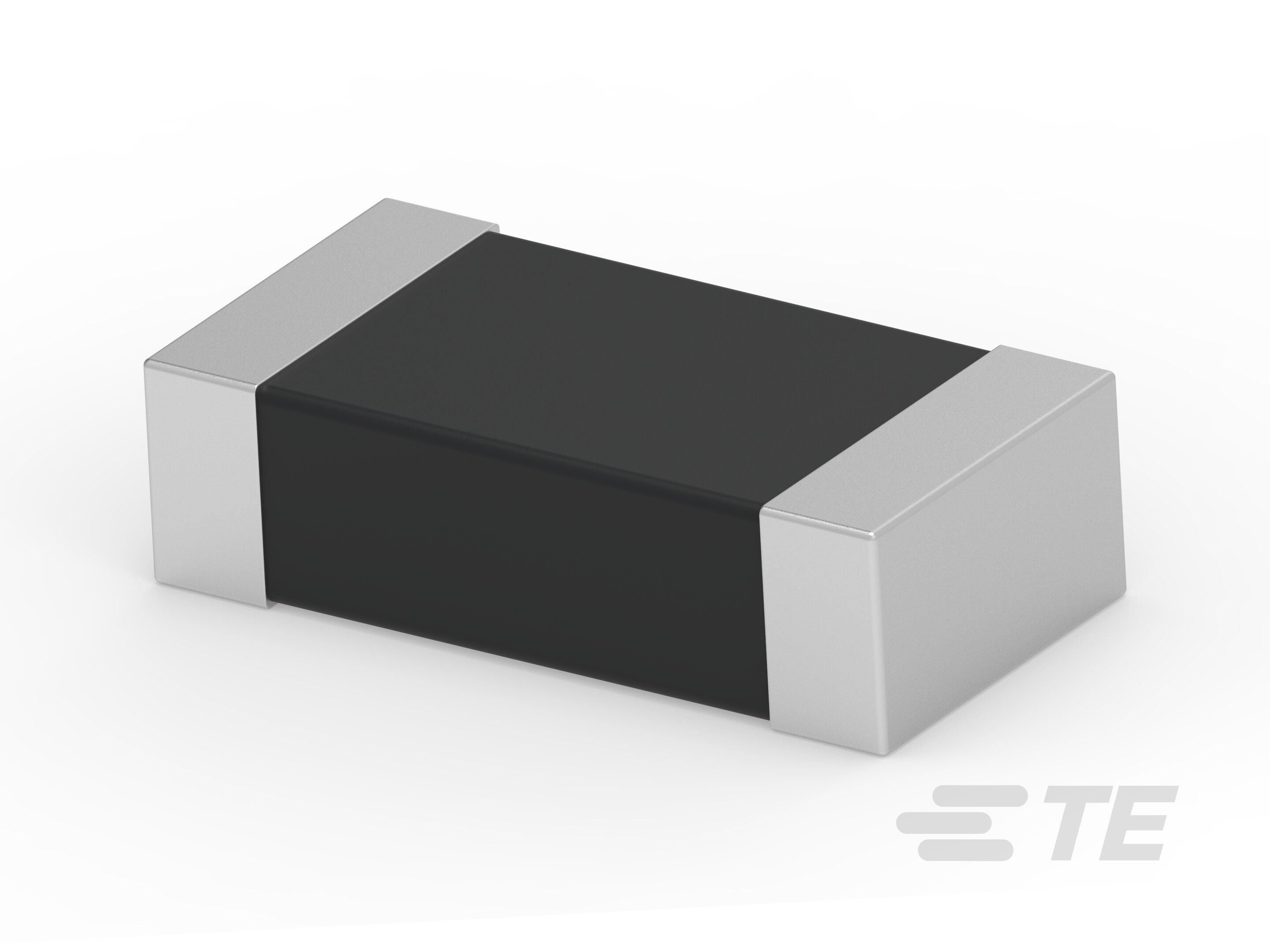

30 ohm Multilayer Ferrite Bead, 3000 mA, .07 ohm DC Resistance, 1204, Length 3.2 mm [.125 in], Width 1.6 mm [.062 in], Sigma BMC-Q
BMC-Q2CY0030H
30 ohm Multilayer Ferrite Bead, 3000 mA, .07 ohm DC Resistance, 1204, Length 3.2 mm [.125 in], Width 1.6 mm [.062 in], Sigma BMC-Q
-
- Sigma
- Sigma BMC-Q
- TE Internal #: 1-2176745-0
- TE Internal Description: BMC-Q 1204 30R 25% Tol. High Current
- All Automotive Grade Multilayer Chip Beads (192)
-
Operating Temperature Range (°C): -40 – 125
-
Moisture Sensitivity Level : 1
-
Passive Component Tolerance (%): 25
-
Product Width : 1.6 mm [ .062 in ]
-
Shelf Life : 1 Year
Documents
Product Drawings
- AUTOMOTIVE GRADE MULTILAYER CHIP BEADS TYPE BMC-Q 1204 HIGH CURRENT SERIES ENG_CD_2176745_BA.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2176745-0_BA.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2176745-0_BA.2d_dxf.zip English
- ENG_CVM_CVM_1-2176745-0_BA.3d_igs.zip English
- ENG_CVM_CVM_1-2176745-0_BA.3d_stp.zip English
Datasheets & Catalog Pages
- Automotive Grade Multilayer Chip Beads Type BMC-Q Series ENG_DS_1773178-3_A2.pdf English
