1-320551-3

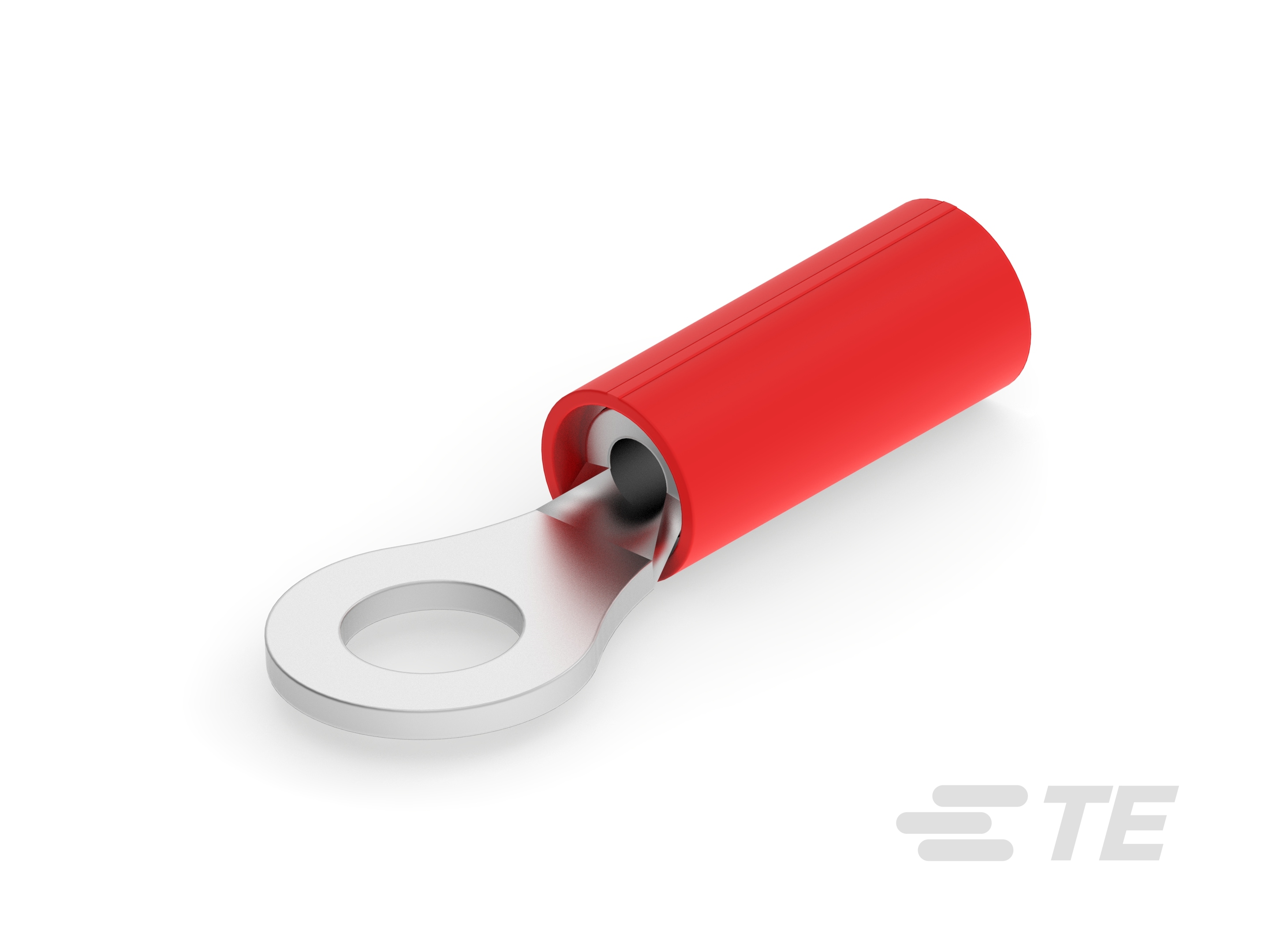

Closed Ring Tongue Terminal, 20 AWG, M4 Stud Size, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
1-320551-3
Closed Ring Tongue Terminal, 20 AWG, M4 Stud Size, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
-
- PIDG
- TE Internal #: 1-320551-3
- TE Internal Description: TERMINAL,PIDG R IR 20 8
- Mil-Spec: M7928/1-23, CLASS 1
- Alias #: AMP-1-0320551-3 EM8361-000
- All PIDG Ring Tongue Terminals (411)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 20
-
Wire Size (mm²): .6
-
Wire Size (CMA): 1186
-
Stud Size : M4
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG , WIRE SIZE, 26-16 AWG ENG_CD_320551_AB.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-320551-3_AG.pdf 3D
- Customer View Model ENG_CVM_CVM_1-320551-3_AG.2d_dxf.zip English
- ENG_CVM_CVM_1-320551-3_AG.3d_igs.zip English
- ENG_CVM_CVM_1-320551-3_AG.3d_stp.zip English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6223_1437861_B.pdf English
