View products below to see detailed pricing

PIDG Ring Tongue Terminals

PIDG

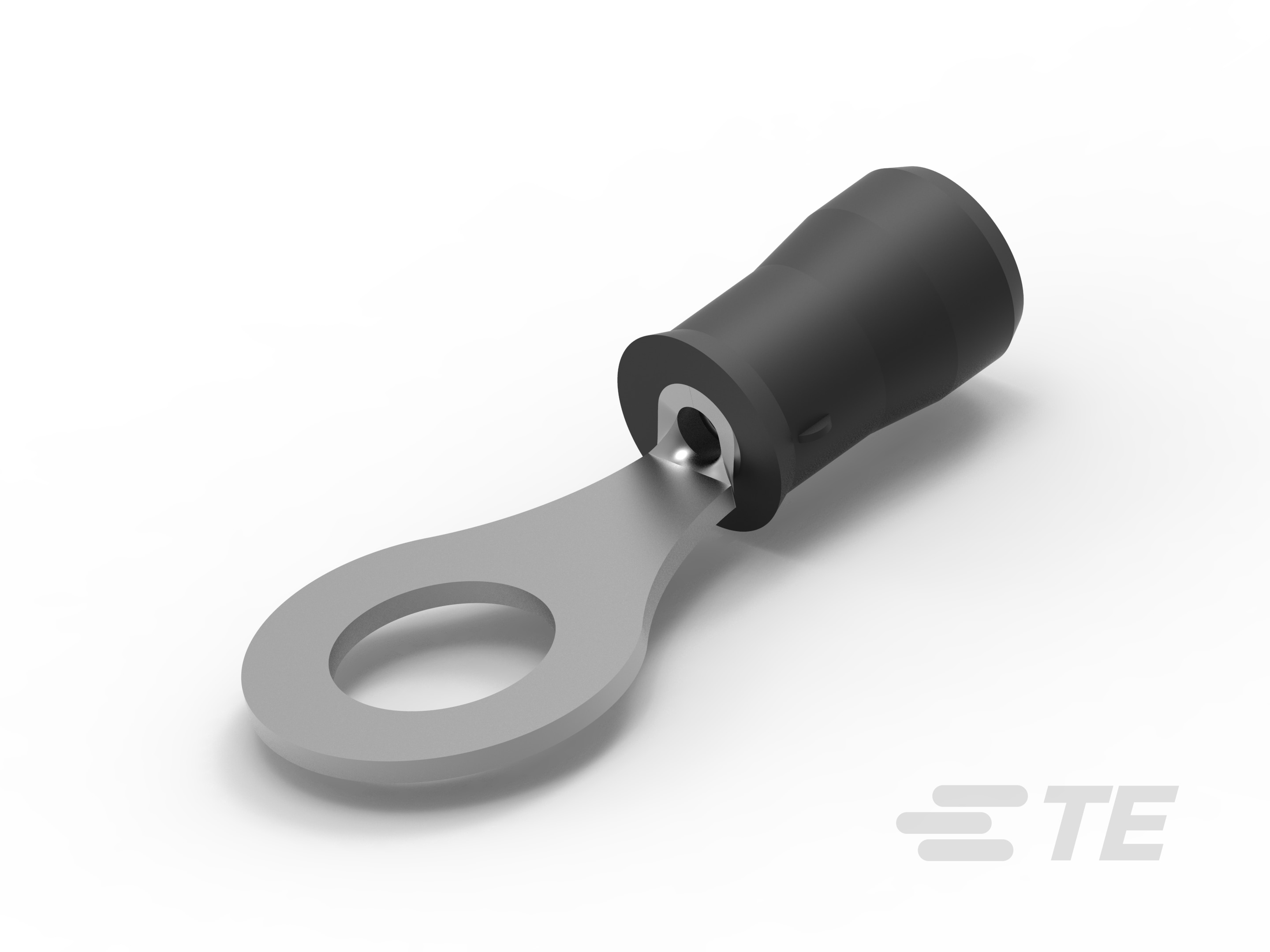

Pre-Insulated Diamond Grip (PIDG) Ring Tongue Terminals

More Less

Product Features

Ring Terminal Product Type : Multiple Stud Size Ring Tongue Terminal, Hook Tongue Terminal, Closed Ring Tongue Terminal
Wire Size (AWG): 12, 20, 24, 22, 16, 24 – 20, 14, 12 – 10, 26 – 22, 18, 26, 26 – 24, 10, 22 – 16, 16 – 14
Wire Size (mm²): .2 – .518, .6, 2.62 – 6.64, .25 – 1.6, .12 – .24, .2 – .517, .1 – .41, .326 – 1.31, 1.25 – 2, 1.04 – 2.64, .205 – .518, .8 – .9, .1 – .4, 1.04 – 2, 2.7 – 6.6, 3.37, 2.15, 2.26 – 6.64, .3 – 1.3, 3.31 – 5.26, .12 – .4, 3 – 6, .3 – 1.42, 1.04 – 2.62, .26 – 1.42, .12 – .32, 3.3 – 5.3, .3 – 1.65, 1.3 – 2, 1.31 – 2.08, .5 – .6, .26 – 1.65, 6.11, .129 – .326
Wire Size (CMA): 475, 2050 – 5180, 304, 320 – 1290, 6654, 202 – 810, 4234, 1186, 238 – 475, 1900, 2800, 5180 – 13100, 509 – 3260, 754, 12066, 202 – 509
Stud Size : None, M2, M3, M8, 3/4, M16, M2.5, 5/8,

Available from

Product	TE Part #	Documents	Ring Terminal Product Type	Wire Size	Wire Size	Wire Size	Stud Size	Stud Diameter	Tongue Thickness	Terminal Orientation	Product Length	Sealable	Terminal Plating Material	Operating Temperature Range	Wire Insulation Support Retention Type	Compatible Insulation Diameter (Max)	Compatible Insulation Diameter Range	Packaging Method	EU RoHS Compliance	EU ELV Compliance
PIDG 24-20 R 6; TAPE	2-323986-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	24 – 20 AWG	.205 – .518 mm²	320 – 1290 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	18.9 mm	No	Tin	105 °C	Insulation Support	2.54 mm	1.02 – 2.54 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 12-10 6 Buy on te.com	2-35149-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	24.21 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Tape Mounted	Compliant	Compliant
PIDG 12-10 R 1/4; TAPE Buy on te.com	2-35345-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	1/4, M6	6.73 mm	.79 mm	Straight	35.96 mm	No	Tin	105 °C	Insulation Support	7.62 mm	4.32 – 7.62 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 16-14 8	320565	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	Straight	-	-	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG HK 16-14 8	320306	Product Drawing 3D PDF	Hook Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	Straight	21.8 mm	No	Tin	-40 – 105 °C	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box	Compliant	Compliant
PIDG R 22-16COMM 22-18MIL 5/16	320572	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	M8, 5/16	7.92 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 26-22 2	323913	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 – 22 AWG	.1 – .41 mm²	202 – 810 CMA	M2, #2	2.36 mm	.79 mm	Straight	16.41 mm	No	Tin	150 °C	Insulation Support	1.4 mm	.79 – 1.4 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 24-20 2 Buy on te.com	329636	Product Drawing 3D PDF	Closed Ring Tongue Terminal	24 – 20 AWG	.2 – .517 mm²	320 – 1290 CMA	M2, #2	2.36 mm	.79 mm	Straight	14.96 mm	No	Tin	288 °C	Insulation Support	2.54 mm	1.02 – 2.54 mm	Loose Piece	Compliant	Compliant
PIDG 16-14 HD R 3/8, TAPE Buy on te.com	330896-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.3 – 2 mm²	2050 – 5180 CMA	3/8	9.91 mm	.79 mm	Straight	32.9 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 18 6	51863-7	Product Drawing 3D PDF	Closed Ring Tongue Terminal	18 AWG	-	1900 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	19.86 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.42 – 2.79 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 12 1/2	52077-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 AWG	3.37 mm²	6654 CMA	M12, 1/2	13.08 mm	.79 mm	Straight	37.85 mm	No	Tin	105 °C	Insulation Restriction	5.08 mm	2.41 – 5.08 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 10 1/4	2-320569-6	Product Drawing 3D PDF	Closed Ring Tongue Terminal	10 AWG	6.11 mm²	12066 CMA	1/4, M6	6.73 mm	.79 mm	Straight	35.36 mm	No	Tin	105 °C	Insulation Restriction	5.08 mm	3.02 – 5.08 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 20 1/4	2-320571-4	Product Drawing 3D PDF	Closed Ring Tongue Terminal	20 AWG	.6 mm²	1186 CMA	1/4, M6	6.35 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.17 – 2.79 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 6 Buy on te.com	2-323008-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.18 mm	2.03 – 3.18 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 16 1/2	2-328976-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 AWG	-	2800 CMA	M12, 1/2	12.7 mm	.79 mm	Straight	34.4 mm	No	Tin	105 °C	Insulation Restriction	3.3 mm	1.6 – 3.3 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 1/4 Buy on te.com	2-35273-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.26 – 6.64 mm²	5180 – 13100 CMA	1/4, M6	6.73 mm	.79 mm	Straight	30.18 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 26-22 4	323914	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 – 22 AWG	.1 – .41 mm²	202 – 810 CMA	M2.5, #4	3.02 mm	.79 mm	Straight	16.41 mm	No	Tin	105 °C	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 24-20 8 Buy on te.com	323989	Product Drawing 3D PDF	Closed Ring Tongue Terminal	24 – 20 AWG	.2 – .518 mm²	320 – 1290 CMA	#8, M4	4.34 mm	.79 mm	Straight	20.85 mm	No	Tin	105 °C	Insulation Support	2.54 mm	1.02 – 2.54 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 26-22 6	326875	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	18.8 mm	No	Tin	105 °C	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 4 Buy on te.com	35148	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M3, #4	3.02 mm	1.07 mm	Straight	24.21 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 10	51864-4	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.31 – 2.08 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Tape Mounted	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 10 Buy on te.com	8-36154-5	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece	Compliant	Compliant
PIDG, RING, 22-16 5MM	130008	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.25 – 1.6 mm²	509 – 3260 CMA	M5	5.2 mm	.79 mm	Straight	17.4 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Box	Compliant	Compliant
TERMINAL,PIDG R 16-14 8, TAPE Buy on te.com	2-320560-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	Straight	21.82 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 16-14 6	2-320561-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	17.86 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Tape Mounted	Compliant	Compliant
PIDG R 22-16 COMM 22-18MIL 1/4	2-320571-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	1/4, M6	6.35 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Support	3.18 mm	2.03 – 3.18 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 20 3/8	2-320573-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	20 AWG	.6 mm²	1186 CMA	3/8	9.53 mm	.79 mm	Straight	30.94 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.17 – 2.79 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 6 Buy on te.com	2-320634-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	24.21 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 12-10 10 Buy on te.com	2-323762-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#10	5 mm	.79 mm	Straight	30.18 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 16-14HD 8 Buy on te.com	2-35106-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	Straight	26.57 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 20 10	2-36153-4	Product Drawing 3D PDF	Closed Ring Tongue Terminal	20 AWG	.6 mm²	1186 CMA	#10	5 mm	.79 mm	Straight	23.01 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.17 – 2.79 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 12 10	2-36161-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 AWG	3.37 mm²	6654 CMA	#10	5 mm	.79 mm	Straight	29.16 mm	No	Tin	105 °C	Insulation Restriction	5.08 mm	2.41 – 5.08 mm	Loose Piece	Compliant	-
TERMINAL,PIDG R 12-10 1/2 Buy on te.com	323784	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M12, 1/2	13.08 mm	.79 mm	Straight	40.49 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 10 Buy on te.com	324533	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG 12-10 10 Buy on te.com	329389	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	3.3 – 5.3 mm²	5180 – 13100 CMA	#10	5 mm	.79 mm	Straight	36.4 mm	No	Tin	105 °C	Insulation Support	5.59 mm	3.81 – 5.59 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 6	36149	Product Drawing	Closed Ring Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	17.07 mm	No	Tin	105 °C	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 10	36161	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#10	5 mm	.99 mm	Straight	27.51 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 COMM 22-18MIL 1/4	8-31894-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	1/4, M6	6.73 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 8 Buy on te.com	4-51864-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.31 – 2.08 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 6 Buy on te.com	8-320619-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	17.86 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Box & Carton	Compliant	Compliant
TERMINAL,PIDG R 26-24 8	54311-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 AWG	.12 – .24 mm²	238 – 475 CMA	#8, M4	4.17 mm	.69 mm	Straight	20.67 mm	No	Tin	105 °C	Insulation Support	2.67 mm	1.27 – 2.67 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 4 Buy on te.com	8-328996-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2 mm²	2050 – 5180 CMA	M2.5, #4	3.02 mm	.79 mm	Straight	17.86 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 6 Buy on te.com	8-35149-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	1.02 mm	Straight	24.21 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 3/8 Buy on te.com	8-328999-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.3 – 2 mm²	2050 – 5180 CMA	3/8	9.91 mm	.79 mm	Straight	30.94 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 1/4	8-35345-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M6	6.73 mm	1.07 mm	Straight	36 mm	No	Tin	105 °C	Insulation Support	7.62 mm	4.32 – 7.62 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 10 Buy on te.com	8-36161-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#10	5 mm	.99 mm	Straight	27.51 mm	No	Tin	105 °C	Insulation Restriction	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 10 Buy on te.com	8-36154-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 8 Buy on te.com	320560	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	Straight	21.8 mm	No	Tin	105 °C	Non-Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 20 8	1-320551-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	20 AWG	.6 mm²	1186 CMA	M4	4.34 mm	.79 mm	Straight	23.01 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.17 – 2.79 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 10 Buy on te.com	1-324918-0	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#10	5 mm	.79 mm	Straight	26.72 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 18 1/4	2-320571-5	Product Drawing 3D PDF	Closed Ring Tongue Terminal	18 AWG	-	1900 CMA	1/4, M6	6.35 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.42 – 2.79 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 10 Buy on te.com	2-320574-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	Straight	21.62 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted	Compliant	Compliant
PIDG 16-14 R 1/4; TAPE Buy on te.com	2-321045-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	1/4, M6	6.73 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 16-14HD 1/4 Buy on te.com	2-323682-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	1/4, M6	3.68 mm	.79 mm	Straight	30.18 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Tape Mounted	Compliant	Compliant
N PIDG RING 12-10 Buy on te.com	331467	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	M12, 1/2	13.08 mm	.79 mm	Straight	38.38 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16COMM 22-18MIL .128 Buy on te.com	36254	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	None	3.25 mm	.79 mm	Straight	17.07 mm	No	Tin	105 °C	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 6	8-320561-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	17.86 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 6	320561	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	17.86 mm	No	Tin	105 °C	Non-Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14HD 10	320630	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	Straight	26.6 mm	No	Tin	105 °C	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 5/16	328998	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M8, 5/16	8.33 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 26-22 2 Buy on te.com	329951	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 – 22 AWG	.12 – .32 mm²	202 – 810 CMA	#2	2.36 mm	.79 mm	Straight	15.6 mm	No	Tin	105 °C	Insulation Support	2.03 mm	1.27 – 2.03 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14HD 1/4 Buy on te.com	34806	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M6	6.35 mm	1.22 mm	Straight	32.92 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
TERMINAL, PIDG, RT, 12-10 AWG, M5 Buy on te.com	130171	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M5	5.25 mm	.79 mm	Straight	27.68 mm	No	Tin	105 °C	Non-Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 8	51864-5	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.31 – 2.08 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Tape Mounted	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 8	2-31890-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 8 Buy on te.com	8-320554-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	Straight	20.24 mm	No	Tin	105 °C	Insulation Support	3.18 mm	2.03 – 3.18 mm	Box & Carton	Compliant	Compliant
TERMINAL,PIDG R IR 22 6	2-36149-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 AWG	-	754 CMA	M3.5	3.68 mm	.79 mm	Straight	17.07 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	.97 – 2.79 mm	Loose Piece	Compliant	Compliant
PIDG 16-14 R 6; TAPE Buy on te.com	2-36158-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	21.82 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 12-10 10 Buy on te.com	8-35109-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#10	5 mm	.99 mm	Straight	27.51 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
N PIDG RING 16-14 HD 8 Buy on te.com	1-320627-0	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	Straight	26.57 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 16 1/4	2-320563-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 AWG	-	2800 CMA	1/4, M6	6.35 mm	.79 mm	Straight	28.96 mm	No	Tin	105 °C	Insulation Restriction	3.3 mm	1.6 – 3.3 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 6 Buy on te.com	36152	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	M3.5	3.68 mm	.79 mm	Straight	20.24 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 8 Buy on te.com	8-320560-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	Straight	21.8 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 18 10	2-36153-9	Product Drawing 3D PDF	Closed Ring Tongue Terminal	18 AWG	-	1900 CMA	#10	5 mm	.79 mm	Straight	23.01 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.42 – 2.79 mm	Tape Mounted	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 8 Buy on te.com	320554	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	Straight	20.24 mm	No	Tin	105 °C	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14HD 1/4	327743	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M6	6.73 mm	.79 mm	Straight	1.3 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
TERM,RING, PIDG, IR, 20, #6	51863-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	20 AWG	.6 mm²	1186 CMA	M3.5	3.68 mm	.79 mm	Straight	19.86 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.17 – 2.79 mm	Loose Piece	Compliant	Compliant
TERM, RT, PIDG, 16-14, #8	51864-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.31 – 2.08 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 10	51864-2	3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.31 – 2.08 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	Straight	21.44 mm	No	Tin	105 °C	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 18 4	52273-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	18 AWG	-	1900 CMA	M2.5, #4	3.02 mm	.79 mm	Straight	18.64 mm	No	Tin	105 °C	Insulation Restriction	2.79 mm	1.42 – 2.79 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16COMM 22-18 MIL 1/4 Buy on te.com	8-31894-5	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	1/4, M6	6.73 mm	.79 mm	Straight	27.38 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 20 10 Buy on te.com	8-36153-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	20 AWG	.5 – .6 mm²	1186 CMA	#10	5 mm	.79 mm	Straight	23.01 mm	No	Tin	105 °C	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 16-14 6 Buy on te.com	8-36158-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	Straight	21.82 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 14 8	1-51864-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	14 AWG	2.15 mm²	4234 CMA	#8, M4	4.34 mm	.79 mm	Straight	23 mm	No	Tin	105 °C	Insulation Restriction	3.3 mm	1.98 – 3.3 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 8 Buy on te.com	2-31886-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	Straight	20.24 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R IR 10 8	2-320568-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	10 AWG	6.11 mm²	12066 CMA	M4	4.17 mm	.79 mm	Straight	29.16 mm	No	Tin	105 °C	Insulation Restriction	5.08 mm	3.02 – 5.08 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 12 5/16	2-320576-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 AWG	3.37 mm²	6654 CMA	M8, 5/16	7.92 mm	.79 mm	Straight	35.36 mm	No	Tin	105 °C	Insulation Restriction	5.08 mm	2.41 – 5.08 mm	Box	Compliant	Compliant
TERMINAL,PIDG R 16-14HD 10 Buy on te.com	2-320630-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	Straight	26.57 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
TERMINAL, PIDG RING 16-14 HD 6 Buy on te.com	2-320631-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.79 mm	Straight	24.21 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted	Compliant	Compliant
PIDG 16-14 R 3/8; TAPE Buy on te.com	2-328999-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.3 – 2 mm²	2050 – 5180 CMA	3/8	9.91 mm	.79 mm	Straight	30.94 mm	No	Tin	105 °C	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape & Reel	Compliant	Compliant
PIDG R 22-16 COMM 22-18 MIL 10 Buy on te.com	31887	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.84 mm	Straight	20.24 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece	Compliant	Compliant
PIDG R 22-16 5MM TAPE	2-130008-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	22 – 16 AWG	.25 – 1.6 mm²	509 – 3260 CMA	M5	5.2 mm	.79 mm	Straight	17.4 mm	No	Tin	105 °C	Insulation Support	3.56 mm	2.67 – 3.56 mm	Reel	Compliant	Compliant
TERM, PIDG, RT, 16-14 HD, #10 Buy on te.com	34805	Product Drawing 3D PDF	Closed Ring Tongue Terminal	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#10	4.82 mm	1.22 mm	Straight	26.57 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R IR 10 5/16	2-320576-3	Product Drawing 3D PDF	Closed Ring Tongue Terminal	10 AWG	6.11 mm²	12066 CMA	M8, 5/16	7.92 mm	.79 mm	Straight	35.36 mm	No	Tin	105 °C	Insulation Restriction	5.08 mm	3.02 – 5.08 mm	Box	Compliant	Compliant
TERMINAL,PIDG R 26-24 10	54312-2	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 AWG	.12 – .24 mm²	238 – 475 CMA	#10	4.82 mm	.69 mm	Straight	21.92 mm	No	Tin	105 °C	Insulation Support	2.67 mm	1.27 – 2.67 mm	Tape Mounted	Compliant	Compliant
TERMINAL,PIDG R 12-10 3/8	320577	Product Drawing 3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	3/8	9.53 mm	.79 mm	Straight	35.9 mm	No	Tin	105 °C	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 6-8-10 Buy on te.com	54773-1	Product Drawing 3D PDF	Multiple Stud Size Ring Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	4.17 mm	.77 mm	Straight	29.59 mm	No	Tin	105 °C	Insulation Support	5.84 mm	3.81 – 5.84 mm	Box	Compliant	Compliant
TERMINAL,PIDG R 26-22 8	323916	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 – 22 AWG	.1 – .41 mm²	202 – 810 CMA	#8, M4	4.34 mm	.79 mm	Straight	18.8 mm	No	Tin	105 °C	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece	Compliant	Compliant
TERMINAL,PIDG R 12-10 1/4	8-35110-0	3D PDF	Closed Ring Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M6	6.73 mm	1.02 mm	Straight	33.58 mm	No	Tin	105 °C	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece	Compliant	Compliant
PIDG R 26-24 2	54310-1	Product Drawing 3D PDF	Closed Ring Tongue Terminal	26 AWG	.12 – .24 mm²	238 – 475 CMA	M2, #2	2.36 mm	.68 mm	Straight	18.77 mm	No	Tin	105 °C	Insulation Support	2.67 mm	1.27 – 2.67 mm	Loose Piece	Compliant	Compliant

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Ring Terminal Product Type Multiple Stud Size Ring Tongue Terminal, Hook Tongue Terminal, Closed Ring Tongue Terminal
Stud Size None, M2, M3, M8, 3/4, M16, M2.5, 5/8,
Sealable No
Wire Insulation Support Retention Type Insulation Support, Non-Insulation Support, Insulation Restriction
Terminal Features Sheared, Inspection Slot, Heavy Duty

Dimensions

Wire Size (AWG) 12, 20, 24, 22, 16, 24 – 20, 14, 12 – 10, 26 – 22, 18, 26, 26 – 24, 10, 22 – 16, 16 – 14
Wire Size (mm²) .2 – .518, .6, 2.62 – 6.64, .25 – 1.6, .12 – .24, .2 – .517, .1 – .41, .326 – 1.31, 1.25 – 2, 1.04 – 2.64, .205 – .518, .8 – .9, .1 – .4, 1.04 – 2, 2.7 – 6.6, 3.37, 2.15, 2.26 – 6.64, .3 – 1.3, 3.31 – 5.26, .12 – .4, 3 – 6, .3 – 1.42, 1.04 – 2.62, .26 – 1.42, .12 – .32, 3.3 – 5.3, .3 – 1.65, 1.3 – 2, 1.31 – 2.08, .5 – .6, .26 – 1.65, 6.11, .129 – .326
Wire Size (CMA) 475, 2050 – 5180, 304, 320 – 1290, 6654, 202 – 810, 4234, 1186, 238 – 475, 1900, 2800, 5180 – 13100, 509 – 3260, 754, 12066, 202 – 509
Stud Diameter (mm) 3.02, 4.34, 9.53, 5.26, 4.83, 5, 8.33, 2.36, 3.25, 2.18, 12.7, 16.66, 6.73, 19.05, 9.91, 6.3, 2.84, 6.35, 8.3, 13.08, 7.92, 3.51, 4.82, 5.2, 5.25, 13.02, 3.68, 5.66, 4.17
Stud Diameter (in) .375, .171, .164, .19, .39, .25, .207, .656, .093, .515, .312, .191, .128, .223, .328, .75, .145, .5, .265, .112, .197, .327, .086, .138, .205, .119, .248
Tongue Thickness (mm) .77, .84, .99, .5, 1.27, .78, 1.02, .74, .69, .79, 1.07, .68, 1.22, .46, 1
Tongue Thickness (in) .04, .048, .031, .027, .033, .05, .029, .02, .042, .039, .018
Product Length (mm) 19.43, 17.9, 35.91, 33.83, 55.36, 35.96, 21.2, 21.94, 29, 18.7, 36, 35.18, 35.97, 18.64, 16.41, 26.54, 32.84, 32.9, 26.19, 56.36, 29.16, 13.33, 28.83, 32.92, 40.49, 16.97, 26.6, 21.92, 37.85, 20.67, 21.8, 21.44, 26.72, 56.4, 33.6, 19.4, 17.07, 37.74, 30.18, 13.36, 40.48, 22.25, 16.99, 19.86, 35.36, 18.92, 24.21, 58.62, 23, 38.38, 38.35, 20.1, 17.4, 18.77, 28.39, 35.58, 32.51, 27.38, 34.4, 20.85, 27.51, 17.86, 18.6, 15.6, 21.62, 36.4, 29.74, 35.92, 27.68, 35.9, 30.94, 1.3, 21.82, 18.8, 26.57, 32.5, 24.2, 15.67, 20.7, 27.5, 28.96, 30.2, 24.31, 18.9, 23.01, 29.77, 14.96, 20.65, 29.59, 20.24, 33.58, 27.4
Product Length (in) .731, .864, 1.296, 1.05, 1.171, 1.432, .745, 1.14, 2.22, .734, .876, .703, .67, .739, 1.293, .859, 1.218, 1.09, .792, .782, 1.355, .814, .668, .86, 1.052, .8, .813, .051, .84, 1.414, .953, .617, 1.19, .615, .91, .851, .95, .765, .74, 1.49, 1.08, .526, 1.12, 1.3, 1.188, .736, 1.42, 1.33, .685, .797, .744, 1.51, 1.083, 1.292, .957, 1.165, .669, .672, 1.151, 2.219, 1.076, 1.392, 1.322, .589, 1.28, .646, 1.045, 2.31, 1.39, 1.078, .821, 1.046, .844, .525, 1.594, 2.18, .833, 1.486, 1.32, 1.41, .863, 1.03, 1.59, 1.17, .906, 1.148
Compatible Insulation Diameter (Max) (mm) 5.59, 1.4, 5.08, 5.84, 3.56, 2.67, 4.32, 2.08, 2.54, 2.03, 7.62, 6.4, 3.18, 2.79, 6.35, 3.3, 3.81
Compatible Insulation Diameter (Max) (in) .3, .23, .105, .2, .11, .17, .14, .252, .1, .25, .08, .15, .13, .125, .22, .055, .082
Compatible Insulation Diameter Range (mm) 2.67 – 3.81, 3.8 – 6.4, 4.32 – 7.62, 3.02 – 5.08, 1.17 – 2.79, .97 – 2.79, 3.81 – 5.59, 1.98 – 3.3, 1.27 – 2.08, 1.02 – 2.54, 3.81 – 6.35, 2.41 – 5.08, 3.81 – 5.84, .81 – 2.08, .66 – 1.4, 1.27 – 2.03, 2.03 – 3.81, 1.27 – 2.67, 2.03 – 3.18, 1.42 – 2.79, 2.68 – 3.81, 2.67 – 3.56, 1.6 – 3.3, 2.92 – 4.31, .79 – 1.4
Compatible Insulation Diameter Range (in) .046 – .11, .08 – .15, .032 – .082, .15 – .22, .05 – .082, .15 – .25, .115 – .17, .095 – .2, .105 – .15, .038 – .11, .05 – .105, .05 – .08, .04 – .1, .106 – .15, .063 – .13, .17 – .3, .15 – .252, .078 – .13, .105 – .14, .056 – .11, .031 – .055, .08 – .125, .026 – .055, .15 – .23, .119 – .2

Contact Features

Barrel Type Closed
Terminal Orientation Right Angle, Straight
Terminal Plating Material Tin-Lead, Tin
Military Part Class Class I, Class II
Contact Base Material Copper

Usage Conditions

Insulation Option Partially Insulated
Operating Temperature Range (°C) 288, 150, 105, 170, -40 – 105
Operating Temperature Range (°F) 302, 221, 338, -40 – 221, 550

Operation/Application

Compatible With Wire Base Material Copper
Compatible With Wire Plating Material Tin

Packaging Features

Packaging Method Tape & Reel, Box & Carton, Reel, Package, Box, Tape Mounted, Loose Piece
Packaging Quantity 15000, 1, 4000, 1000, 2000, 100, 5000, 2500, 3500, 1500, 50000, 500, 50

Other

EU RoHS Compliance Compliant, Compliant with Exemptions, Not Compliant
EU ELV Compliance Compliant with Exemptions, Compliant

Configuration Features

Number of Holes 1

Electrical Characteristics

Voltage Rating (V) 300, 600

Body Features

Product Weight (g) .789, 1.213, .805, 9.972, 2.192, 1.305, .611, .985, .851, 2.819, .539, .894, 3.028, .658, 1.391, .451, 1.016, 2.251, .852, 3, 3.75, 1.413, 2.338, 4.32, 2.795, .806, 2.427, 1.459, 2.24, .486, 3.95, 3.485, .781, .964, .967, .839, 1.379, .322, .83, .956, .872, 1.159, .938, .939, .722, 10, 2.571, 1.026, .302, 2.869, 1.376, .705, 2.6, 2.827, 2.752, 1.323, 1.485, .876, .282, 1.028, .782, .23, 3.345, .286, .53, 1.924, 2.369, 1.919, 2.294, 5.962, .828, .588, 10.282, 4.947, .499, 1.458, 1.49, 1.081, 2.659, .775, 12.088, .821, 1.545, 1.234, 2.306, 1.091, 2.131, 3.648, .411, 2.601, .265, 1.122, .843, .95, 3.166, 3.415, .739, 3.15, .747, .637, .155, 1.522, 1.075, 1.244, 1.871, 4.462, .676, .468, 3.472, .237, 2.321, 1.114, 2.393, 1.085, .767, 3.797, .85, .986, 3.249, 1.542, .919, 1.408, 1.48, .715, 1.013, 2.544, 1.653, 2.742, .846, .87, 2.429, 1.048, .842, 2.691, 1.051, 7.09, .917, 5.547, .249, .65, .904, 2.236, .84, 2.151, .7, 2.707, 1.102, .532, 1, 2.441, 1.235, 1.278, .622, .288, 2.118, 1.031, 3.018, 3.741, 4.514, 2.247, .317, 2.826, 2.53, 3.172, 2.57, 1.25, 2.438, 3.186, 1.448, .787, 2.563, .66, 1.215, .881, 1.156, .869, .769, .287, 1.702, 1.404, 1.363, 2.27, 1.476, 1.256, 5.307, 1.392, 4.889, .406, 2.386, .877, 1.217, 2.426, 1.495, .703, 1.658, .826, 1.087, .847, 2.314, .45, 1.014, 2.504, 2.656, 1.039, .662, .222, .99, 3.266, .625, 1.241, 3.98, 3.558, 1.503, .078, .818, .856, 2.838, 2.588, 2.284, .796, .945, 3.244, 2.442, 1.883, 1.123, .289, 2.002, .362, 2.358, .996, .581, 2.789, .6, 2.004, 1.021, 1.007, 1.23, .301, 3.087, 1.228, 1.172
Insulation Sleeve Color Yellow, Red, Natural, Blue, Black
Stripe Color Blue, Yellow, Brown, White, Red, Green, Black

Mechanical Attachment

Wire Insulation Support With

Industry Standards

Government Qualified Terminal No, Yes

Reference Number

TE Internal Number CAT-P592-R472A

Related Materials

Datasheets & Catalog Pages

PIDG TERMINALS & SPLICES Quick Reference Guide pdf English

PIDG Ring Tongue Terminals

Product Features

Ring Terminal Product Type : Multiple Stud Size Ring Tongue Terminal, Hook Tongue Terminal, Closed Ring Tongue Terminal

Wire Size (AWG): 12, 20, 24, 22, 16, 24 – 20, 14, 12 – 10, 26 – 22, 18, 26, 26 – 24, 10, 22 – 16, 16 – 14

Wire Size (CMA): 475, 2050 – 5180, 304, 320 – 1290, 6654, 202 – 810, 4234, 1186, 238 – 475, 1900, 2800, 5180 – 13100, 509 – 3260, 754, 12066, 202 – 509

Stud Size : None, M2, M3, M8, 3/4, M16, M2.5, 5/8,

Product Type Features

Ring Terminal Product Type Multiple Stud Size Ring Tongue Terminal, Hook Tongue Terminal, Closed Ring Tongue Terminal

Stud Size None, M2, M3, M8, 3/4, M16, M2.5, 5/8,

Sealable No

Wire Insulation Support Retention Type Insulation Support, Non-Insulation Support, Insulation Restriction

Terminal Features Sheared, Inspection Slot, Heavy Duty

Dimensions

Wire Size (AWG) 12, 20, 24, 22, 16, 24 – 20, 14, 12 – 10, 26 – 22, 18, 26, 26 – 24, 10, 22 – 16, 16 – 14

Wire Size (CMA) 475, 2050 – 5180, 304, 320 – 1290, 6654, 202 – 810, 4234, 1186, 238 – 475, 1900, 2800, 5180 – 13100, 509 – 3260, 754, 12066, 202 – 509

Stud Diameter (mm) 3.02, 4.34, 9.53, 5.26, 4.83, 5, 8.33, 2.36, 3.25, 2.18, 12.7, 16.66, 6.73, 19.05, 9.91, 6.3, 2.84, 6.35, 8.3, 13.08, 7.92, 3.51, 4.82, 5.2, 5.25, 13.02, 3.68, 5.66, 4.17

Stud Diameter (in) .375, .171, .164, .19, .39, .25, .207, .656, .093, .515, .312, .191, .128, .223, .328, .75, .145, .5, .265, .112, .197, .327, .086, .138, .205, .119, .248

Tongue Thickness (mm) .77, .84, .99, .5, 1.27, .78, 1.02, .74, .69, .79, 1.07, .68, 1.22, .46, 1

Tongue Thickness (in) .04, .048, .031, .027, .033, .05, .029, .02, .042, .039, .018

Compatible Insulation Diameter (Max) (mm) 5.59, 1.4, 5.08, 5.84, 3.56, 2.67, 4.32, 2.08, 2.54, 2.03, 7.62, 6.4, 3.18, 2.79, 6.35, 3.3, 3.81

Compatible Insulation Diameter (Max) (in) .3, .23, .105, .2, .11, .17, .14, .252, .1, .25, .08, .15, .13, .125, .22, .055, .082

Contact Features

Barrel Type Closed

Terminal Orientation Right Angle, Straight

Terminal Plating Material Tin-Lead, Tin

Military Part Class Class I, Class II

Contact Base Material Copper

Usage Conditions

Insulation Option Partially Insulated

Operating Temperature Range (°C) 288, 150, 105, 170, -40 – 105

Operating Temperature Range (°F) 302, 221, 338, -40 – 221, 550

Operation/Application

Compatible With Wire Base Material Copper

Compatible With Wire Plating Material Tin

Packaging Features

Packaging Method Tape & Reel, Box & Carton, Reel, Package, Box, Tape Mounted, Loose Piece

Packaging Quantity 15000, 1, 4000, 1000, 2000, 100, 5000, 2500, 3500, 1500, 50000, 500, 50

Other

EU RoHS Compliance Compliant, Compliant with Exemptions, Not Compliant

EU ELV Compliance Compliant with Exemptions, Compliant

Configuration Features

Number of Holes 1

Electrical Characteristics

Voltage Rating (V) 300, 600

Body Features

Insulation Sleeve Color Yellow, Red, Natural, Blue, Black

Stripe Color Blue, Yellow, Brown, White, Red, Green, Black

Mechanical Attachment

Wire Insulation Support With

Industry Standards

Government Qualified Terminal No, Yes

Reference Number

TE Internal Number CAT-P592-R472A

Datasheets & Catalog Pages
