Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

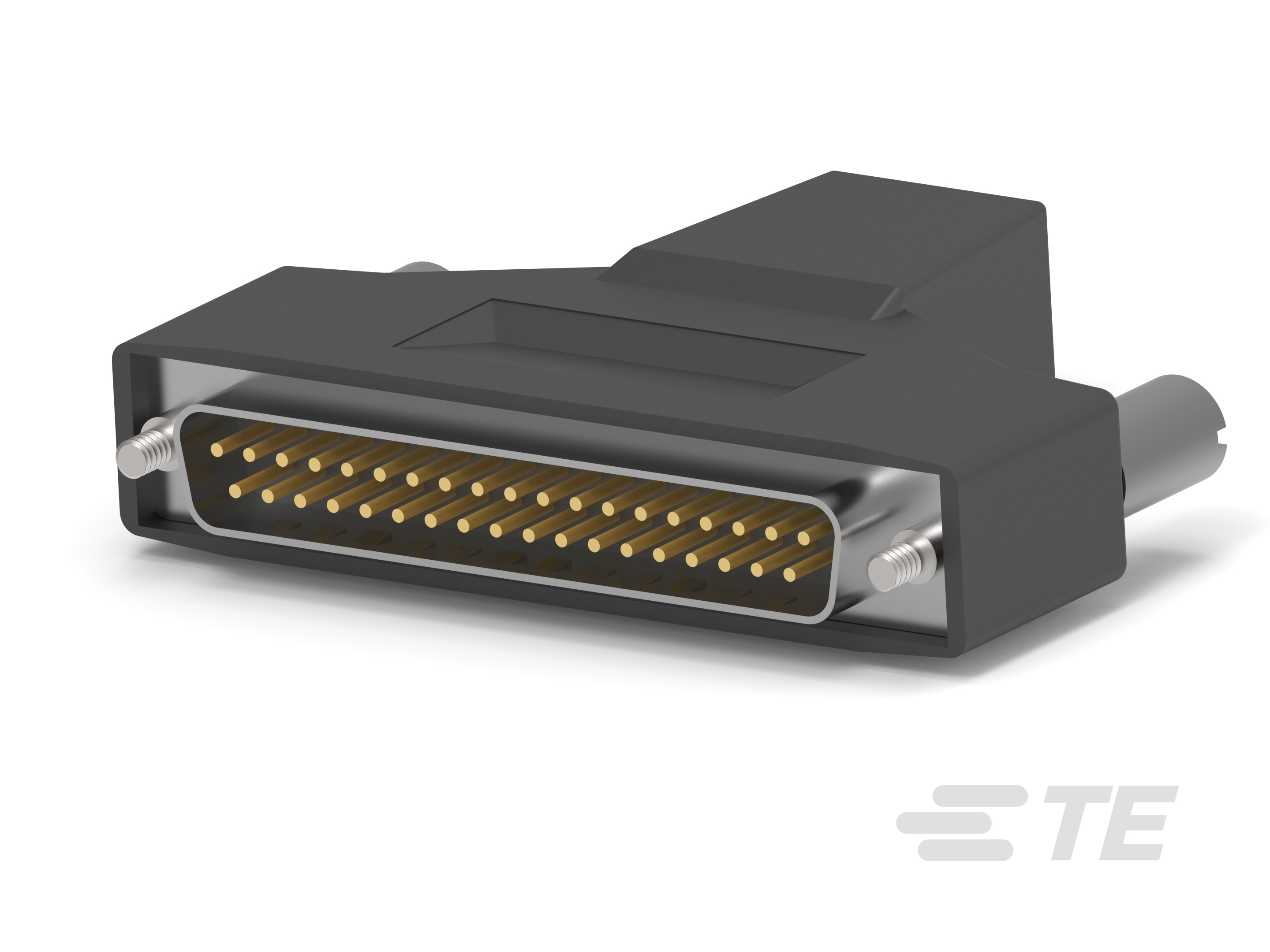

• Shell Material Configuration : Front Metal Shell

• Ground Feature Type : Grounding Indents

• Connector & Housing Type : Plug

• Connector System : Cable-to-Cable

• Connector Product Type : Connector Kit

• Connector Shell Size : 4

• Connector & Contact Terminates To : Wire & Cable

• Accepts Cable Diameter (Max) : 14.27 mm [ .562 in ]

• Compatible Insulation Diameter Range : 1.52 mm [ .06 in ]

• Accepts Cable Insulation Diameter Range : 8.59 – 14.28 mm [ .338 – .562 in ]

• Solid Wire Size (mm²): .05 – .13

• Solid Wire Size (AWG): 30 – 26

• Wire Size (AWG): 30 – 26

• Wire Size (mm²): .05 – .15

• Circuit Application : Signal

• Shielded : Yes

• Shell Material : Steel

• Centerline (Pitch) : 2.77 mm [ .109 in ]

• Contact Type : Pin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold

• Contact Options : Installed

• Wire Contact Termination Area Plating Material : Tin

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• Contact Underplating Material : Nickel

• Contact Size : Size 20

• Contact Current Rating (Max) (A): 5

• Wire Insulation Support : With

• Mating Retention : With

• Thread Size : 4-40

• Mating Retention Type : Jackscrew

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Package

• Packaging Quantity : 1

• Mating Retention Feature Material : Zinc Alloy

• Cable Exit Angle : 180°

• Shell Plating Material : Tin

• Shield Material : Steel

• Insert Material : Thermoplastic

• Shield Plating Material : Tin

• Termination Method to Wire & Cable : Insulation Displacement (IDC)

• UL Flammability Rating : UL 94V-0

• Number of Positions : 37

• Number of Rows : 2

• Compatible With Wire & Cable Type : Discrete Wire, Round Jacketed Cable

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
