1-87175-2

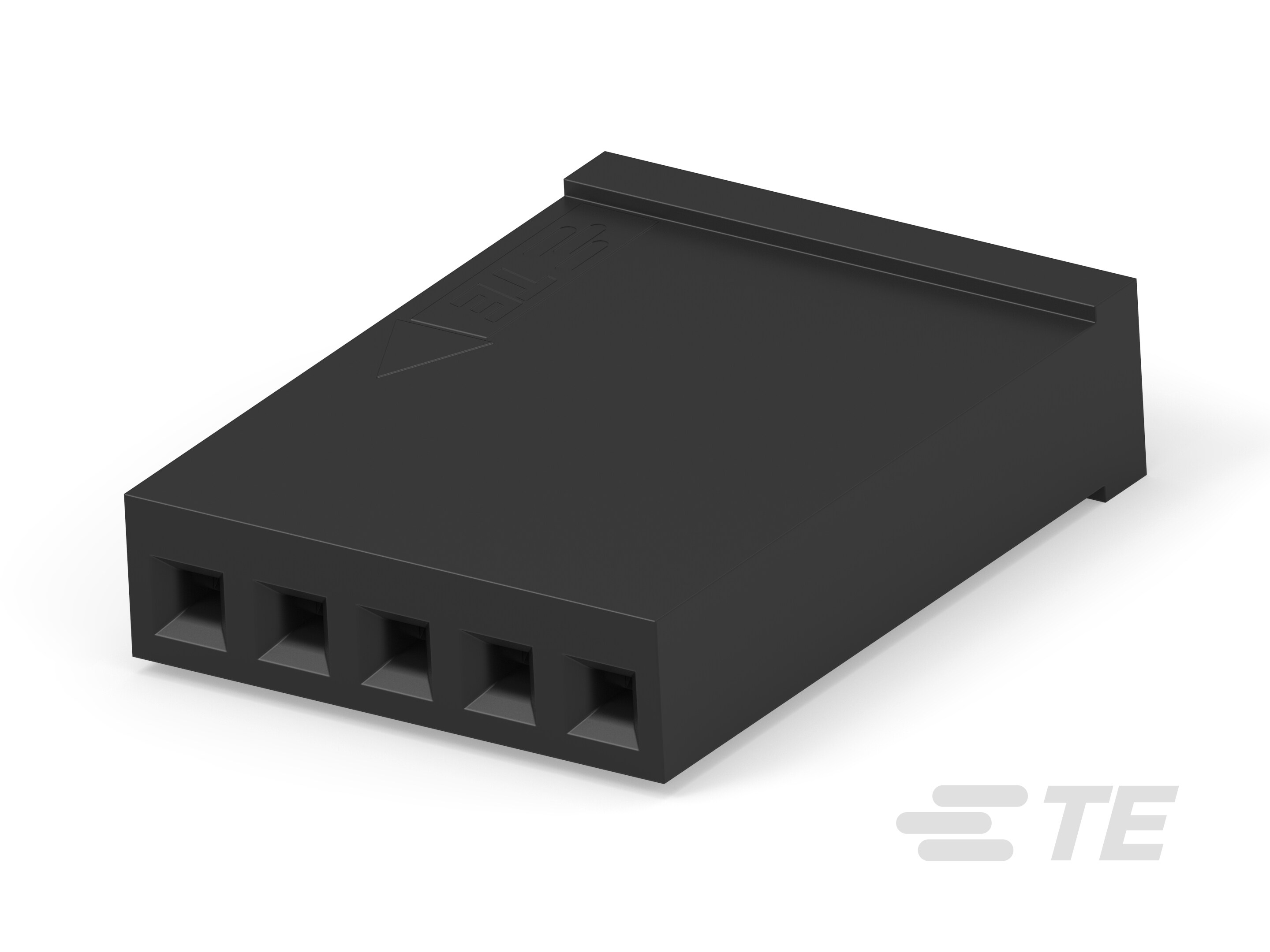

Housing, Receptacle, Wire-to-Board, 5 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Black, Wire & Cable, Power & Signal, AMPMODU LOCKING CLIP
1-87175-2
Housing, Receptacle, Wire-to-Board, 5 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Black, Wire & Cable, Power & Signal, AMPMODU LOCKING CLIP
-
- AMPMODU
- AMPMODU LOCKING CLIP
- TE Internal #: 1-87175-2
- TE Internal Description: 05 LOCKING CLIP HSG SR .100CL
-
Packaging Method : Package
-
Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]
-
Primary Product Color : Black
-
Connector & Contact Terminates To : Wire & Cable
-
Contact Layout : Inline
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1-87175-2_U.pdf English
- 3D_CVM_CVM_1-87175-2_AT.pdf 3D
- Customer View Model ENG_CVM_1-87175-2_U.3d_igs.zip English
- ENG_CVM_1-87175-2_U.3d_stp.zip English
- ENG_CVM_1-87175-2_U.2d_dxf.zip English
- ENG_CVM_CVM_1-87175-2_AT.3d_stp.zip English
- ENG_CVM_CVM_1-87175-2_AT.2d_dxf.zip English
- ENG_CVM_CVM_1-87175-2_AT.3d_igs.zip English
Datasheets & Catalog Pages
- AMPMODU_INTERCONNECTION_SYSTEM_SECTION5_CONT ENG_CS_1307819_SECTION_5_CONT_0808.pdf English
Product Specifications
- Application Specification ENG_SS_114-25006_G_114-25006.pdf English
- Product Specification ENG_SS_108-36029_B.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7606_A.pdf English
- S_408-7606_A.tif English
Agency Approvals
- UL ENG_AAD_UL_CERT_E28476_19861028_C1_2.pdf English
