1-962918-1

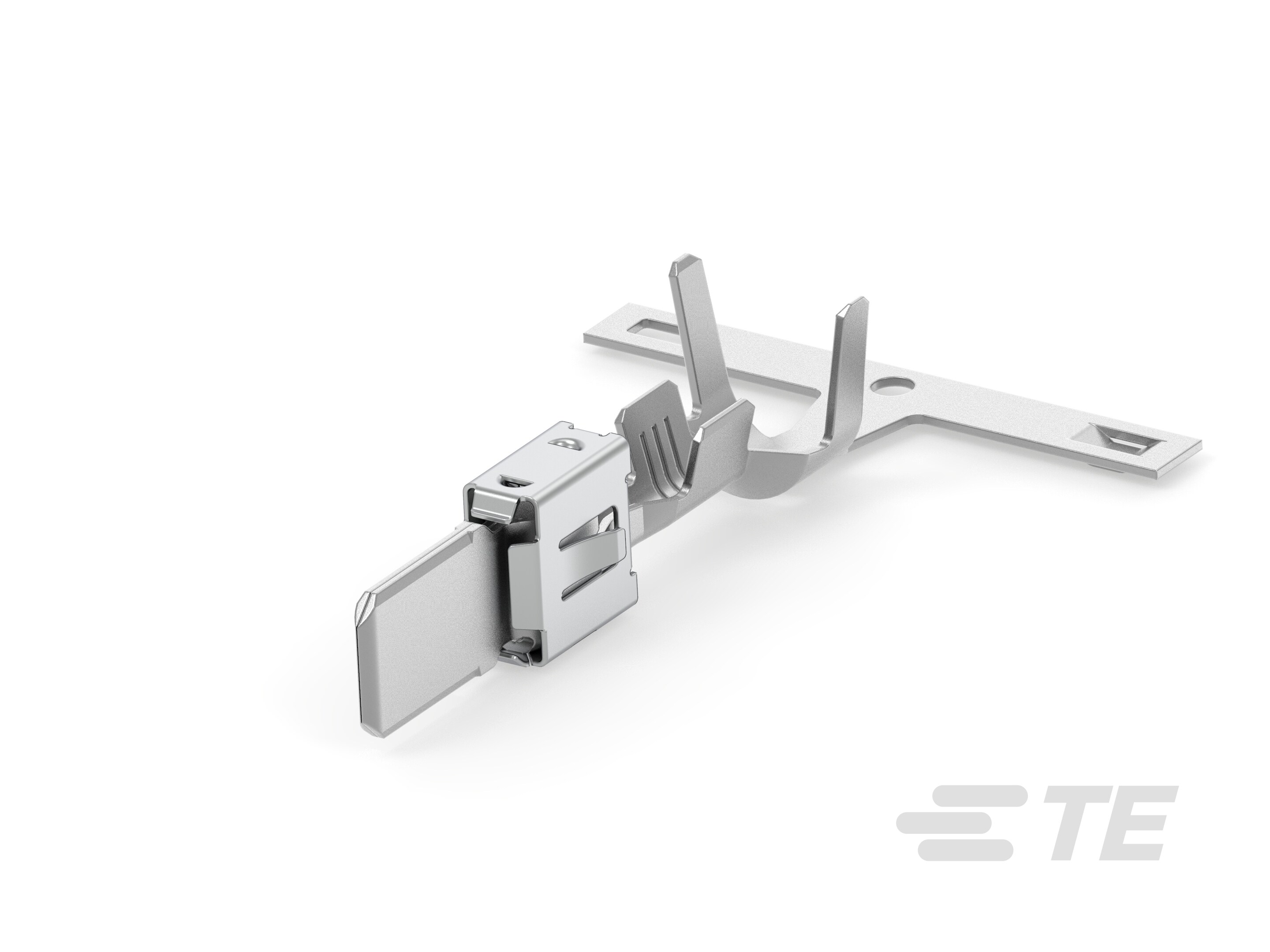

Tab Terminal, Tin (Sn), 5.8 mm [.228 in] Tab Width, .8 mm [.031 in] Tab Thickness, 17 – 13 AWG, 1 – 2.5 mm² Wire, Sealable, Timer Connector System
1-962918-1
Tab Terminal, Tin (Sn), 5.8 mm [.228 in] Tab Width, .8 mm [.031 in] Tab Thickness, 17 – 13 AWG, 1 – 2.5 mm² Wire, Sealable, Timer Connector System
-
- AMP
- Timer Connector System ,
- Junior Power Timer
- TE Internal #: 1-962918-1
- TE Internal Description: TAB 5.8x0.8 CONTACT CS SWS Sn
- All TIMER, RECEPTACLE AND TAB (279)
-
Terminal Type : Tab
-
Interface Plating : Tin (Sn)
-
Mating Tab Width : 5.8 mm [ .228 in ]
-
Mating Tab Thickness : .8 mm [ .031 in ]
-
Terminal Transmits : 25 – 40 A (Power)
Documents
Product Drawings
- TAB 5.8 x 0.8 Flachstecker 5.8 x 0.8 ENG_CD_962918_E2_pdf_962918-c_drw.pdf English
- TAB 5.8 x 0.8 Flachstecker 5.8 x 0.8 ENG_CD_1241895_A12.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1-962918-1_A1.pdf English
- Customer View Model ENG_CVM_1-962918-1_A1.3d_igs.zip English
- ENG_CVM_1-962918-1_A1.3d_stp.zip English
- ENG_CVM_1-962918-1_A1.2d_dxf.zip English
Datasheets & Catalog Pages
- HDSCS Catalog ENG_DS_1-1773971-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- ENG_SS_114-18052_E1.pdf English
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-1067_B.pdf English
