1-963964-3

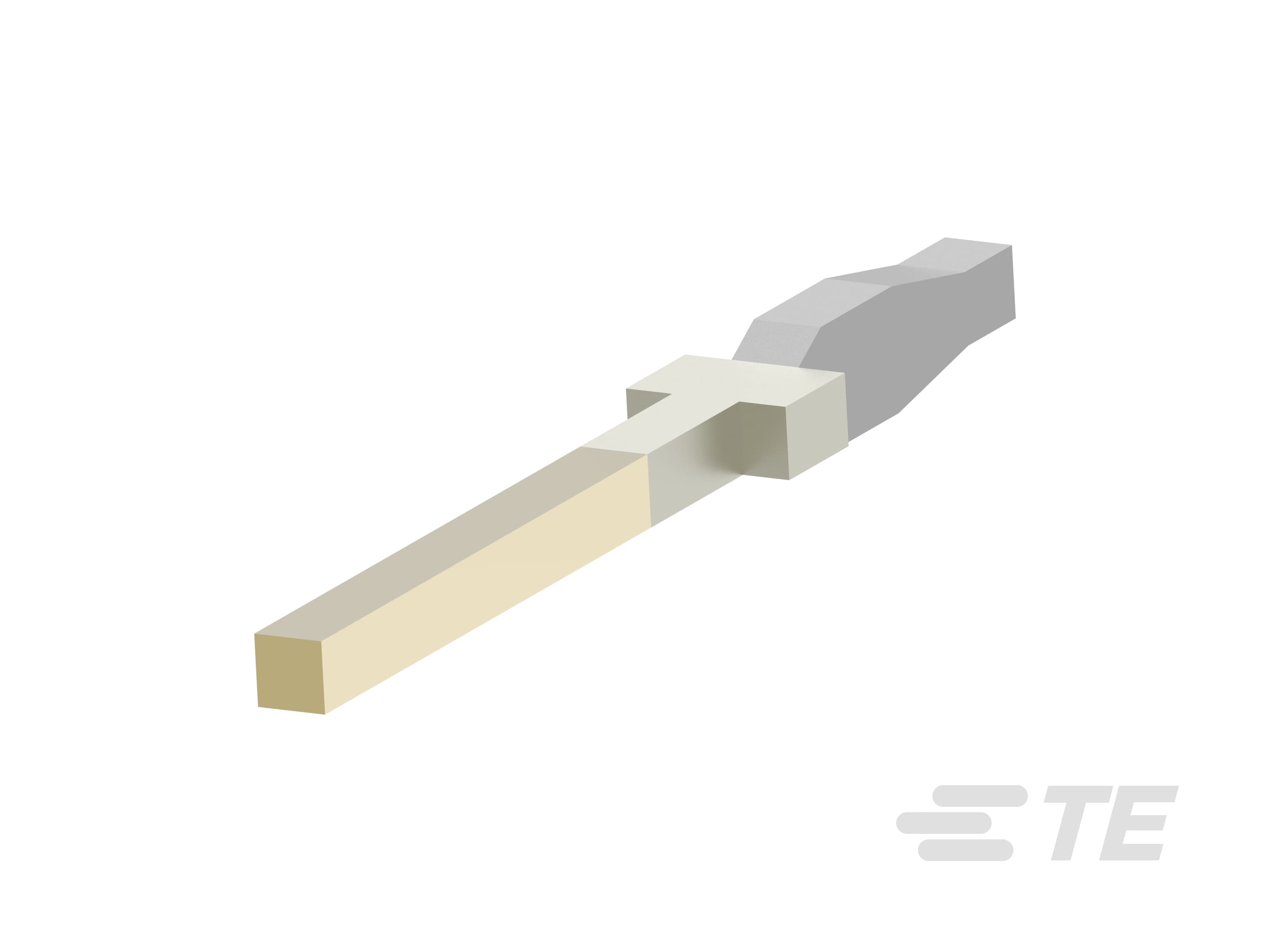

Tab Terminal, Gold (Au), .63 mm [.024 in] Tab Width, .63 mm [.024 in] Tab Thickness, Terminates To Printed Circuit Board, Press Fit Pin
1-963964-3
Tab Terminal, Gold (Au), .63 mm [.024 in] Tab Width, .63 mm [.024 in] Tab Thickness, Terminates To Printed Circuit Board, Press Fit Pin
-
- MQS
- Press Fit Pin
- TE Internal #: 1-963964-3
- TE Internal Description: MQS STIFTE MAGAZ
- All PRESS FIT PIN TERMINALS (64)
-
Terminal Type : Tab
-
Interface Plating : Gold (Au)
-
Mating Tab Width : .63 mm [ .024 in ]
-
Mating Tab Thickness : .63 mm [ .024 in ]
-
Sealable : No
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-963964-3_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1-963964-3_B.2d_dxf.zip English
- ENG_CVM_CVM_1-963964-3_B.3d_igs.zip English
- ENG_CVM_CVM_1-963964-3_B.3d_stp.zip English
Datasheets & Catalog Pages
- Press-Fit Connections for the Automotive Industry ENG_CS_1654403-1_0616.pdf English
Product Specifications
- Product Specification ENG_SS_108-1863_B.pdf English
- ENG_SS_108-18643_A2.tif English
- ENG_SS_108-18643_A2.pdf English
