1-964298-3

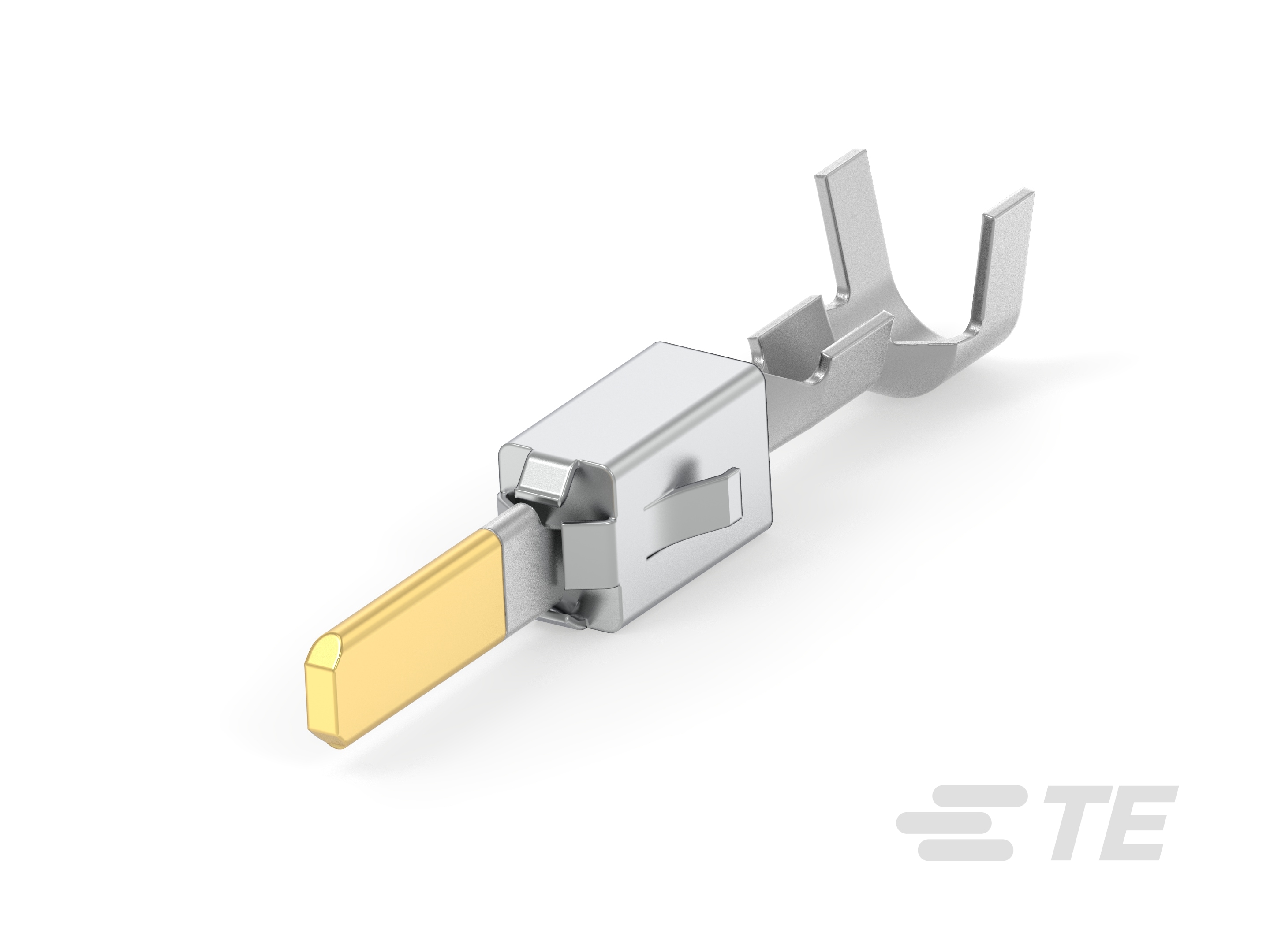

Tab Terminal, 24 – 20 AWG, .2 – .5 mm² Wire, 2.8 mm [.11 in] Tab Width, Gold (Au), Sealable, .8 mm [.031 in] Tab Thickness, Timer Connector System
1-964298-3
Tab Terminal, 24 – 20 AWG, .2 – .5 mm² Wire, 2.8 mm [.11 in] Tab Width, Gold (Au), Sealable, .8 mm [.031 in] Tab Thickness, Timer Connector System
-
- AMP
- Junior Power Timer ,
- Timer Connector System
- TE Internal #: 1-964298-3
- TE Internal Description: TAB A 2.8x0.8 CONTACT CS SWS Au
- All TIMER, RECEPTACLE AND TAB (279)
-
Terminal Type : Tab
-
Wire Size (AWG): 24 – 20
-
Wire Size (mm²): .2 – .5
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Interface Plating : Gold (Au)
Documents
Product Drawings
- PRODUCT GROUP DRAWING TAB 2.8 x 0.8 MM TYPE A ENG_CD_1355364_A10.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-964298-3_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1-964298-3_C.2d_dxf.zip English
- ENG_CVM_CVM_1-964298-3_C.3d_igs.zip English
- ENG_CVM_CVM_1-964298-3_C.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18051-1_G.pdf English
- GER_SS_114-18022_N.pdf German
- ENG_SS_114-18051_L1.pdf English
- ENG_SS_114-18022-20_L.pdf English
- Product Specification S_108-18063_B.tif English
- S_108-18063_B.pdf English
