Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

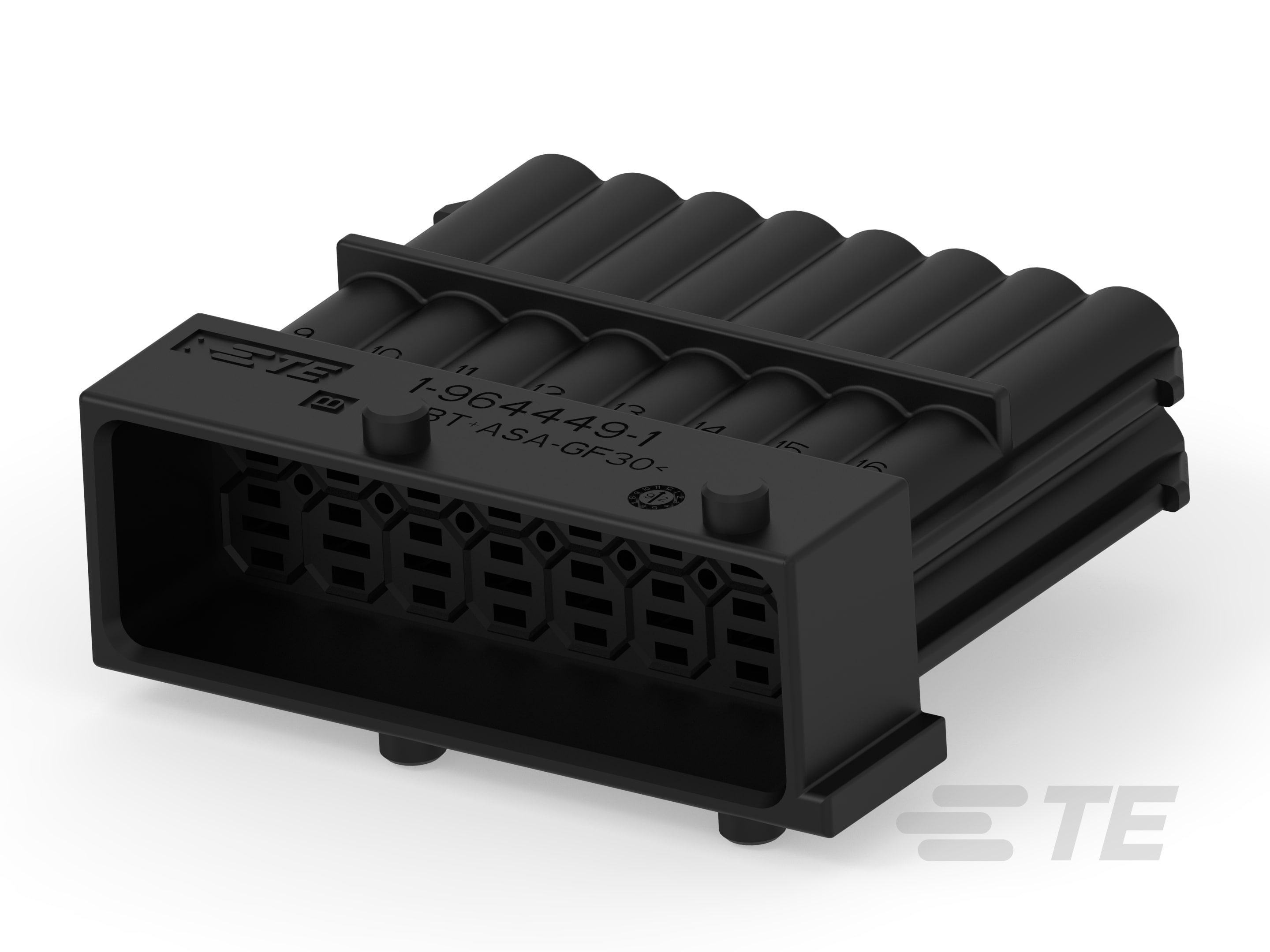

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : On the Terminal

• Sealable : No

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Positions : 16

• Number of Rows : 2

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Black

• Connector & Keying Code : A1

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Size : 2.8mm

• Contact Type : Tab

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PBT

• Centerline (Pitch) : 5 mm [ .197 in ]

• Product Width : 20 mm [ .787 in ]

• Connector Height : 39 mm [ 1.535 in ]

• Product Length : 45.8 mm [ 1.803 in ]

• Row-to-Row Spacing : 6 mm [ .236 in ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Circuit Application : Power & Signal

• Packaging Method : Carton
