1060-16-0677

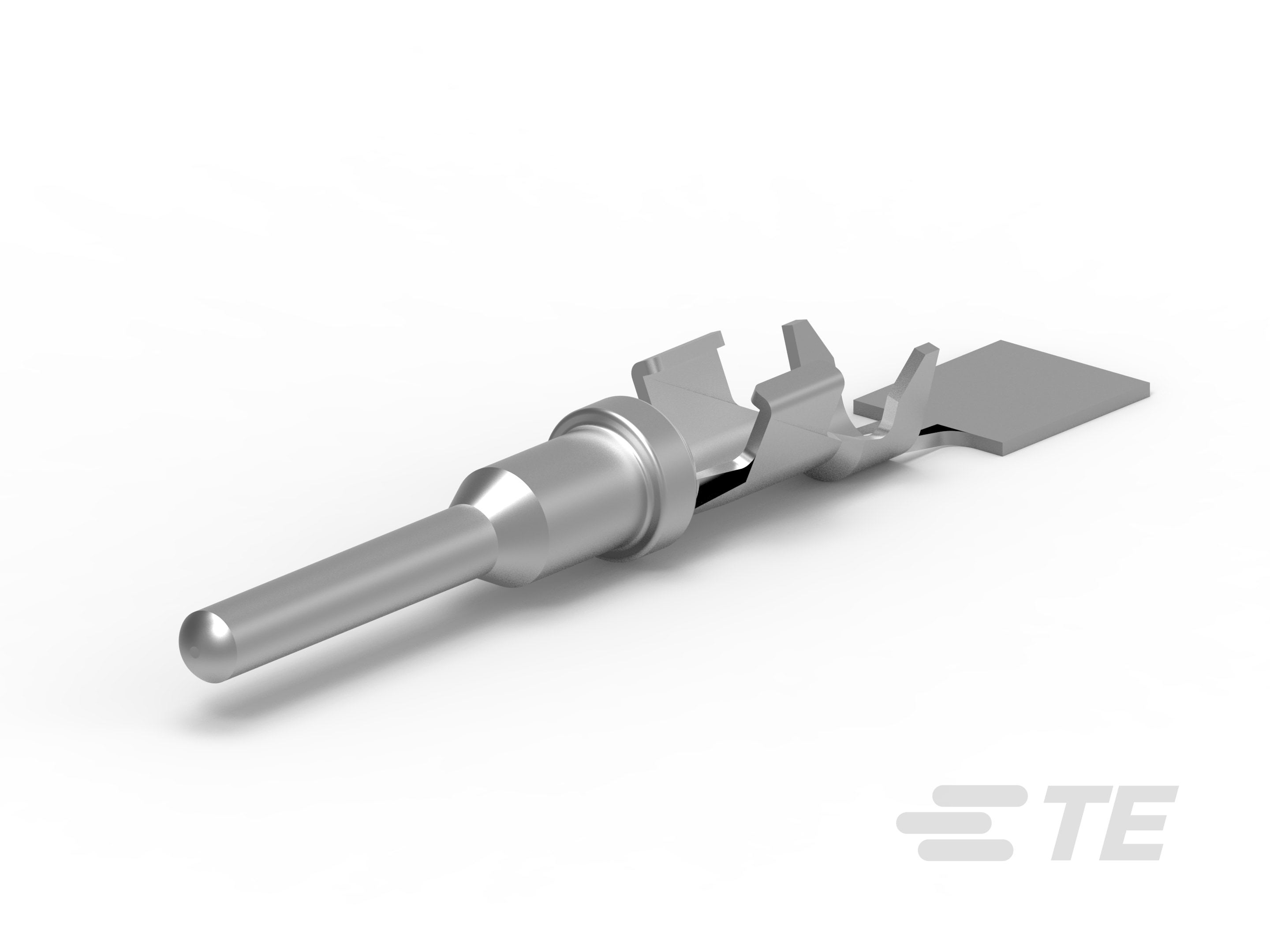

Pin, Pin Diameter 1.5 mm [.062 in], 20 – 16 AWG Wire Size, .5 – 1 mm² Wire Size, Family Seal or Unsealed, DEUTSCH Common Contact, Automotive Terminals
1060-16-0677
Pin, Pin Diameter 1.5 mm [.062 in], 20 – 16 AWG Wire Size, .5 – 1 mm² Wire Size, Family Seal or Unsealed, DEUTSCH Common Contact, Automotive Terminals
-
- DEUTSCH
- DEUTSCH Common Contact
- TE Internal #: 1060-16-0677
- TE Internal Description: PIN, SF, SIZE 16, 16-20, SN/SN
- All DEUTSCH Size 16 Crimp Contacts (32)
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Interface Plating : Nickel (Ni)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 20 – 16
Documents
Product Drawings
- STAMPED CONTACT PIN SIZE 16 ENG_CD_1060-16-06XX_H.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1060-16-0677_J.pdf 3D
- Customer View Model ENG_CVM_CVM_1060-16-0677_J.2d_dxf.zip English
- ENG_CVM_CVM_1060-16-0677_J.3d_igs.zip English
- ENG_CVM_CVM_1060-16-0677_J.3d_stp.zip English
Datasheets & Catalog Pages
- DEUTSCH HD30 & HDP20 CONNECTOR SERIES ENG_CS_8-1773982-0_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151000_P.pdf English
- Product Specification ENG_SS_108-151000_J.pdf English
- Standard Operating Procedure ENG_SS_TEC-407-55_E.pdf English
