1062-14-1088

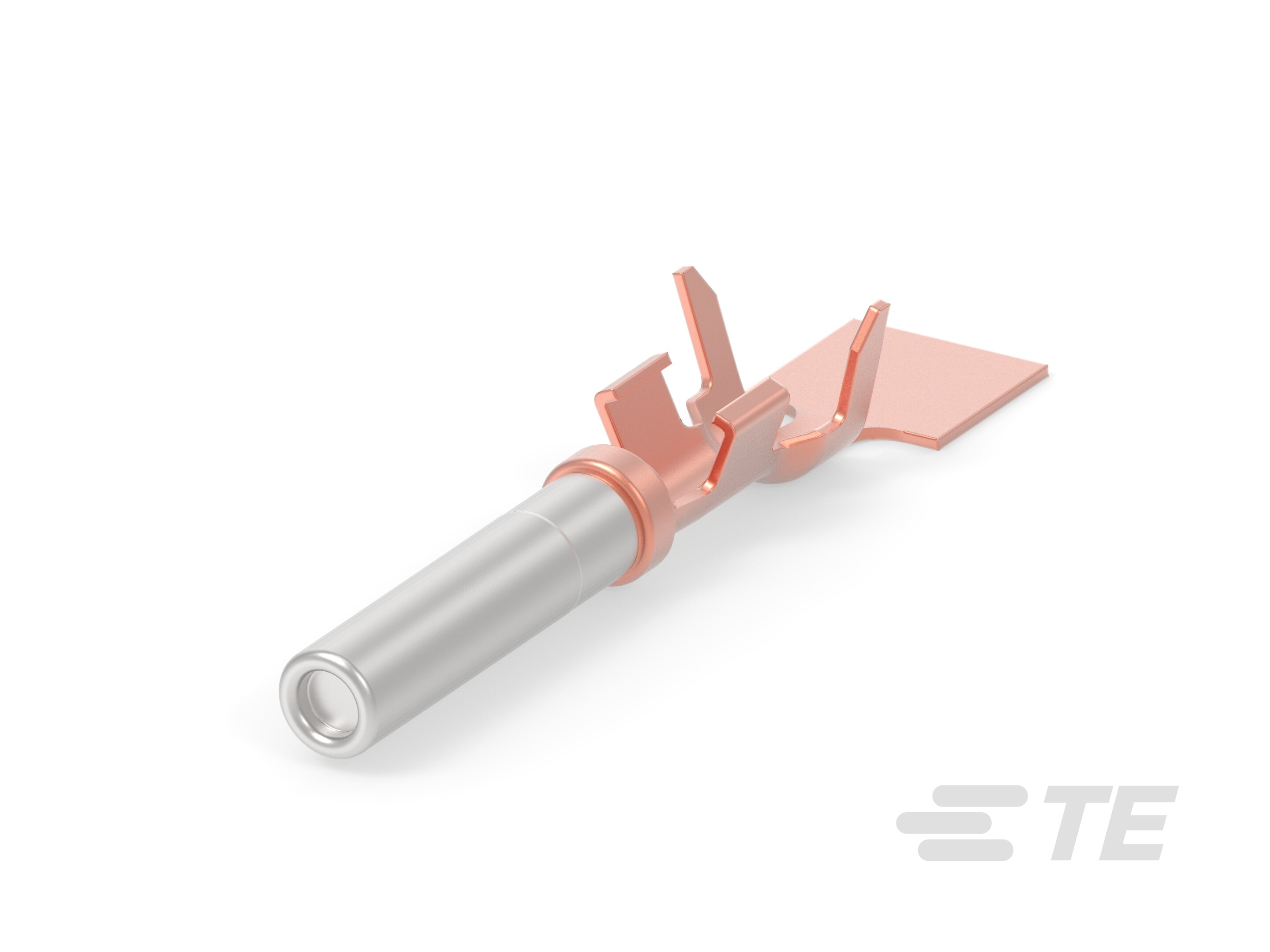

Socket, Pin Diameter 1.5 mm [.062 in], 18 – 14 AWG Wire Size, .75 – 2 mm² Wire Size, Nickel (Ni) Interface Plating, Automotive Terminals
1062-14-1088
Socket, Pin Diameter 1.5 mm [.062 in], 18 – 14 AWG Wire Size, .75 – 2 mm² Wire Size, Nickel (Ni) Interface Plating, Automotive Terminals
- TE Internal #: 1062-14-1088
- TE Internal Description: SOC, SF, SIZE 16, 14-18, PD/NI/AU
- All DEUTSCH Size 16 Crimp Contacts (32)
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]
-
Interface Plating : Nickel (Ni)
-
Operating Temperature (Max) : 150 °C [ 302 °F ]
-
Wire Size (AWG): 18 – 14
Documents
Product Drawings
- SOCKET, STAMPED AND FORMED SIZE 16 14-18AWG ENG_CD_1062-14-10XX_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1062-14-1088_C_c-1062-14-1088-c-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1062-14-1088_C_c-1062-14-1088-c.2d_dxf.zip English
- ENG_CVM_CVM_1062-14-1088_C_c-1062-14-1088-c.3d_igs.zip English
- ENG_CVM_CVM_1062-14-1088_C_c-1062-14-1088-c.3d_stp.zip English
Datasheets & Catalog Pages
- DEUTSCH HD30 & HDP20 CONNECTOR SERIES ENG_CS_8-1773982-0_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151000_P.pdf English
- Product Specification ENG_SS_108-151000_J.pdf English
