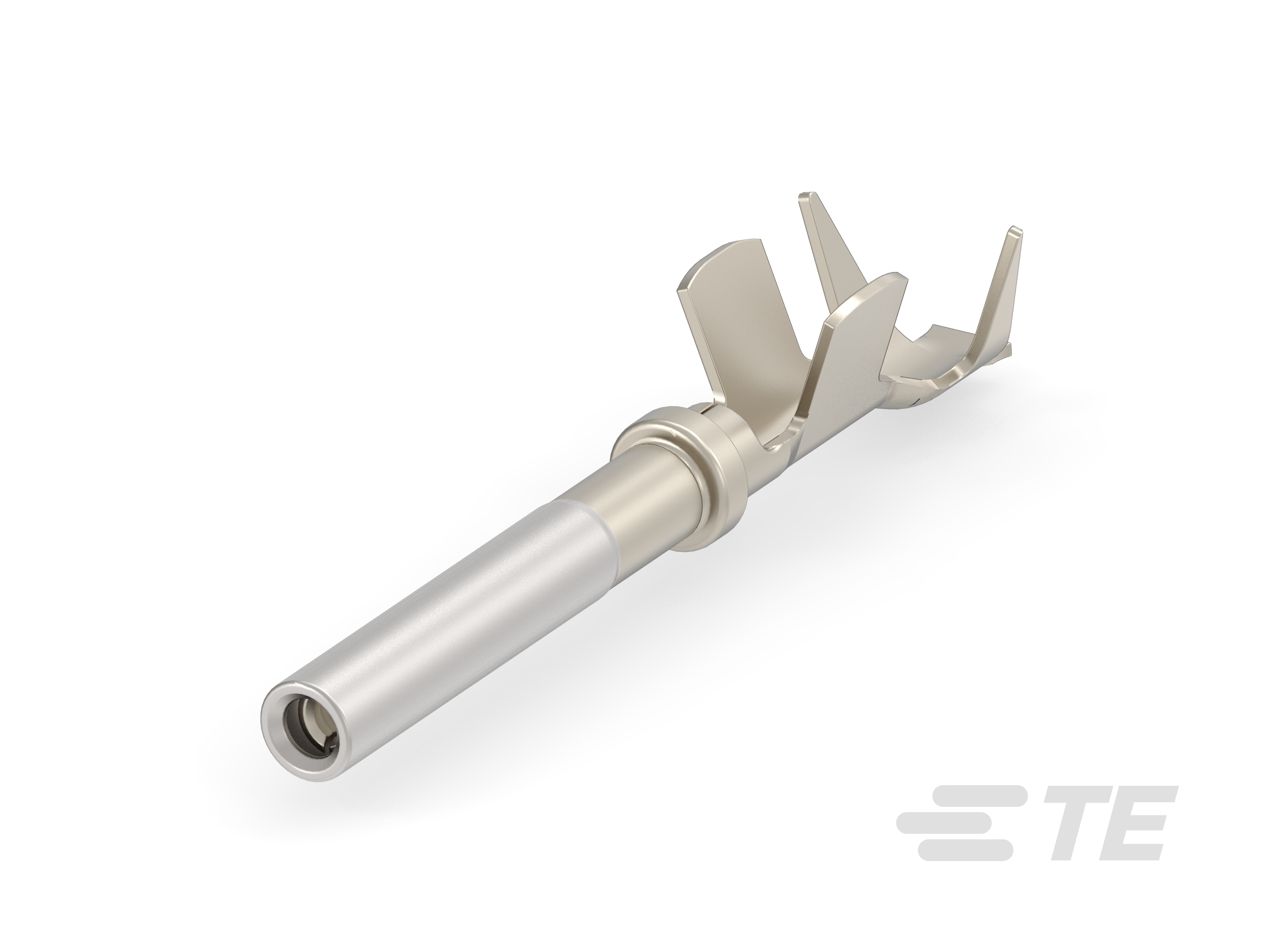

Socket, Pin Diameter 1 mm [.04 in], 22 – 16 AWG Wire Size, .35 – 1.5 mm² Wire Size, DEUTSCH Common Contact, Automotive Terminals
1062-20-0122
Socket, Pin Diameter 1 mm [.04 in], 22 – 16 AWG Wire Size, .35 – 1.5 mm² Wire Size, DEUTSCH Common Contact, Automotive Terminals
-
- enetSEAL+
- DEUTSCH Common Contact
- TE Internal #: 1062-20-0122
- TE Internal Description: SOC, SF, SIZE 20, 16-22, NI/NI
- Alias #: ZPF000000000131949 1062-20-0122SAMPLE 1062-20-0122-SC 1062-20-0122-E 1062-20-0122-S 1062-20-0122-L 1062-20-0122-M 1062-20-0122-MS 1062-20-0122-AS 1062-20-0122-LS
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Interface Plating : Nickel (Ni)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 22 – 16
Documents
Product Drawings
- STAMPED CONTACT SOCKET SIZE 20 ENG_CD_1062-20-01XX_G.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1062-20-0122_D.pdf 3D
- Customer View Model ENG_CVM_CVM_1062-20-0122_D.2d_dxf.zip English
- ENG_CVM_CVM_1062-20-0122_D.3d_igs.zip English
- ENG_CVM_CVM_1062-20-0122_D.3d_stp.zip English
Datasheets & Catalog Pages
- DEUTSCH HD30 & HDP20 CONNECTOR SERIES ENG_CS_8-1773982-0_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151003_H.pdf English
- Product Specification ENG_SS_108-151000_J.pdf English
