1062-20-0277

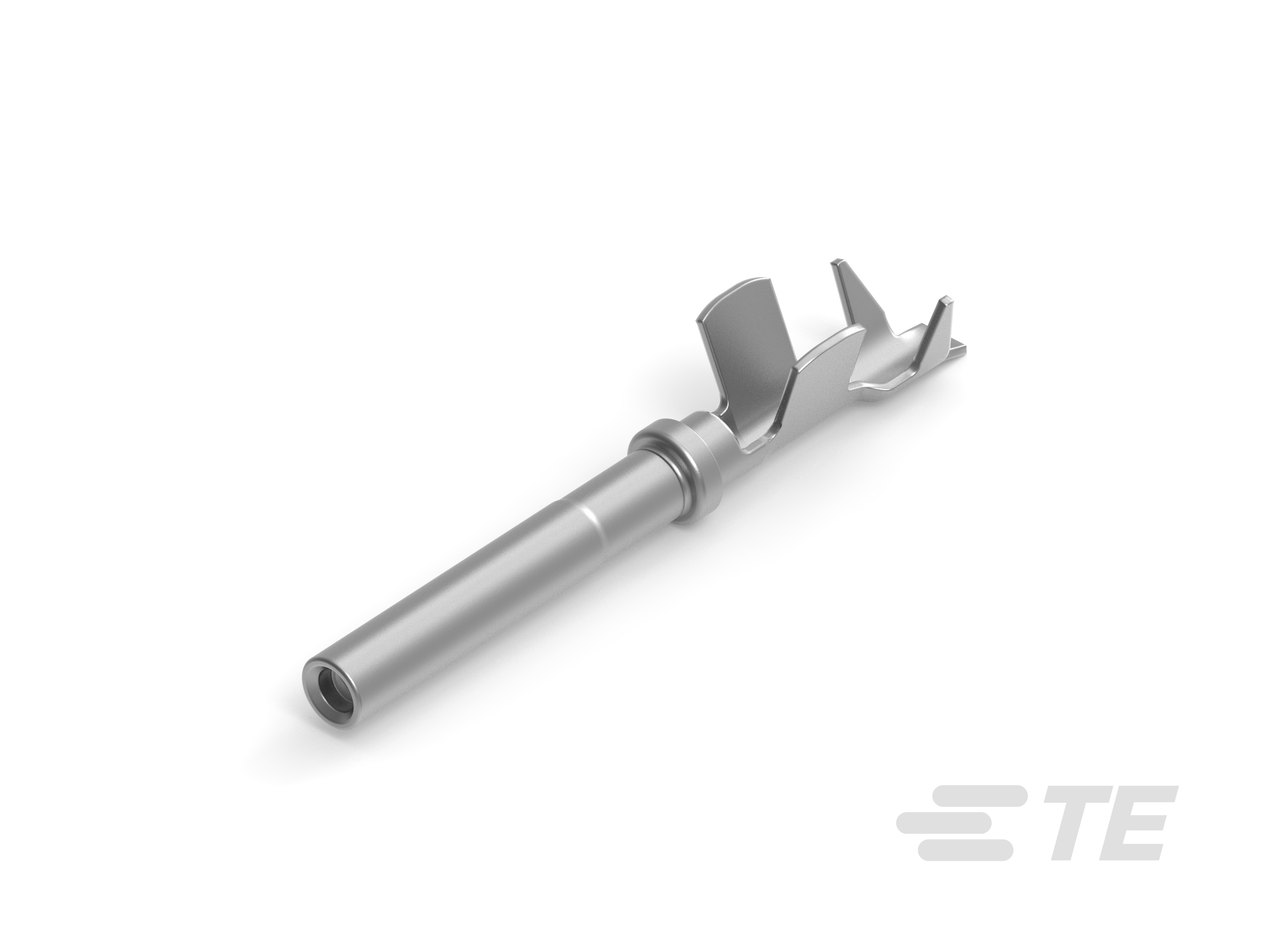

Socket Terminal, Pin Diameter 1 mm [.04 in], 22 – 16 AWG Wire Size, .35 – 1.5 mm² Wire Size, Nickel (Ni) Interface Plating, Terminates To Wire
1062-20-0277
Socket Terminal, Pin Diameter 1 mm [.04 in], 22 – 16 AWG Wire Size, .35 – 1.5 mm² Wire Size, Nickel (Ni) Interface Plating, Terminates To Wire
-
- enetSEAL+
- TE Internal #: 1062-20-0277
- TE Internal Description: SOC, SF, SIZE 20, 16-22, SN/SN
-
Terminal Type : Socket
-
Mating Pin Diameter : 1 mm [ .04 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .35 – 1.5
Documents
Product Drawings
- STAMPED CONTACT SOCKET SIZE 20 ENG_CD_1062-20-02XX_G1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1062-20-0277_D.pdf 3D
- Customer View Model ENG_CVM_CVM_1062-20-0277_D.2d_dxf.zip English
- ENG_CVM_CVM_1062-20-0277_D.3d_igs.zip English
- ENG_CVM_CVM_1062-20-0277_D.3d_stp.zip English
Datasheets & Catalog Pages
- DEUTSCH HD30 & HDP20 CONNECTOR SERIES ENG_CS_8-1773982-0_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151003_H.pdf English
- Product Specification ENG_SS_108-151000_J.pdf English
