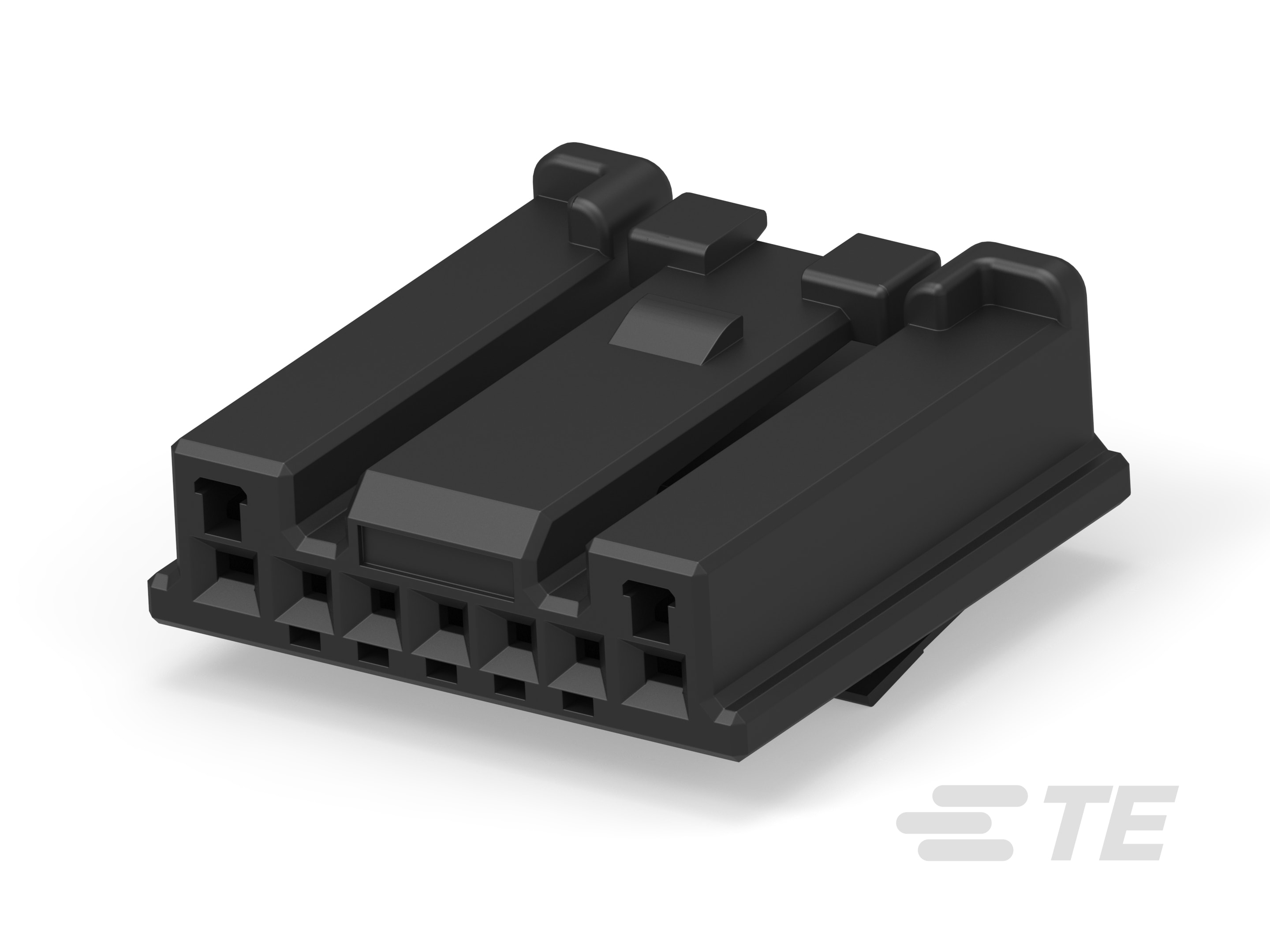

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : .63mm, 1mm

• Mating Tab Width (mm): 1, .64

• Mating Tab Width (in): .025, .04

• Housing Material : PBT

• Centerline (Pitch) : 2.2 mm [ .08 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Bag

• Packaging Quantity : 100

• Connector Height : 8.8 mm [ .35 in ]

• Product Length : 19.3 mm [ .76 in ]

• Product Width : 19 mm [ .75 in ]

• UL Flammability Rating : UL 94HB

• Operating Voltage (VDC): 12

• Number of Positions : 7

• Number of Rows : 1

• Operating Temperature (Max) (°C): 80, 100, 90, 85, 75, 70

• Operating Temperature (Max) (°F): 167, 158, 176, 194, 185, 212

• Operating Temperature Range : -30 – 100 °C [ -22 – 212 °F ]
