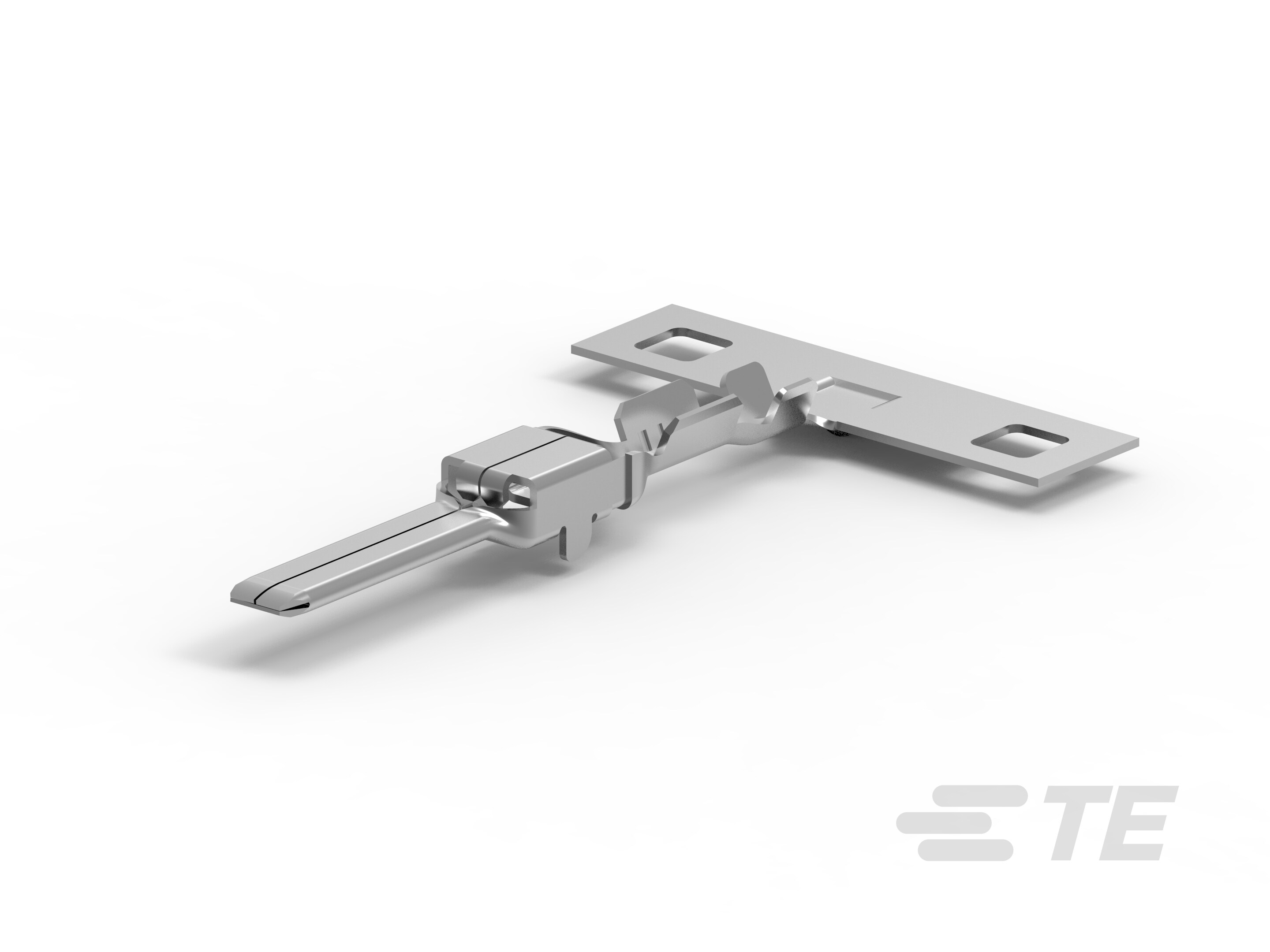

Tab Terminal, 20 – 17 AWG, .5 – 1 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
1326029-2
Tab Terminal, 20 – 17 AWG, .5 – 1 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
-
- AMP
- 1.5/2.8 Connector System
- TE Internal #: 1326029-2
- TE Internal Description: 2.8MM BLADE, UNSEAL,18-20AWG
- All 1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB (37)
-
Terminal Type : Tab
-
Wire Size (AWG): 20 – 17
-
Wire Size (mm²): .5 – 1
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Interface Plating : Tin (Sn)
