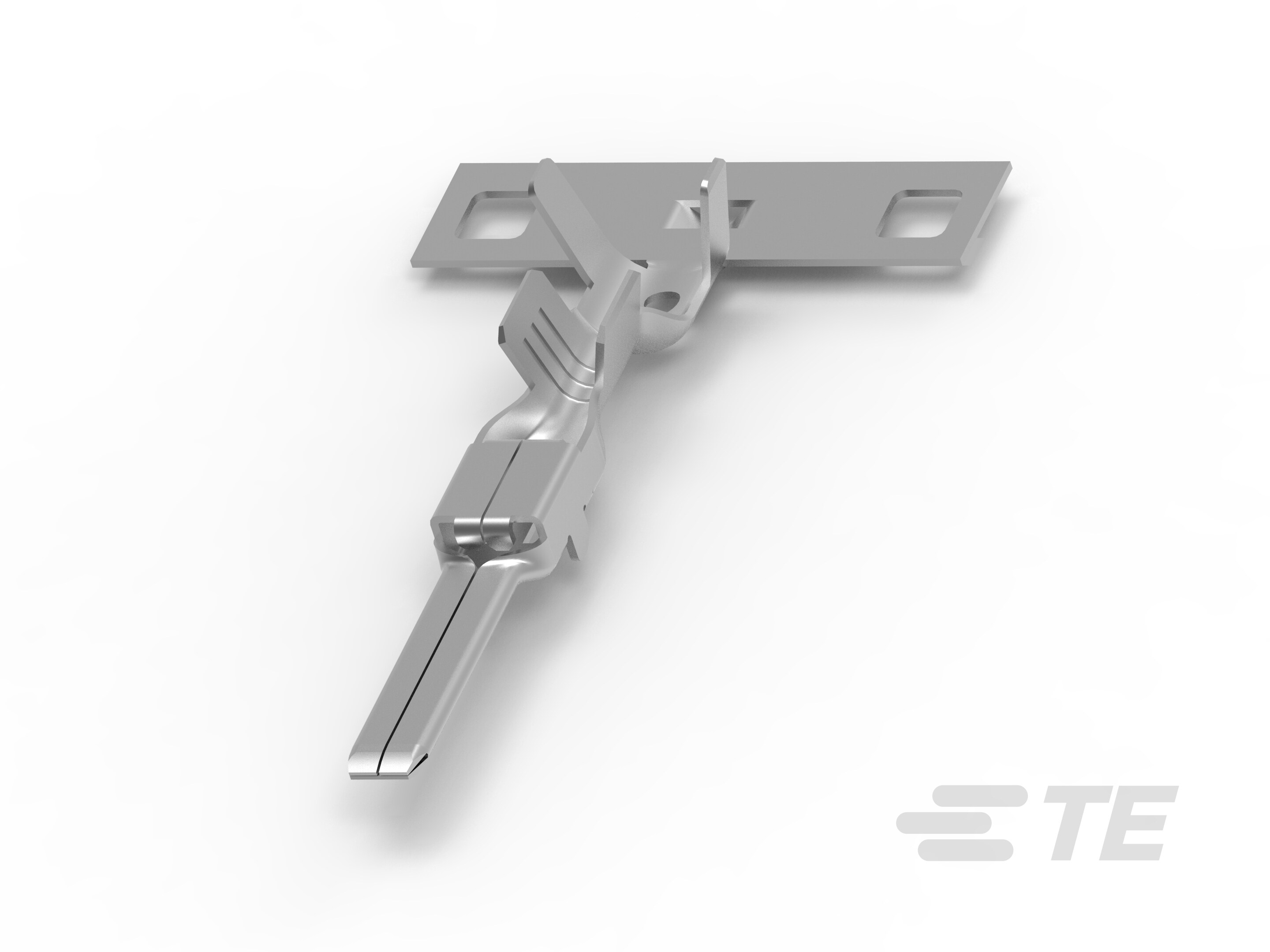

Tab Terminal, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .8 mm [.031 in], 20 – 18 AWG Wire Size, .5 – .75 mm² Wire Size, 1.5/2.8 Connector System
1326031-7
Tab Terminal, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .8 mm [.031 in], 20 – 18 AWG Wire Size, .5 – .75 mm² Wire Size, 1.5/2.8 Connector System
-
- 1.5/2.8 Connector System
- TE Internal #: 1326031-7
- TE Internal Description: 2.8MM BLD,SEAL,20AWG,REVREEL
- All 1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB (37)
-
Terminal Type : Tab
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Mating Tab Thickness : .8 mm [ .031 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Wire Size (AWG): 20 – 18
Documents
Product Drawings
- 2.8mm BLADE, SEALED English
- 2.8mm BLADE, SEALED ENG_CD_1326031_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1326031-7_F.pdf English
- Customer View Model ENG_CVM_1326031-7_F.3d_igs.zip English
- ENG_CVM_1326031-7_F.3d_stp.zip English
- ENG_CVM_1326031-7_F.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-13013_F.pdf English
