1326031-8

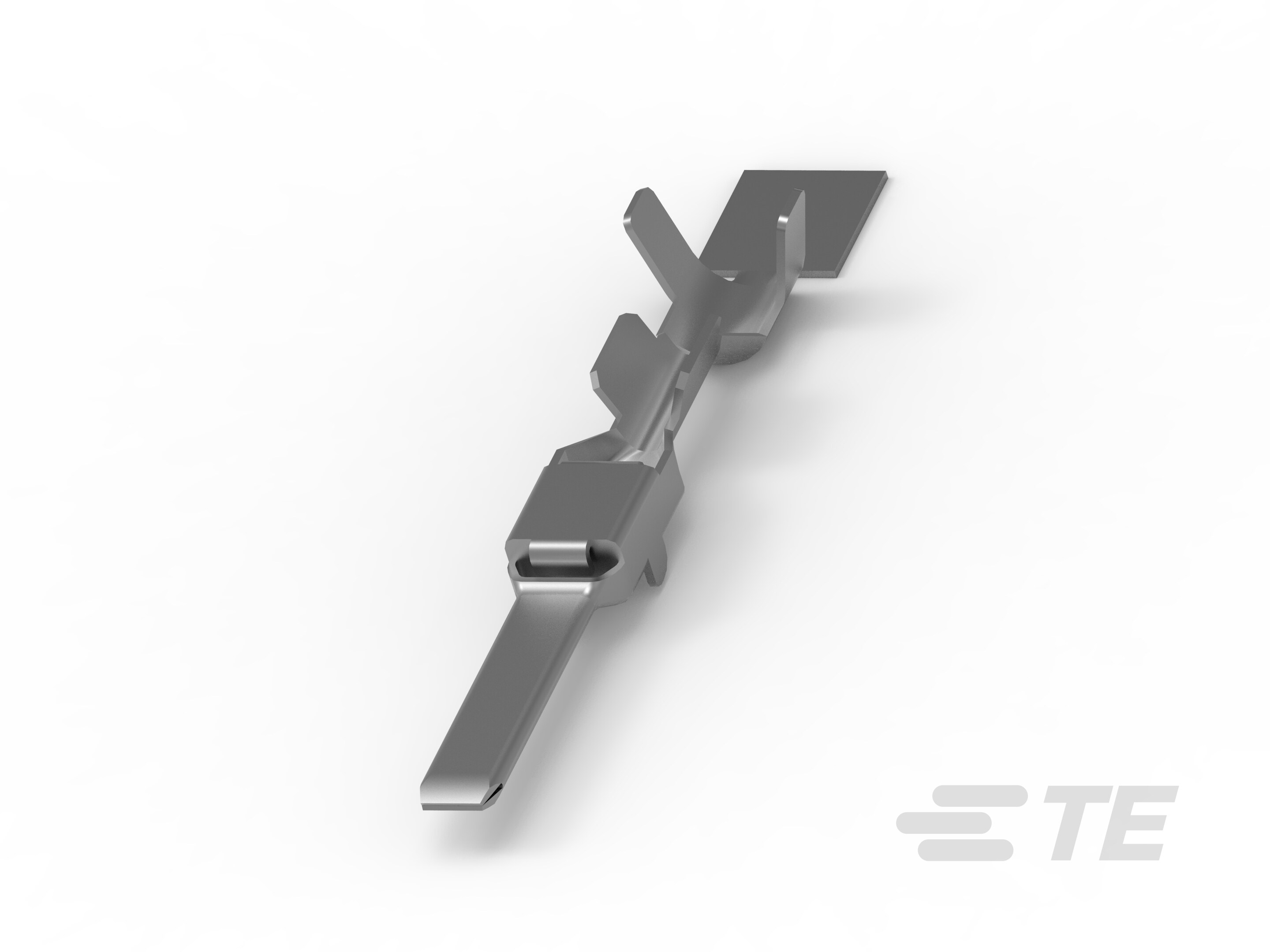

Tab Terminal, 18 AWG, .82 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), Sealable, .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
1326031-8
Tab Terminal, 18 AWG, .82 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), Sealable, .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
-
- AMP
- 1.5/2.8 Connector System
- TE Internal #: 1326031-8
- TE Internal Description: 2.8MM BLD,SEAL,18AWG,REVREEL
- All 1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB (37)
-
Terminal Type : Tab
-
Wire Size (AWG): 18
-
Wire Size (mm²): .82
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- 2.8mm BLADE, SEALED English
- 2.8mm BLADE, SEALED ENG_CD_1326031_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1326031-8_F.pdf English
- Customer View Model ENG_CVM_1326031-8_F.3d_igs.zip English
- ENG_CVM_1326031-8_F.3d_stp.zip English
- ENG_CVM_1326031-8_F.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-13013_F.pdf English
