1326032-2

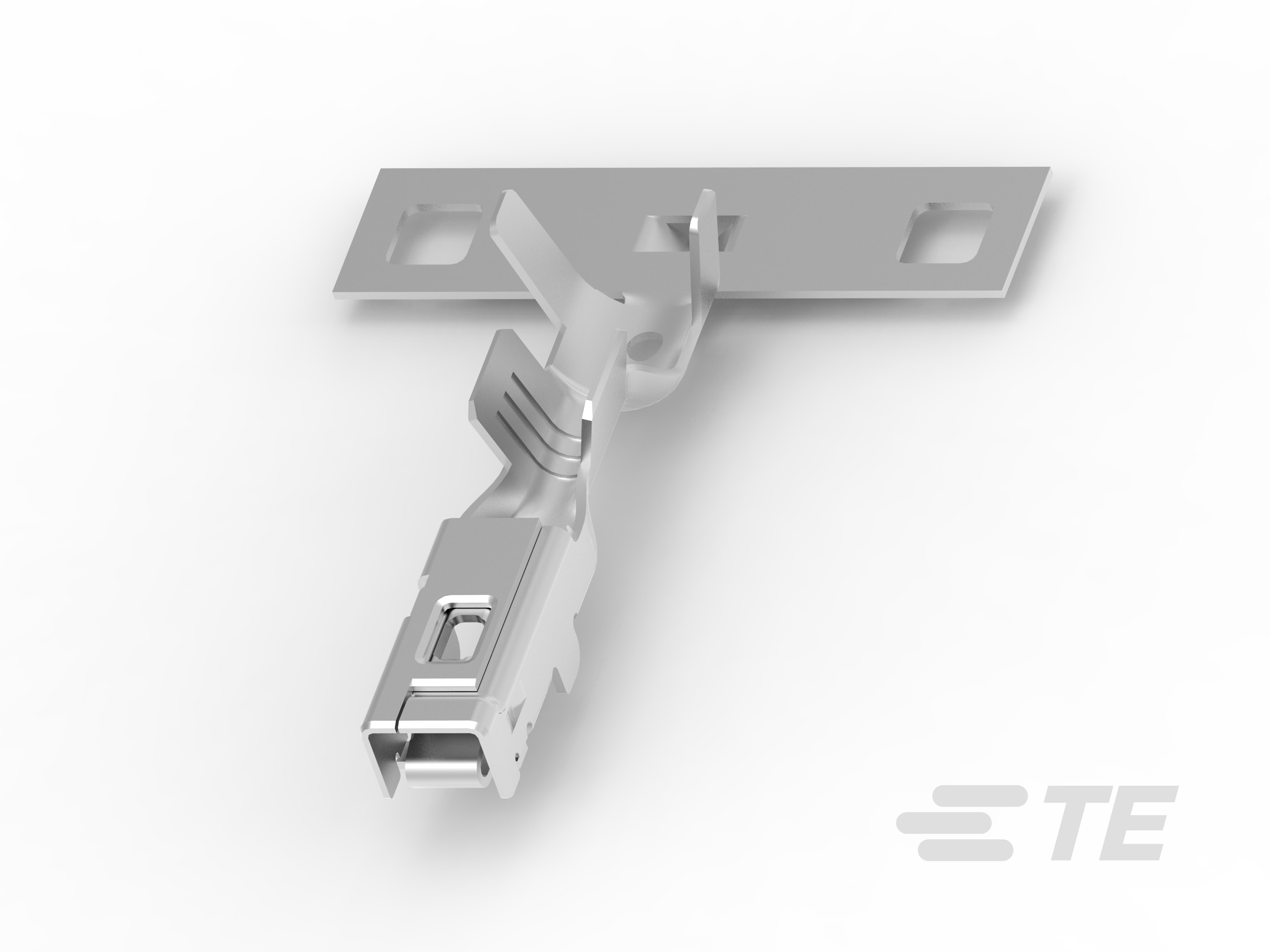

Receptacle, Mating Tab Width 2.8 mm [.11 in], 20 AWG Wire Size, .5 mm² Wire Size, Sealable, 1.5/2.8 Connector System, Automotive Terminals
1326032-2
Receptacle, Mating Tab Width 2.8 mm [.11 in], 20 AWG Wire Size, .5 mm² Wire Size, Sealable, 1.5/2.8 Connector System, Automotive Terminals
-
- 1.5/2.8 Connector System
- TE Internal #: 1326032-2
- TE Internal Description: 2.8MM RECP,SEAL,20AWG
- All 1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB (37)
-
Packaging Method : Reel
-
Interface Plating : Tin (Sn)
-
Wire Size (AWG): 20
-
Tab Length : 21.5 mm [ .85 in ]
-
Primary Locking Feature : Clean Body
Documents
Product Drawings
- 2.8mm RECEPTACLE, SEALED ENG_CD_1326032_E1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1326032-2_K.pdf 3D
- Customer View Model ENG_CVM_CVM_1326032-2_K.2d_dxf.zip English
- ENG_CVM_CVM_1326032-2_K.3d_igs.zip English
- ENG_CVM_CVM_1326032-2_K.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13013_F.pdf English
