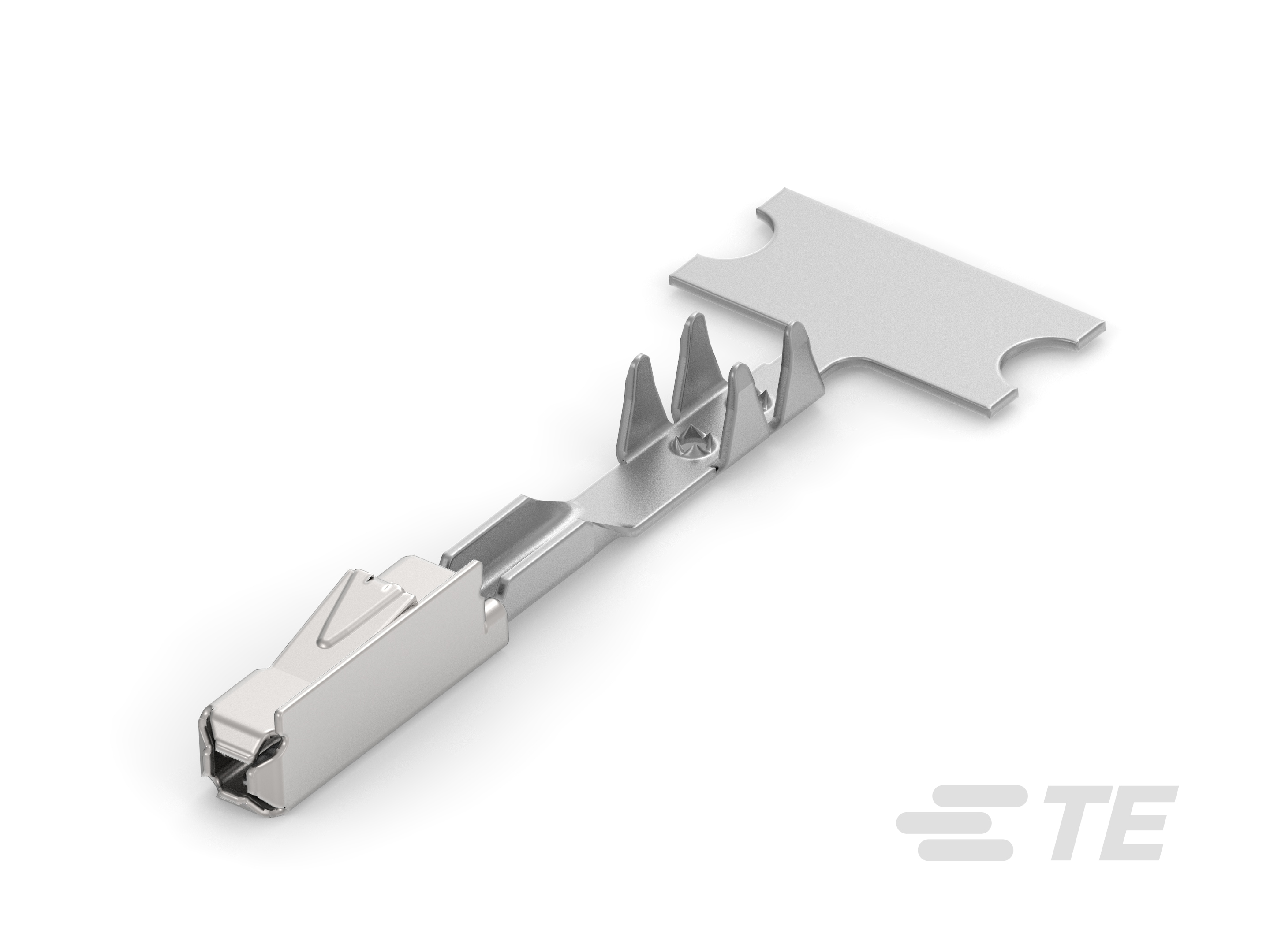

1418887-1
Receptacle, Mating Tab Width .63 mm [.025 in], Tab Thickness .63 mm [.025 in], Tin (Sn) Interface Plating, Terminates To Wire, Automotive Terminals
1418887-1
Receptacle, Mating Tab Width .63 mm [.025 in], Tab Thickness .63 mm [.025 in], Tin (Sn) Interface Plating, Terminates To Wire, Automotive Terminals
-
- MQS
- TE Internal #: 1418887-1
- TE Internal Description: MQS0,63 Sn rec LL unseal. FFC
- All MQS, RECEPTACLE AND TAB (98)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) (°C): 90, 80, 145, 140, 150, 130, 85, 105, 100, 120, 110, 125
-
Operating Temperature (Max) (°F): 230, 284, 185, 176, 221, 302, 248, 257, 293, 212, 194, 266
-
Terminal Transmits : 0 – 24 A (Low Power)
Documents
Product Drawings
- MQS-CONTACT WITH NEW FFC-CRIMP MQS-BUKO mit neuem FFC-Crimp Extr.-Folie ENG_CD_1418887_A5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1418887-1_A_c-1418887-1-a-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1418887-1_A_c-1418887-1-a.2d_dxf.zip English
- ENG_CVM_CVM_1418887-1_A_c-1418887-1-a.3d_igs.zip English
- ENG_CVM_CVM_1418887-1_A_c-1418887-1-a.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18287_C.pdf English
