Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Wire Contact Termination Area Plating Material : Tin

• Contact Fabrication : Stamped & Formed

• Contact Size : .63mm

• Crimp Type : F-Crimp

• Typical Current Rating (A): 7.5

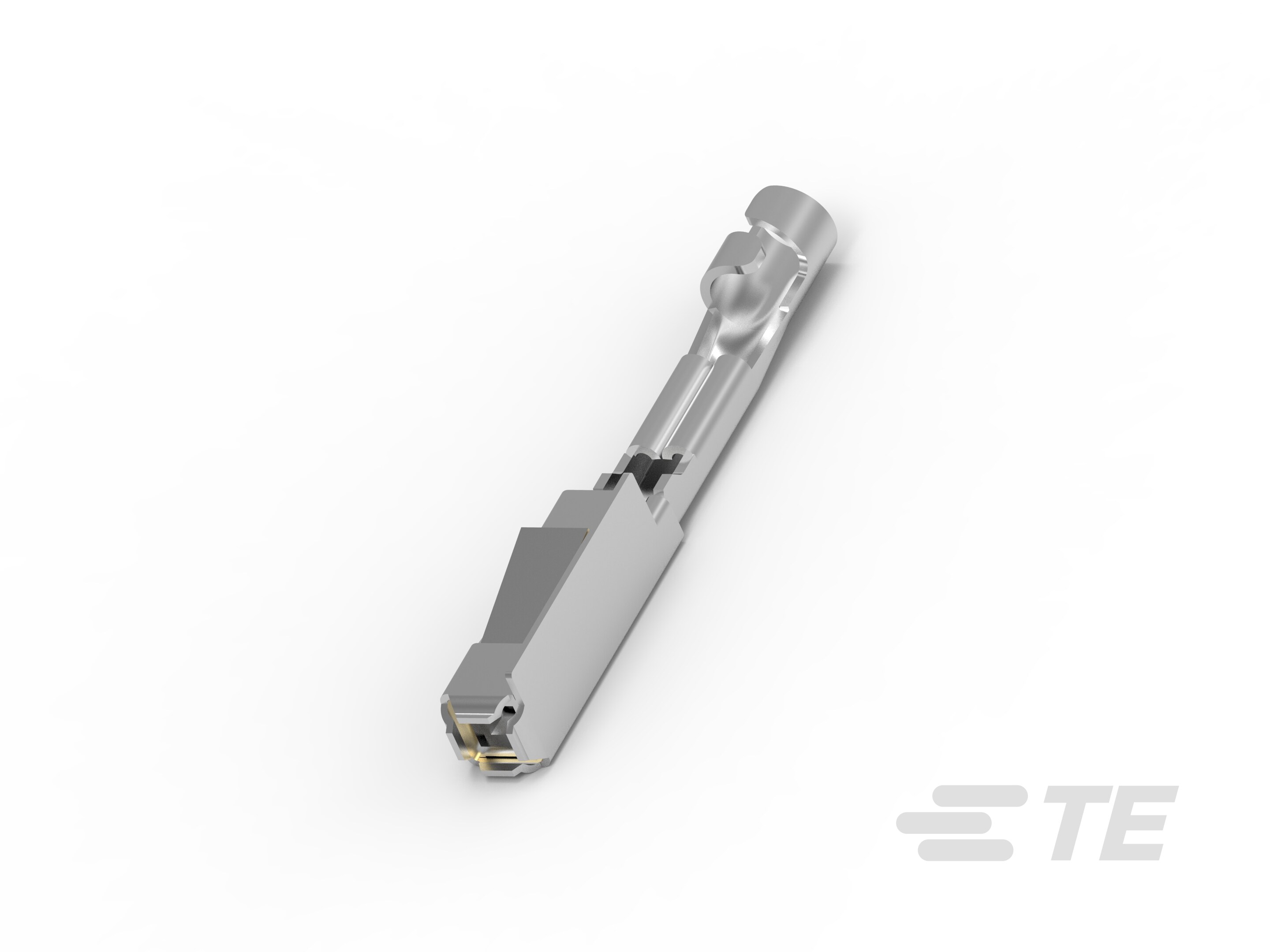

• Terminal Type : Receptacle

• Mating Tab Width : .63 mm [ .025 in ]

• Mating Tab Thickness : .63 mm [ .025 in ]

• Interface Plating : Tin (Sn)

• Compatible Insulation Diameter Range : 1.9 mm [ .075 in ]

• Wire Size (AWG): 24 – 19

• Wire Size (mm²): .2 – .6

• Wire Size Search (mm²): .3, .25, .5, .4, .6, .2

• Wire Size Search (AWG): 20, 21, 22, 23, 24, 19

• Receptacle Style : 180°

• Sealable : No

• Primary Locking Feature : Locking Lance

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire

• Insulation Option : Uninsulated

• Operating Temperature (Max) (°C): 80, 85

• Operating Temperature (Max) (°F): 176, 185

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

• Packaging Quantity : 11000

• Packaging Method : Reel

• Compatible With Wire Base Material : Copper
