1564982-1

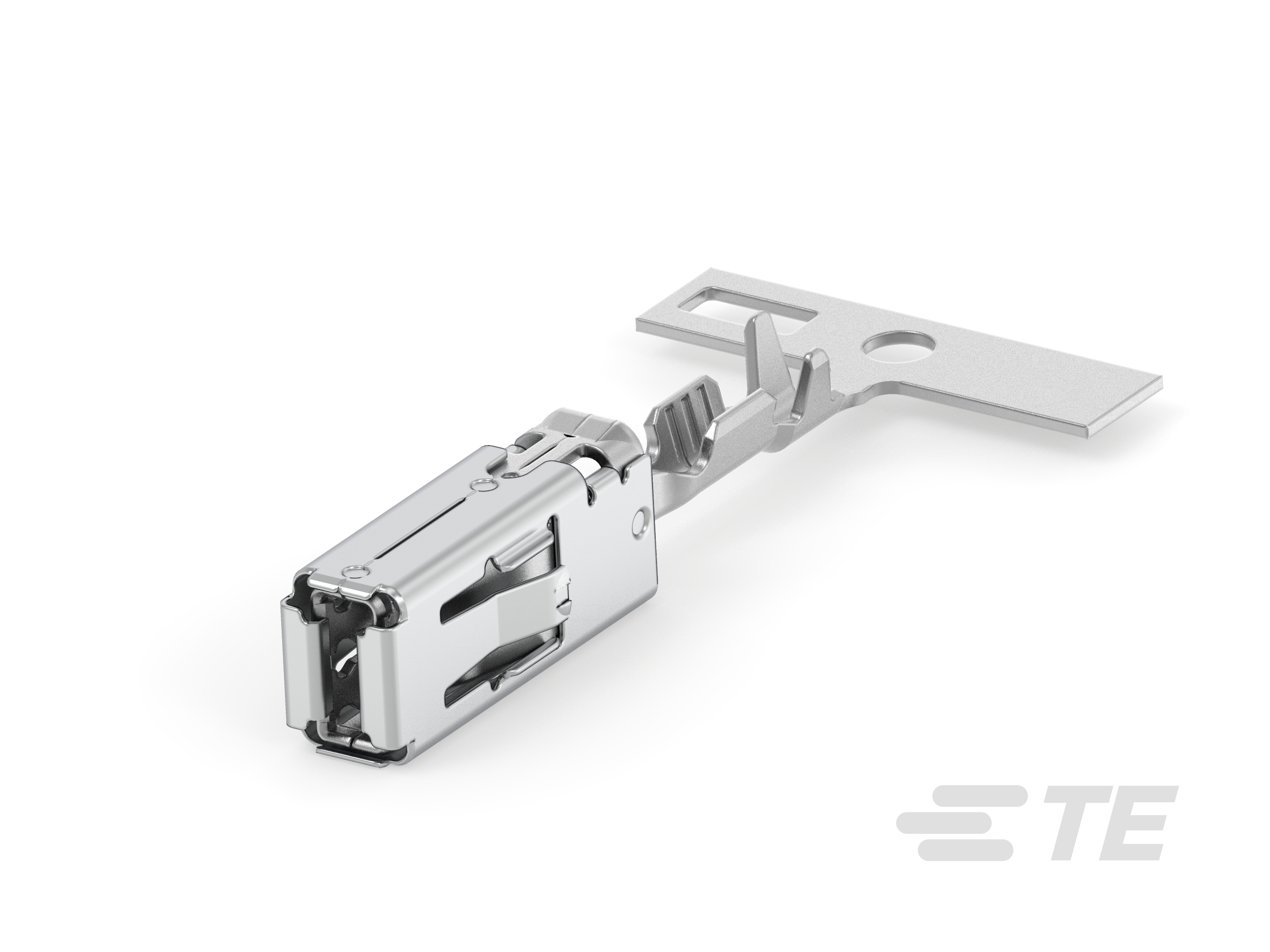

Receptacle, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .6 mm / .8 mm [.024 in / .031 in], AMP MCP 2.8, Automotive Terminals
1564982-1
Receptacle, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .6 mm / .8 mm [.024 in / .031 in], AMP MCP 2.8, Automotive Terminals
-
- AMP MCP
- AMP MCP 2.8
- TE Internal #: 1564982-1
- TE Internal Description: AMP MCP 2.8K, CONTACT
- All AMP MCP, RECEPTACLE AND TAB (109)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) (°C): 80, 130, 120, 100, 110, 90, 125, 85, 105
-
Operating Temperature (Max) (°F): 248, 266, 194, 185, 257, 230, 176, 212, 221
Documents
Product Drawings
- PRODUCT GROUP DRAWING FOR AMP MCP 2.8K ENG_CD_1241437_C18.pdf English
- AMP MCP 2.8K FLAT TYPE RECEPTACLE AMP MCP2.8K Buchsenkontakt English
- AMP MCP 2.8K FLAT TYPE RECEPTACLE AMP MCP2.8K Buchsenkontakt ENG_CD_1564982_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1564982-1_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1564982-1_C.2d_dxf.zip English
- ENG_CVM_CVM_1564982-1_C.3d_igs.zip English
- ENG_CVM_CVM_1564982-1_C.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- GER_SS_114-18387_G.pdf German
- ENG_SS_114-18022-20_L.pdf English
- Product Specification GER_SS_108-18717_B.pdf German
