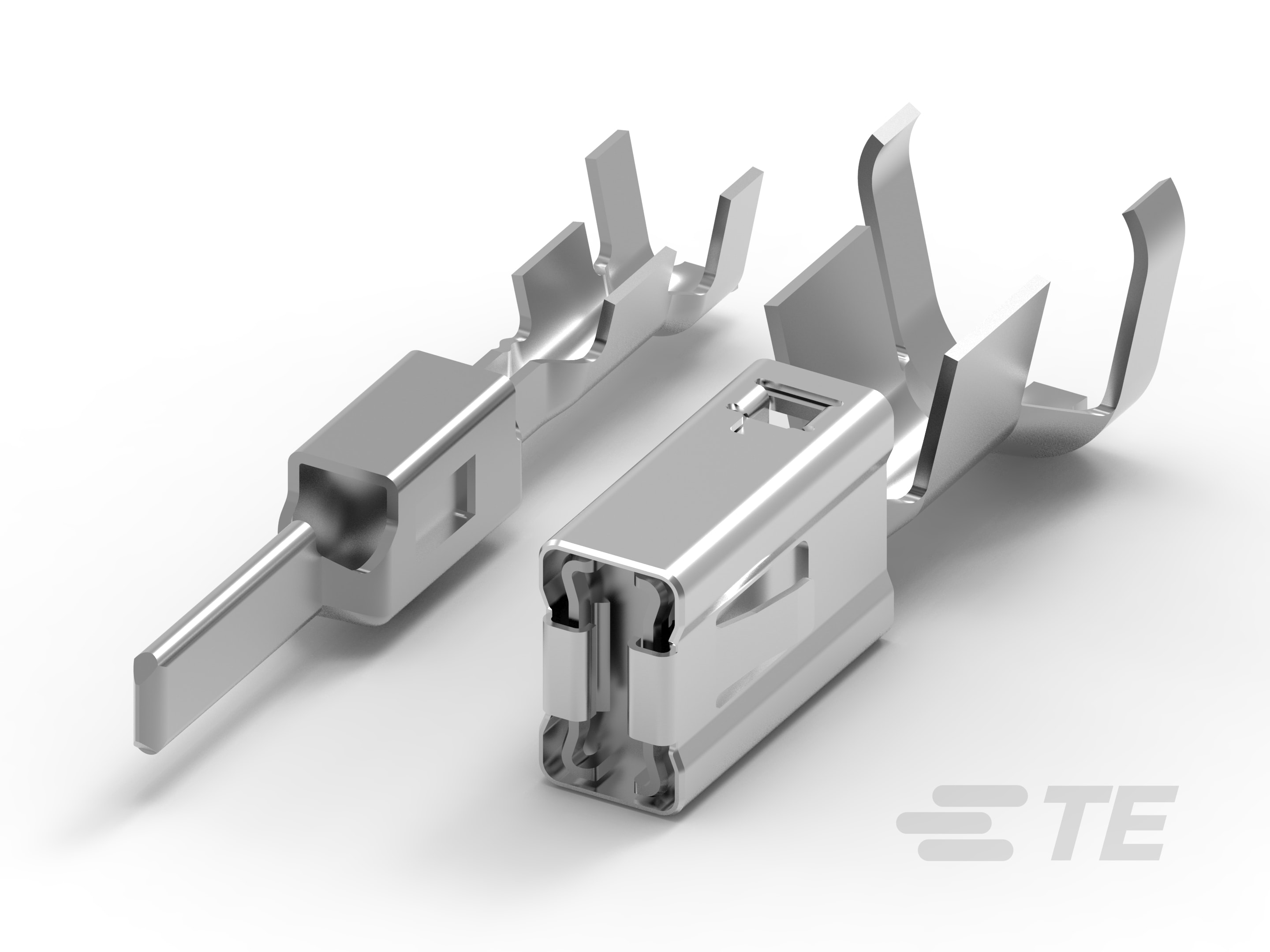

AMP MCP, RECEPTACLE AND TAB

Digital Datasheet|

Product Features

Packaging Method : Reel, Package, Box, Carton
Operating Temperature Range (°C): -40 – 180, -40 – 80, -40 – 120, -40 – 130, -40 – 140, -40 – 150
Operating Temperature Range (°F): -40 – 302, -40 – 248, -40 – 266, -40 – 356, -40 – 176, -40 – 284
Termination Method to Wire & Cable : Crimp
Customer Preferred Contact : Yes, No

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Product Terminates To	Operating Temperature (Max)	Tab Length	Operating Temperature Range
AMP MCP 2.8K, CONTACT	1241390-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2 mm², 1.25 mm², 2.5 mm², 1.5 mm², 1 mm²	13 AWG, 14 AWG, 16 AWG, 15 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 90 °C, 125 °C, 120 °C, 110 °C, 100 °C, 130 °C, 85 °C, 80 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT	1241390-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm, .8 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2 mm², 2.5 mm², 1.25 mm², 1 mm², 1.5 mm²	16 AWG, 17 AWG, 15 AWG, 13 AWG, 14 AWG	Locking Lance	Silver (Ag)	Wire	130 °C, 90 °C, 120 °C, 100 °C, 110 °C, 140 °C, 125 °C, 80 °C, 85 °C, 105 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K,TERMINAL,FUSE 0.64	1-2177995-3	Product Drawing 3D PDF	Receptacle	5.8 mm, 4.8 mm, 6.3 mm	.6 mm	25 – 40 A (Power)	10 AWG	6 mm²	No	-	6 mm²	10 AWG	Locking Lance	Silver (Ag)	Wire	125 °C, 120 °C, 110 °C, 100 °C, 150 °C, 145 °C, 80 °C, 90 °C, 85 °C, 130 °C, 105 °C, 140 °C	-	-40 – 150 °C
AMP MCP 2.8, CONTACT SWS	2-968859-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	11 AWG	4 mm²	Yes	Single Wire Seal (SWS)	4 mm²	11 AWG	Locking Lance	Silver (Ag)	Wire	145 °C, 150 °C, 130 °C, 110 °C, 80 °C, 120 °C, 85 °C, 170 °C, 125 °C, 90 °C, 100 °C, 180 °C, 140 °C, 105 °C	-	-40 – 180 °C
KREUZKONTAKT 2,8MM	968907-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	25 – 40 A (Power)	-	-	No	-	-	-	Clean Body	Tin (Sn)	Printed Circuit Board	90 °C, 85 °C, 100 °C, 80 °C, 110 °C, 105 °C, 120 °C	-	-40 – 120 °C
AMP MCP 1.5K, CONTACT, SWS	1241380-3	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², .6 mm², 1 mm², .5 mm²	20 AWG, 19 AWG, 17 AWG, 18 AWG	Locking Lance	Silver (Ag)	Wire	85 °C, 105 °C, 140 °C, 130 °C, 80 °C, 90 °C, 110 °C, 120 °C, 100 °C, 125 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT	2-968851-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2 mm², 1.5 mm², 2.5 mm²	13 AWG, 14 AWG, 15 AWG	Locking Lance	Silver (Ag)	Wire	120 °C, 110 °C, 100 °C, 85 °C, 145 °C, 105 °C, 180 °C, 130 °C, 125 °C, 170 °C, 150 °C, 90 °C, 80 °C, 140 °C	-	-40 – 180 °C
AMP MCP 2.8K, CONTACT, SWS	1241394-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.6 mm², .5 mm², 1 mm², .75 mm²	20 AWG, 19 AWG, 17 AWG, 18 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 90 °C, 130 °C, 120 °C, 110 °C, 100 °C, 85 °C, 140 °C, 105 °C, 125 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT	2-968853-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	11 AWG	4 mm²	No	-	4 mm²	11 AWG	Locking Lance	Silver (Ag)	Wire	180 °C, 85 °C, 105 °C, 140 °C, 100 °C, 145 °C, 120 °C, 110 °C, 150 °C, 130 °C, 125 °C, 170 °C, 80 °C, 90 °C	-	-40 – 180 °C
AMP MCP 2.8K, CONTACT	1564982-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	24 – 22 AWG	.2 – .35 mm²	No	-	.2 mm², .25 mm², .3 mm²	24 AWG, 23 AWG, 22 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 120 °C, 110 °C, 85 °C, 105 °C, 140 °C, 90 °C, 130 °C, 80 °C, 125 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT SWS	1-968855-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .6 mm², .5 mm², .75 mm²	18 AWG, 17 AWG, 19 AWG, 20 AWG	Locking Lance	Gold (Au)	Wire	100 °C, 130 °C, 150 °C, 145 °C, 90 °C, 110 °C, 120 °C, 125 °C, 85 °C, 105 °C, 140 °C, 80 °C	-	-40 – 150 °C
AMP MCP 1.5K, CONTACT, SWS	1241380-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .6 mm², 1 mm², .75 mm²	17 AWG, 20 AWG, 19 AWG, 18 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 105 °C, 120 °C, 110 °C, 100 °C, 90 °C, 80 °C, 130 °C, 85 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	5-1241410-3	Product Drawing 3D PDF	Receptacle	5.8 mm, 4.8 mm, 6.35 mm	.8 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.2 mm², .5 mm², .25 mm², .4 mm², .3 mm²	21 AWG, 22 AWG, 20 AWG, 24 AWG, 23 AWG	Locking Lance	Silver (Ag)	Wire	105 °C, 120 °C, 125 °C, 110 °C, 100 °C, 130 °C, 90 °C, 80 °C, 85 °C, 140 °C	-	-40 – 140 °C
9.5 CROSS CONTACT F.STAMPED CIRCUIT 0.63	968909-2	Product Drawing 3D PDF	Receptacle	9.5 mm	.8 mm	41 – 100 A (High Power)	-	-	No	-	-	-	Clean Body	Tin Silver (SnAg)	Printed Circuit Board	105 °C, 85 °C, 125 °C, 145 °C, 130 °C, 90 °C, 80 °C, 100 °C, 110 °C, 120 °C, 150 °C, 140 °C	-	-40 – 150 °C
AMP MCP 9.5, CONTACT	1-1241930-1	Product Drawing 3D PDF	Receptacle	9.5 mm	.8 mm	41 – 100 A (High Power)	9 – 7 AWG	6 – 10 mm²	No	-	10 mm², 6 mm², 8 mm²	7 AWG, 8 AWG, 9 AWG	Locking Lance	Tin (Sn)	Wire	120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 130 °C, 80 °C, 85 °C, 90 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT SWS	1-968855-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .75 mm², .5 mm², .6 mm²	19 AWG, 18 AWG, 20 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	110 °C, 100 °C, 120 °C, 125 °C, 85 °C, 80 °C, 105 °C, 130 °C, 90 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT	1241388-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .6 mm², .5 mm², .75 mm²	19 AWG, 20 AWG, 17 AWG, 18 AWG	Locking Lance	Gold (Au)	Wire	130 °C, 85 °C, 140 °C, 80 °C, 150 °C, 110 °C, 90 °C, 145 °C, 125 °C, 105 °C, 120 °C, 100 °C	-	-40 – 150 °C
AMP MCP 2.8K, CONTACT	1241390-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2.5 mm², 1 mm², 2 mm², 1.25 mm², 1.5 mm²	15 AWG, 14 AWG, 16 AWG, 13 AWG, 17 AWG	Locking Lance	Gold (Au)	Wire	80 °C, 120 °C, 125 °C, 85 °C, 105 °C, 140 °C, 100 °C, 110 °C, 90 °C, 130 °C, 145 °C, 150 °C	-	-40 – 150 °C
AMP MCP 1.5K, CONTACT	1418410-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.8 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1.5 mm², 1.25 mm², 1 mm²	17 AWG, 16 AWG, 15 AWG	Locking Lance	Tin (Sn)	Wire	100 °C, 120 °C, 105 °C, 125 °C, 110 °C, 85 °C, 80 °C, 90 °C, 130 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT, SWS	1564324-2	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Locking Lance	Gold (Au)	Wire	145 °C, 150 °C, 90 °C, 130 °C, 80 °C, 105 °C, 140 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 150 °C
2.8MM MCP-E N-SLD REC(LL) CONT	1743465-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	Wire	75 °C, 80 °C, 70 °C	-	-40 – 80 °C
AMP MCP 2.8, CONTACT SWS LANCELESS	1-2282365-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	12 AWG	3 mm²	Yes	Single Wire Seal (SWS)	3 mm²	12 AWG	Clean Body	Tin (Sn)	Wire	120 °C, 110 °C, 90 °C, 100 °C, 125 °C, 105 °C, 85 °C, 80 °C, 130 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT	1241404-1	Product Drawing 3D PDF	Receptacle	5.8 mm, 4.8 mm, 6.3 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2 mm², 2.5 mm², 1.5 mm²	14 AWG, 13 AWG, 15 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 85 °C, 80 °C, 90 °C, 130 °C, 100 °C, 110 °C, 125 °C, 120 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT, SWS	1564984-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm, .8 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .2 mm², .3 mm²	23 AWG, 22 AWG, 24 AWG	Locking Lance	Gold (Au)	Wire	100 °C, 110 °C, 120 °C, 125 °C, 85 °C, 105 °C, 140 °C, 145 °C, 150 °C, 90 °C, 130 °C, 80 °C	-	-40 – 150 °C
AMP MCP 9.5, CONTACT, SWS	1-967590-2	Product Drawing 3D PDF	Receptacle	9.5 mm	1.2 mm	41 – 100 A (High Power)	9 – 7 AWG	6 – 10 mm²	Yes	Single Wire Seal (SWS)	8 mm², 10 mm², 6 mm²	7 AWG, 8 AWG, 9 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 110 °C, 120 °C, 140 °C, 80 °C, 130 °C, 90 °C, 125 °C, 85 °C, 105 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT	1-968851-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	1.5 mm², 2 mm², 2.5 mm²	15 AWG, 13 AWG, 14 AWG	Locking Lance	Tin (Sn)	Wire	85 °C, 125 °C, 80 °C, 130 °C, 90 °C, 100 °C, 105 °C, 120 °C, 110 °C	-	-40 – 130 °C
AMP MCP 9.5, CONTACT	1-967589-1	Product Drawing 3D PDF	Receptacle	9.5 mm	1.2 mm	41 – 100 A (High Power)	7 – 5 AWG	10 – 16 mm²	No	-	12 mm², 10 mm², 16 mm²	5 AWG, 6 AWG, 7 AWG	Locking Lance	Tin (Sn)	Wire	120 °C, 90 °C, 110 °C, 100 °C, 105 °C, 80 °C, 85 °C, 130 °C, 125 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT SWS LANCELESS	1-2282364-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1.5 mm², 2.5 mm²	14 AWG, 15 AWG, 13 AWG	Clean Body	Silver (Ag)	Wire	125 °C, 140 °C, 85 °C, 105 °C, 100 °C, 120 °C, 110 °C, 80 °C, 90 °C, 130 °C	-	-40 – 140 °C
AMP MCP 1.5K, CONTACT	1241374-3	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², .75 mm², 1 mm², .6 mm²	19 AWG, 18 AWG, 17 AWG, 20 AWG	Locking Lance	Silver (Ag)	Wire	110 °C, 130 °C, 80 °C, 90 °C, 100 °C, 140 °C, 105 °C, 85 °C, 125 °C, 120 °C	-	-40 – 140 °C
AMP MCP 2.8K, CONTACT, SWS	1564984-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm, .6 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm², .2 mm²	23 AWG, 22 AWG, 24 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 105 °C, 80 °C, 130 °C, 90 °C, 120 °C, 125 °C, 85 °C, 110 °C, 140 °C	-	-40 – 140 °C
AMP MCP 2.8K, CONTACT	1241388-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .75 mm², .5 mm², .6 mm²	18 AWG, 17 AWG, 19 AWG, 20 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 90 °C, 85 °C, 120 °C, 125 °C, 100 °C, 130 °C, 80 °C, 110 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT	1-968851-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2 mm², 1.5 mm², 2.5 mm²	14 AWG, 15 AWG, 13 AWG	Locking Lance	Gold (Au)	Wire	120 °C, 150 °C, 80 °C, 110 °C, 130 °C, 85 °C, 125 °C, 90 °C, 145 °C, 100 °C, 105 °C, 140 °C	-	-40 – 150 °C
AMP MCP 6.3/4.8K,TERMINAL,FUSE 0.64	1-2208460-3	Product Drawing 3D PDF	Receptacle	5.8 mm, 6.3 mm, 4.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2 mm², 1.5 mm², 2.5 mm²	13 AWG, 15 AWG, 14 AWG	Locking Lance	Silver (Ag)	Wire	105 °C, 140 °C, 130 °C, 90 °C, 80 °C, 110 °C, 145 °C, 85 °C, 120 °C, 125 °C, 150 °C, 100 °C	-	-40 – 150 °C
KREUZKONTAKT 9,5MM	968909-1	Product Drawing 3D PDF	Receptacle	9.5 mm	.8 mm	41 – 100 A (High Power)	-	-	No	-	-	-	Clean Body	Tin (Sn)	Printed Circuit Board	110 °C, 100 °C, 85 °C, 105 °C, 90 °C, 80 °C, 120 °C	-	-40 – 120 °C
AMP MCP 6.3/4.8K, CONTACT	1-1241408-3	Product Drawing 3D PDF	Receptacle	6.3 mm, 5.8 mm, 4.8 mm	.8 mm	25 – 40 A (Power)	11 – 9 AWG	4 – 6 mm²	No	-	6 mm², 5 mm², 4 mm²	9 AWG, 11 AWG, 10 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 120 °C, 110 °C, 125 °C, 105 °C, 85 °C, 140 °C, 80 °C, 130 °C, 90 °C	-	-40 – 140 °C
AMP MCP 1.5K, CONTACT	1564980-2	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	No	-	.2 mm², .3 mm², .25 mm²	24 AWG, 23 AWG, 22 AWG	Locking Lance	Gold (Au)	Wire	110 °C, 100 °C, 120 °C, 125 °C, 85 °C, 140 °C, 105 °C, 80 °C, 90 °C, 150 °C, 145 °C, 130 °C	-	-40 – 150 °C
AMP MCP 2.8, CONTACT SWS	2-968857-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 2.5 mm², 1.5 mm²	15 AWG, 13 AWG, 14 AWG	Locking Lance	Silver (Ag)	Wire	130 °C, 80 °C, 120 °C, 105 °C, 110 °C, 125 °C, 145 °C, 170 °C, 100 °C, 90 °C, 150 °C, 140 °C, 85 °C, 180 °C	-	-40 – 180 °C
KREUZKONTAKT	968047-1	Product Drawing 3D PDF	Receptacle	6.1 mm	.4 mm	41 – 100 A (High Power)	-	-	No	-	-	-	Clean Body	Tin (Sn)	Printed Circuit Board	120 °C, 110 °C, 100 °C, 90 °C, 80 °C, 105 °C, 85 °C	-	-40 – 120 °C
AMP MCP 1.5K, CONTACT, SWS	1564324-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .2 mm², .25 mm²	23 AWG, 22 AWG, 24 AWG	Locking Lance	Tin (Sn)	Wire	110 °C, 120 °C, 125 °C, 85 °C, 105 °C, 80 °C, 130 °C, 90 °C, 100 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1241418-4	Product Drawing 3D PDF	Receptacle	4.8 mm, 5.8 mm, 6.3 mm	.8 mm	25 – 40 A (Power)	11 – 9 AWG	4 – 6 mm²	Yes	Single Wire Seal (SWS)	4 mm², 6 mm², 5 mm²	10 AWG, 9 AWG, 11 AWG	Locking Lance	Tin (Sn)	Wire	130 °C, 120 °C, 110 °C, 100 °C, 105 °C, 85 °C, 125 °C, 90 °C, 80 °C	-	-40 – 130 °C
AMP MCP 2.8K CONTACT PGD	1241396-4	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 2 mm², 1.25 mm², 2.5 mm², 1 mm²	13 AWG, 14 AWG, 15 AWG, 17 AWG, 16 AWG	Locking Lance	Tin Silver (SnAg)	Wire	150 °C, 125 °C, 85 °C, 180 °C, 80 °C, 145 °C, 130 °C, 90 °C, 170 °C, 120 °C, 110 °C, 100 °C, 140 °C, 105 °C	-	-40 – 180 °C
TAB A 2.8x0.8 CONTACT CF SWS Ag	2-964300-2	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², 1 mm², .5 mm², .6 mm²	20 AWG, 19 AWG, 18 AWG, 17 AWG	Locking Lance	Silver (Ag)	Wire	140 °C	25 mm	-40 – 140 °C
AMP MCP 2.8, CONTACT SWS	1-968857-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 2.5 mm², 1.5 mm²	15 AWG, 13 AWG, 14 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 125 °C, 100 °C, 90 °C, 85 °C, 110 °C, 120 °C, 80 °C, 130 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT, SWS	1241396-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 1 mm², 2.5 mm², 2 mm², 1.25 mm²	15 AWG, 13 AWG, 14 AWG, 16 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	110 °C, 120 °C, 100 °C, 85 °C, 90 °C, 80 °C, 105 °C, 130 °C, 125 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT	1241374-2	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 17 AWG, 18 AWG, 19 AWG	Locking Lance	Gold (Au)	Wire	85 °C, 145 °C, 125 °C, 100 °C, 120 °C, 110 °C, 105 °C, 140 °C, 130 °C, 90 °C, 150 °C, 80 °C	-	-40 – 150 °C
AMP MCP 1.5K, CONTACT, SWS	1241380-2	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², .6 mm², 1 mm², .5 mm²	20 AWG, 17 AWG, 19 AWG, 18 AWG	Locking Lance	Gold (Au)	Wire	110 °C, 120 °C, 100 °C, 85 °C, 145 °C, 105 °C, 140 °C, 150 °C, 90 °C, 80 °C, 125 °C, 130 °C	-	-40 – 150 °C
AMP MCP 6.3/4.8K, CONTACT	1241406-3	Product Drawing 3D PDF	Receptacle	4.8 mm, 5.8 mm, 6.3 mm	.8 mm	25 – 40 A (Power)	13 – 11 AWG	2.5 – 4 mm²	No	-	4 mm², 2.5 mm², 3 mm²	13 AWG, 11 AWG, 12 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 130 °C, 90 °C, 140 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K, CONTACT	1241408-1	Product Drawing 3D PDF	Receptacle	4.8 mm, 5.8 mm, 6.3 mm	.8 mm	25 – 40 A (Power)	11 – 9 AWG	4 – 6 mm²	No	-	5 mm², 6 mm², 4 mm²	9 AWG, 10 AWG, 11 AWG	Locking Lance	Tin (Sn)	Wire	130 °C, 90 °C, 125 °C, 85 °C, 80 °C, 120 °C, 105 °C, 100 °C, 110 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1241412-1	Product Drawing 3D PDF	Receptacle	6.3 mm, 4.8 mm, 5.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.6 mm², .5 mm², 1 mm², .75 mm²	17 AWG, 19 AWG, 20 AWG, 18 AWG	Locking Lance	Tin (Sn)	Wire	85 °C, 80 °C, 90 °C, 130 °C, 100 °C, 110 °C, 120 °C, 125 °C, 105 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT	1-968849-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.6 mm², 1 mm², .75 mm², .5 mm²	19 AWG, 18 AWG, 20 AWG, 17 AWG	Locking Lance	Gold (Au)	Wire	125 °C, 85 °C, 105 °C, 140 °C, 100 °C, 110 °C, 120 °C, 80 °C, 90 °C, 130 °C, 150 °C, 145 °C	-	-40 – 150 °C
AMP MCP 2.8, CONTACT	1-968853-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	11 AWG	4 mm²	No	-	4 mm²	11 AWG	Locking Lance	Tin (Sn)	Wire	100 °C, 80 °C, 85 °C, 105 °C, 90 °C, 110 °C, 130 °C, 125 °C, 120 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT SWS	1-968859-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	11 AWG	4 mm²	Yes	Single Wire Seal (SWS)	4 mm²	11 AWG	Locking Lance	Silver (Ag)	Wire	105 °C, 140 °C, 100 °C, 130 °C, 90 °C, 80 °C, 110 °C, 85 °C, 125 °C, 120 °C	-	-40 – 140 °C
AMP MCP 1.5K, CONTACT, SWS	1534160-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.8 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .2 mm², .25 mm²	24 AWG, 23 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	90 °C, 125 °C, 130 °C, 105 °C, 100 °C, 120 °C, 110 °C, 85 °C, 80 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT, SWS	1564324-3	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm², .2 mm²	24 AWG, 23 AWG, 22 AWG	Locking Lance	Silver (Ag)	Wire	130 °C, 80 °C, 140 °C, 85 °C, 105 °C, 90 °C, 125 °C, 110 °C, 120 °C, 100 °C	-	-40 – 140 °C
AMP MCP 9.5, CONTACT	1-967589-2	Product Drawing 3D PDF	Receptacle	9.5 mm	1.2 mm	41 – 100 A (High Power)	7 – 5 AWG	10 – 16 mm²	No	-	12 mm², 10 mm², 16 mm²	6 AWG, 7 AWG, 5 AWG	Locking Lance	Silver (Ag)	Wire	110 °C, 125 °C, 100 °C, 120 °C, 105 °C, 80 °C, 130 °C, 90 °C, 85 °C, 140 °C	-	-40 – 140 °C
AMP MCP 9.5, CONTACT, SWS	1-967590-1	Product Drawing 3D PDF	Receptacle	9.5 mm	1.2 mm	41 – 100 A (High Power)	9 – 7 AWG	6 – 10 mm²	Yes	Single Wire Seal (SWS)	10 mm², 8 mm², 6 mm²	8 AWG, 9 AWG, 7 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 85 °C, 105 °C, 100 °C, 110 °C, 120 °C, 90 °C, 130 °C, 80 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	2-1241418-3	Product Drawing 3D PDF	Receptacle	4.8 mm, 6.3 mm, 5.8 mm	.8 mm	25 – 40 A (Power)	11 – 9 AWG	4 – 6 mm²	Yes	Single Wire Seal (SWS)	6 mm², 4 mm², 5 mm²	9 AWG, 11 AWG, 10 AWG	Locking Lance	Silver (Ag)	Wire	130 °C, 145 °C, 150 °C, 170 °C, 85 °C, 105 °C, 140 °C, 180 °C, 100 °C, 110 °C, 120 °C, 125 °C, 80 °C, 90 °C	-	-40 – 180 °C
AMP MCP 9.5, CONTACT	1-1719386-1	Product Drawing 3D PDF	Receptacle	9.5 mm	.8 mm	41 – 100 A (High Power)	12 – 9 AWG	3 – 6 mm²	No	-	6 mm², 5 mm², 4 mm², 3 mm²	11 AWG, 12 AWG, 9 AWG, 10 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 130 °C, 90 °C, 85 °C, 105 °C, 125 °C, 100 °C, 120 °C, 110 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT LANCELESS	1-1355833-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², .6 mm², 1 mm², .75 mm²	19 AWG, 18 AWG, 17 AWG, 20 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 90 °C, 120 °C, 110 °C, 105 °C, 100 °C, 85 °C, 130 °C, 125 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1-1241418-3	Product Drawing 3D PDF	Receptacle	6.3 mm, 4.8 mm, 5.8 mm	.8 mm	25 – 40 A (Power)	11 – 9 AWG	4 – 6 mm²	Yes	Single Wire Seal (SWS)	4 mm², 5 mm², 6 mm²	11 AWG, 10 AWG, 9 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 120 °C, 110 °C, 125 °C, 80 °C, 85 °C, 140 °C, 105 °C, 130 °C, 90 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT SWS	1-1719506-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	12 AWG	3 mm²	Yes	Single Wire Seal (SWS)	3 mm²	12 AWG	Locking Lance	Tin (Sn)	Wire	110 °C, 120 °C, 90 °C, 130 °C, 80 °C, 105 °C, 100 °C, 125 °C, 85 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT	1241404-3	Product Drawing 3D PDF	Receptacle	5.8 mm, 4.8 mm, 6.3 mm	.8 mm	25 – 40 A (Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2.5 mm², 1.5 mm², 2 mm²	15 AWG, 14 AWG, 13 AWG	Locking Lance	Silver (Ag)	Wire	85 °C, 125 °C, 120 °C, 110 °C, 100 °C, 140 °C, 130 °C, 90 °C, 80 °C, 105 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1241414-3	Product Drawing 3D PDF	Receptacle	5.8 mm, 6.3 mm, 4.8 mm	.8 mm	25 – 40 A (Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1.5 mm², 2.5 mm²	13 AWG, 15 AWG, 14 AWG	Locking Lance	Silver (Ag)	Wire	130 °C, 90 °C, 80 °C, 100 °C, 85 °C, 110 °C, 120 °C, 125 °C, 140 °C, 105 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1241416-3	Product Drawing 3D PDF	Receptacle	6.3 mm, 4.8 mm, 5.8 mm	.8 mm	25 – 40 A (Power)	12 – 11 AWG	3 – 4 mm²	Yes	Single Wire Seal (SWS)	3 mm², 4 mm²	12 AWG, 11 AWG	Locking Lance	Silver (Ag)	Wire	125 °C, 85 °C, 140 °C, 105 °C, 80 °C, 90 °C, 130 °C, 100 °C, 110 °C, 120 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT SWS LANCELESS	1-2282364-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 2 mm², 2.5 mm²	14 AWG, 13 AWG, 15 AWG	Clean Body	Tin (Sn)	Wire	130 °C, 80 °C, 90 °C, 85 °C, 105 °C, 100 °C, 110 °C, 125 °C, 120 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT, SWS	1418884-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², 1.5 mm²	16 AWG, 17 AWG, 15 AWG	Locking Lance	Tin (Sn)	Wire	130 °C, 110 °C, 120 °C, 90 °C, 80 °C, 125 °C, 85 °C, 105 °C, 100 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT	1564980-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	22 AWG, 24 AWG, 23 AWG	Locking Lance	Tin (Sn)	Wire	100 °C, 110 °C, 120 °C, 85 °C, 125 °C, 105 °C, 80 °C, 130 °C, 90 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT, SWS	1564984-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm, .6 mm	25 – 40 A (Power)	24 – 22 AWG	.2 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm², .2 mm²	22 AWG, 24 AWG, 23 AWG	Locking Lance	Tin (Sn)	Wire	110 °C, 120 °C, 130 °C, 90 °C, 80 °C, 100 °C, 125 °C, 105 °C, 85 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT	1-968849-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², .6 mm², .75 mm², 1 mm²	20 AWG, 17 AWG, 18 AWG, 19 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 90 °C, 130 °C, 110 °C, 100 °C, 105 °C, 140 °C, 120 °C, 125 °C, 85 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT	1-968853-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	11 AWG	4 mm²	No	-	4 mm²	11 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 110 °C, 120 °C, 125 °C, 130 °C, 105 °C, 140 °C, 80 °C, 90 °C, 85 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT SWS	1-968857-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1.5 mm², 2.5 mm²	14 AWG, 15 AWG, 13 AWG	Locking Lance	Gold (Au)	Wire	130 °C, 125 °C, 85 °C, 100 °C, 120 °C, 110 °C, 140 °C, 105 °C, 150 °C, 90 °C, 80 °C, 145 °C	-	-40 – 150 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1241414-1	Product Drawing 3D PDF	Receptacle	6.3 mm, 5.8 mm, 4.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 2.5 mm², 1.5 mm²	15 AWG, 14 AWG, 13 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 90 °C, 130 °C, 100 °C, 120 °C, 110 °C, 125 °C, 85 °C, 105 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT	5-1241400-1	Product Drawing 3D PDF	Receptacle	5.8 mm, 4.8 mm, 6.3 mm	.8 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	No	-	.5 mm², .4 mm², .3 mm², .25 mm², .2 mm²	23 AWG, 24 AWG, 21 AWG, 20 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	90 °C, 130 °C, 125 °C, 100 °C, 80 °C, 110 °C, 85 °C, 105 °C, 120 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	5-1241410-1	Product Drawing 3D PDF	Receptacle	4.8 mm, 6.3 mm, 5.8 mm	.8 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .4 mm², .3 mm², .25 mm², .2 mm²	24 AWG, 23 AWG, 22 AWG, 20 AWG, 21 AWG	Locking Lance	Tin (Sn)	Wire	90 °C, 100 °C, 80 °C, 110 °C, 130 °C, 105 °C, 125 °C, 85 °C, 120 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT	1241374-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², 1 mm², .75 mm², .6 mm²	17 AWG, 20 AWG, 19 AWG, 18 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 120 °C, 110 °C, 100 °C, 90 °C, 125 °C, 80 °C, 130 °C, 85 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT, SWS	1418884-3	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 1 mm², 1.25 mm²	15 AWG, 16 AWG, 17 AWG	Locking Lance	Silver (Ag)	Wire	140 °C, 105 °C, 85 °C, 125 °C, 120 °C, 100 °C, 110 °C, 130 °C, 90 °C, 80 °C	-	-40 – 140 °C
AMP MCP 2.8, CONTACT SWS	1-968855-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², .5 mm², 1 mm², .6 mm²	18 AWG, 17 AWG, 20 AWG, 19 AWG	Locking Lance	Silver (Ag)	Wire	130 °C, 90 °C, 80 °C, 105 °C, 140 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 140 °C
AMP MCP 9.5, CONTACT	1-967588-1	Product Drawing 3D PDF	Receptacle	9.5 mm	1.2 mm	41 – 100 A (High Power)	9 – 7 AWG	6 – 10 mm²	No	-	10 mm², 6 mm², 8 mm²	9 AWG, 8 AWG, 7 AWG	Locking Lance	Tin (Sn)	Wire	130 °C, 90 °C, 105 °C, 80 °C, 125 °C, 85 °C, 100 °C, 120 °C, 110 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT	1-968851-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2 mm², 1.5 mm², 2.5 mm²	13 AWG, 15 AWG, 14 AWG	Locking Lance	Silver (Ag)	Wire	85 °C, 130 °C, 140 °C, 105 °C, 125 °C, 100 °C, 80 °C, 90 °C, 110 °C, 120 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K, CONTACT	2-1241408-3	Product Drawing 3D PDF	Receptacle	6.3 mm, 5.8 mm, 4.8 mm	.8 mm	25 – 40 A (Power)	11 – 9 AWG	4 – 6 mm²	No	-	5 mm², 4 mm², 6 mm²	10 AWG, 9 AWG, 11 AWG	Locking Lance	Silver (Ag)	Wire	125 °C, 120 °C, 110 °C, 180 °C, 140 °C, 105 °C, 85 °C, 170 °C, 150 °C, 145 °C, 130 °C, 90 °C, 80 °C, 100 °C	-	-40 – 180 °C
AMP MCP 1.5K, CONTACT	1241376-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.75 mm², .5 mm², .6 mm², 1 mm²	18 AWG, 20 AWG, 17 AWG, 19 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 100 °C, 125 °C, 85 °C, 105 °C, 130 °C, 110 °C, 90 °C, 120 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT, SWS	1241394-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.5 mm², 1 mm², .6 mm², .75 mm²	18 AWG, 20 AWG, 19 AWG, 17 AWG	Locking Lance	Gold (Au)	Wire	130 °C, 145 °C, 80 °C, 150 °C, 140 °C, 90 °C, 110 °C, 120 °C, 100 °C, 125 °C, 85 °C, 105 °C	-	-40 – 150 °C
AMP MCP 2.8K, CONTACT, SWS	1241396-2	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 2.5 mm², 1.25 mm², 1.5 mm², 1 mm²	15 AWG, 16 AWG, 17 AWG, 13 AWG, 14 AWG	Locking Lance	Gold (Au)	Wire	100 °C, 125 °C, 110 °C, 120 °C, 90 °C, 140 °C, 145 °C, 105 °C, 85 °C, 130 °C, 150 °C, 80 °C	-	-40 – 150 °C
AMP MCP 2.8K, CONTACT, SWS	1241396-3	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm	0 – 24 A (Low Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², 2 mm², 1.5 mm², 2.5 mm²	17 AWG, 16 AWG, 15 AWG, 13 AWG, 14 AWG	Locking Lance	Silver (Ag)	Wire	105 °C, 140 °C, 100 °C, 110 °C, 120 °C, 125 °C, 80 °C, 90 °C, 130 °C, 85 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K, CONTACT	1241402-1	Product Drawing 3D PDF	Receptacle	5.8 mm, 6.3 mm, 4.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.6 mm², .5 mm², 1 mm², .75 mm²	17 AWG, 18 AWG, 20 AWG, 19 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 100 °C, 110 °C, 120 °C, 80 °C, 90 °C, 130 °C, 85 °C, 125 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT	1241402-3	Product Drawing 3D PDF	Receptacle	4.8 mm, 5.8 mm, 6.3 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .5 mm², .75 mm², .6 mm²	19 AWG, 18 AWG, 17 AWG, 20 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 90 °C, 130 °C, 80 °C, 85 °C, 125 °C, 120 °C, 110 °C, 140 °C, 105 °C	-	-40 – 140 °C
AMP MCP 6.3/4.8K, CONTACT	1241406-1	Product Drawing 3D PDF	Receptacle	5.8 mm, 4.8 mm, 6.3 mm	.8 mm	25 – 40 A (Power)	13 – 11 AWG	2.5 – 4 mm²	No	-	3 mm², 4 mm², 2.5 mm²	11 AWG, 13 AWG, 12 AWG	Locking Lance	Tin (Sn)	Wire	120 °C, 125 °C, 85 °C, 105 °C, 110 °C, 80 °C, 90 °C, 130 °C, 100 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K, CONTACT, SWS	1241412-3	Product Drawing 3D PDF	Receptacle	5.8 mm, 6.3 mm, 4.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .6 mm², .75 mm², .5 mm²	20 AWG, 17 AWG, 18 AWG, 19 AWG	Locking Lance	Silver (Ag)	Wire	85 °C, 140 °C, 105 °C, 125 °C, 120 °C, 100 °C, 110 °C, 130 °C, 90 °C, 80 °C	-	-40 – 140 °C
2.8MM MCP-E N-SLD REC(S) CONT	1743162-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.8 mm², .6 mm², .5 mm², .4 mm², .3 mm²	19 AWG, 22 AWG, 21 AWG, 20 AWG, 18 AWG	Clean Body	Tin (Sn)	Wire	-	-	-
2.8MM MCP-E N-SLD REC(L) CONT	1743163-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	25 – 40 A (Power)	16 – 14 AWG	1.25 – 2 mm²	No	-	2 mm², 1.25 mm², 1.5 mm²	16 AWG, 15 AWG, 14 AWG	Clean Body	Tin (Sn)	Wire	-	-	-
AMP MCP 1.5K, CONTACT	1418408-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², 1 mm², .75 mm², .6 mm²	18 AWG, 19 AWG, 17 AWG, 20 AWG	Locking Lance	Tin (Sn)	Wire	100 °C, 120 °C, 110 °C, 105 °C, 125 °C, 85 °C, 90 °C, 80 °C, 130 °C	-	-40 – 130 °C
AMP MCP 9.5, CONTACT, SWS	1-967591-1	Product Drawing 3D PDF	Receptacle	9.5 mm	1.2 mm	41 – 100 A (High Power)	7 – 5 AWG	10 – 16 mm²	Yes	Single Wire Seal (SWS)	10 mm², 12 mm², 16 mm²	5 AWG, 6 AWG, 7 AWG	Locking Lance	Tin (Sn)	Wire	120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 130 °C, 80 °C, 85 °C, 90 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT	1-968849-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .6 mm², .5 mm², .75 mm²	18 AWG, 19 AWG, 20 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	90 °C, 130 °C, 85 °C, 105 °C, 120 °C, 125 °C, 110 °C, 100 °C, 80 °C	-	-40 – 130 °C
AMP MCP 2.8K, CONTACT	1564982-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.6 mm, .8 mm	25 – 40 A (Power)	24 – 22 AWG	.2 – .35 mm²	No	-	.2 mm², .25 mm², .3 mm²	24 AWG, 23 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 130 °C, 120 °C, 100 °C, 110 °C, 90 °C, 125 °C, 85 °C, 105 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT, SWS	1534162-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .6 mm², 1 mm², .75 mm²	18 AWG, 17 AWG, 20 AWG, 19 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 125 °C, 130 °C, 90 °C, 110 °C, 85 °C, 105 °C, 120 °C, 100 °C	-	-40 – 130 °C
AMP MCP 1.5K, CONTACT	1534334-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1.25 mm², 1.5 mm², 1 mm²	16 AWG, 15 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	110 °C, 125 °C, 105 °C, 100 °C, 120 °C, 80 °C, 130 °C, 90 °C, 85 °C	-	-40 – 130 °C
AMP MCP 6.3/4.8K,TERMINAL,FUSE 0.64	1-2208459-3	Product Drawing 3D PDF	Receptacle	4.8 mm, 6.3 mm, 5.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.6 mm², 1 mm², .5 mm², .75 mm²	17 AWG, 18 AWG, 20 AWG, 19 AWG	Locking Lance	Silver (Ag)	Wire	140 °C, 130 °C, 105 °C, 145 °C, 80 °C, 90 °C, 85 °C, 100 °C, 150 °C, 125 °C, 120 °C, 110 °C	-	-40 – 150 °C
AMP MCP 6.3/4.8K,TERMINAL,FUSE 0.64	1-2208461-3	Product Drawing 3D PDF	Receptacle	4.8 mm, 6.3 mm, 5.8 mm	.8 mm	25 – 40 A (Power)	13 – 11 AWG	2.5 – 4 mm²	No	-	3 mm², 4 mm², 2.5 mm²	13 AWG, 12 AWG, 11 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 90 °C, 130 °C, 145 °C, 150 °C, 100 °C, 110 °C, 120 °C, 125 °C, 85 °C, 105 °C, 140 °C	-	-40 – 150 °C
AMP MCP 2.8, CONTACT LANCELESS	1-1355876-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	No	-	.2 mm², .25 mm², .5 mm², .3 mm², .4 mm²	21 AWG, 24 AWG, 23 AWG, 22 AWG, 20 AWG	Clean Body	Tin (Sn)	Wire	120 °C, 85 °C, 90 °C, 80 °C, 130 °C, 100 °C, 125 °C, 110 °C, 105 °C	-	-40 – 130 °C
AMP MCP 2.8, CONTACT LANCELESS	1-1355877-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	15 – 13 AWG	1.5 – 2.5 mm²	No	-	2 mm², 1.5 mm², 2.5 mm²	13 AWG, 14 AWG, 15 AWG	Clean Body	Tin (Sn)	Wire	105 °C, 125 °C, 110 °C, 85 °C, 120 °C, 130 °C, 100 °C, 90 °C, 80 °C	-	-40 – 130 °C

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Clean Body, Locking Lance
Sealable No, Yes
Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Silver
Typical Current Rating (A) 8, 11, 12, 13, 14, 15, 17, 19, 20, 22, 23, 24, 25, 26, 27, 28, 30, 34, 36, 37, 40, 65, 78, 100
Terminal Type Receptacle, Tab
Interface Plating Tin (Sn), Silver (Ag), Tin Silver (SnAg), Gold (Au)
Contact Fabrication Stamped & Formed
Mating Tab Width (mm) 1.5, 2.8, 4.8, 5.8, 6.1, 6.3, 6.35, 9.5
Mating Tab Width (in) .059, .11, .189, .228, .24, .248, .374
PCB Contact Termination Area Plating Material Tin
Contact Size 2.8K, 9.5mm, 2.8mm, 6.3mm, 1.5mm, 4.8mm, 1.5K
Crimp Type F-Crimp
Mating Tab Thickness (mm) .4, .6, .8, 1.2
Mating Tab Thickness (in) .016, .024, .031, .047

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire, Printed Circuit Board

Dimensions

Wire Size (mm²) .2 – .5, .2 – .35, .3 – .85, .3, .5 – .85, .5 – 1, 1 – 2.5, 1 – 2, 1 – 1.5, 1.25 – 2, 1.5 – 2.5, 2.5 – 4, 3 – 6, 3 – 4, 3, 4, 4 – 6, 6, 6 – 10, 10 – 16
Compatible Insulation Diameter Range (mm) 1.1 – 1.4, 1.1 – 1.6, 1.2 – 2.1, 1.2 – 1.4, 1.2 – 2.3, 1.3 – 2.1, 1.4 – 2.1, 1.4 – 2.7, 1.4 – 2.4, 1.9 – 3, 1.9 – 2.4, 2.1 – 3.4, 2.1 – 3, 2.2 – 2.4, 2.2 – 3, 2.2 – 3.7, 2.7 – 3.7, 3 – 3.8, 3.3 – 4.1, 3.4, 3.4 – 3.7, 3.4 – 4.3, 3.4 – 4.4, 4 – 5.2, 4.6 – 6.4, 4.6 – 6.6, 7.1 – 7.7
Compatible Insulation Diameter Range (in) .043 – .063, .043 – .055, .047 – .055, .047 – .091, .047 – .082, .051 – .083, .055 – .094, .055 – .083, .055 – .106, .074 – .094, .075 – .118, .082 – .118, .086 – .145, .086 – .118, .086 – .094, .087 – .118, .106 – .146, .106 – .145, .117 – .148, .13 – .16, .132 – .172, .132 – .168, .134, .134 – .169, .156 – .203, .18 – .25, .18 – .258, .277 – .301, .82 – .118
Wire Size (AWG) 7 – 5, 9 – 7, 10, 11 – 9, 11, 12, 12 – 9, 12 – 11, 13 – 11, 15 – 13, 16 – 14, 17 – 13, 17 – 14, 17 – 15, 20 – 18, 20 – 17, 22, 22 – 18, 24 – 20, 24 – 22
Wire Size Search (mm²) .2, .25, .3, .4, .5, .6, .75, .8, 1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 16
Tab Length 25 mm [ .98 in ]
Wire Size Search (AWG) 12, 8, 19, 23, 15, 11, 9, 22, 13, 24, 16, 5, 10, 21, 6, 17, 14, 20, 18, 7

Usage Conditions

Operating Temperature Range (°C) -40 – 180, -40 – 80, -40 – 120, -40 – 130, -40 – 140, -40 – 150
Operating Temperature Range (°F) -40 – 302, -40 – 248, -40 – 266, -40 – 356, -40 – 176, -40 – 284
Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150, 170, 180
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 338, 356
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214, IEC 664/664A (DIN VDE 0110), OEM

Packaging Features

Packaging Method Reel, Package, Box, Carton
Packaging Quantity 500, 600, 800, 1500, 1700, 1800, 2000, 2500, 2700, 3000, 3300, 3500, 4000, 4500, 6000, 7000, 7500, 8000, 10000

Other

Customer Preferred Contact Yes, No
Terminal Transmits 0 – 24 A (Low Power), 25 – 40 A (Power), 41 – 100 A (High Power)

Reference Number

TE Internal Number CAT-AM705-T273

Related Materials

No documentation available.

AMP MCP, RECEPTACLE AND TAB

Product Features

Packaging Method : Reel, Package, Box, Carton

Operating Temperature Range (°C): -40 – 180, -40 – 80, -40 – 120, -40 – 130, -40 – 140, -40 – 150

Operating Temperature Range (°F): -40 – 302, -40 – 248, -40 – 266, -40 – 356, -40 – 176, -40 – 284

Termination Method to Wire & Cable : Crimp

Customer Preferred Contact : Yes, No

Product Type Features

Primary Locking Feature Clean Body, Locking Lance

Sealable No, Yes

Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Silver

Typical Current Rating (A) 8, 11, 12, 13, 14, 15, 17, 19, 20, 22, 23, 24, 25, 26, 27, 28, 30, 34, 36, 37, 40, 65, 78, 100

Terminal Type Receptacle, Tab

Interface Plating Tin (Sn), Silver (Ag), Tin Silver (SnAg), Gold (Au)

Contact Fabrication Stamped & Formed

Mating Tab Width (mm) 1.5, 2.8, 4.8, 5.8, 6.1, 6.3, 6.35, 9.5

Mating Tab Width (in) .059, .11, .189, .228, .24, .248, .374

PCB Contact Termination Area Plating Material Tin

Contact Size 2.8K, 9.5mm, 2.8mm, 6.3mm, 1.5mm, 4.8mm, 1.5K

Crimp Type F-Crimp

Mating Tab Thickness (mm) .4, .6, .8, 1.2

Mating Tab Thickness (in) .016, .024, .031, .047

Termination Features

Termination Method to Wire & Cable Crimp

Product Terminates To Wire, Printed Circuit Board

Dimensions

Wire Size (mm²) .2 – .5, .2 – .35, .3 – .85, .3, .5 – .85, .5 – 1, 1 – 2.5, 1 – 2, 1 – 1.5, 1.25 – 2, 1.5 – 2.5, 2.5 – 4, 3 – 6, 3 – 4, 3, 4, 4 – 6, 6, 6 – 10, 10 – 16

Wire Size (AWG) 7 – 5, 9 – 7, 10, 11 – 9, 11, 12, 12 – 9, 12 – 11, 13 – 11, 15 – 13, 16 – 14, 17 – 13, 17 – 14, 17 – 15, 20 – 18, 20 – 17, 22, 22 – 18, 24 – 20, 24 – 22

Wire Size Search (mm²) .2, .25, .3, .4, .5, .6, .75, .8, 1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 16

Tab Length 25 mm [ .98 in ]

Wire Size Search (AWG) 12, 8, 19, 23, 15, 11, 9, 22, 13, 24, 16, 5, 10, 21, 6, 17, 14, 20, 18, 7

Usage Conditions

Operating Temperature Range (°C) -40 – 180, -40 – 80, -40 – 120, -40 – 130, -40 – 140, -40 – 150

Operating Temperature Range (°F) -40 – 302, -40 – 248, -40 – 266, -40 – 356, -40 – 176, -40 – 284

Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150, 170, 180

Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 338, 356

Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214, IEC 664/664A (DIN VDE 0110), OEM

Packaging Features

Packaging Method Reel, Package, Box, Carton

Packaging Quantity 500, 600, 800, 1500, 1700, 1800, 2000, 2500, 2700, 3000, 3300, 3500, 4000, 4500, 6000, 7000, 7500, 8000, 10000

Other

Customer Preferred Contact Yes, No

Terminal Transmits 0 – 24 A (Low Power), 25 – 40 A (Power), 41 – 100 A (High Power)

Reference Number

TE Internal Number CAT-AM705-T273

Chat
