Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

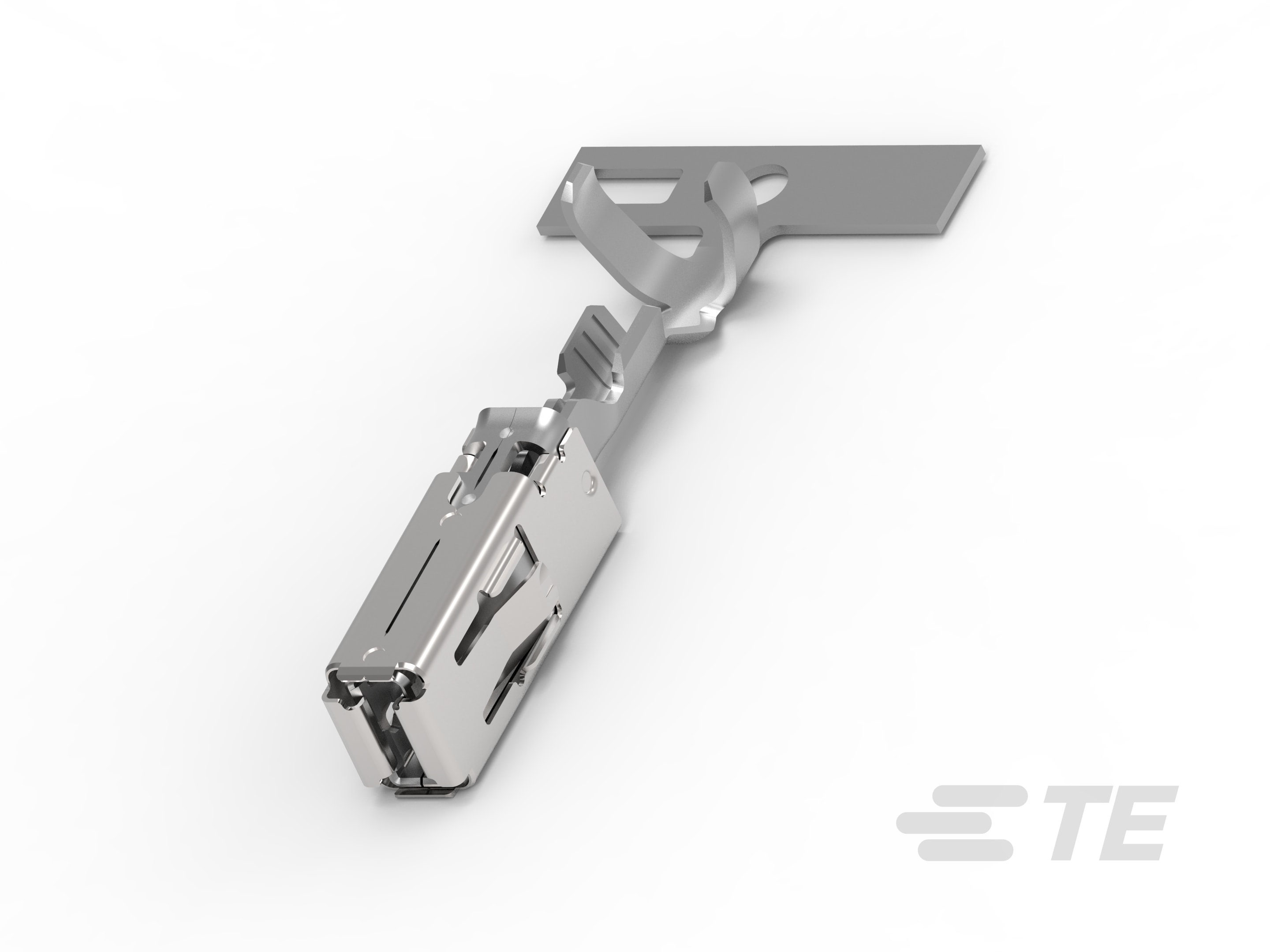

• Receptacle Style : 180°

• Primary Locking Feature : Locking Lance

• Sealable : Yes

• Terminal Seal Type : Single Wire Seal (SWS)

• Contact Fabrication : Stamped & Formed

• Contact Size : 2.8K

• Crimp Type : F-Crimp

• Terminal Type : Receptacle

• Mating Tab Width : 2.8 mm [ .11 in ]

• Interface Plating : Tin (Sn)

• Mating Tab Thickness (mm): .6, .8

• Mating Tab Thickness (in): .024, .031

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire

• Compatible Insulation Diameter Range : 1.1 – 1.4 mm [ .043 – .055 in ]

• Wire Size (AWG): 24 – 22

• Wire Size (mm²): .2 – .35

• Wire Size Search (mm²): .2, .25, .3

• Wire Size Search (AWG): 22, 23, 24

• Insulation Option : Uninsulated

• Operating Temperature (Max) : 125 °C [ 212 °F ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Conforms to Automation Guideline : Yes, DIN 72036 Automation of Wiring Harness Production per Version June 2024, Yes, KOMAX Automatic Component Insertion per Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper

• Packaging Quantity : 3500

• Packaging Method : Reel
