165299

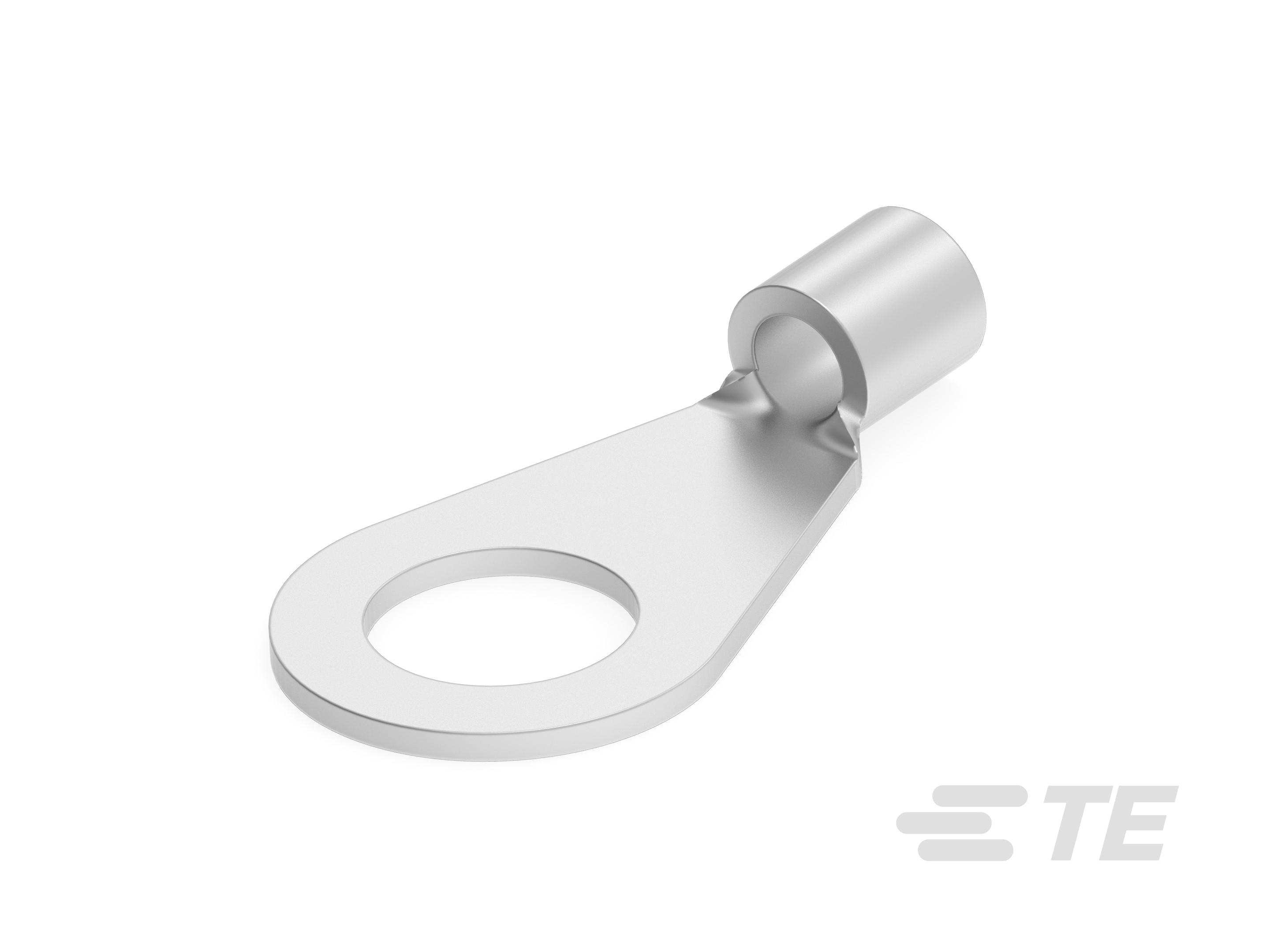

Closed Ring Tongue Terminal, 16 – 14 AWG, M6 Stud, 6.5 mm [.256 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
165299
Closed Ring Tongue Terminal, 16 – 14 AWG, M6 Stud, 6.5 mm [.256 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 165299
- TE Internal Description: SOLIS DIN 1.5-2.5 R M6
- Alias #: E22647-000 AMPS-0-0165299-0
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.5 – 2.5
-
Wire Size (CMA): 4108.69 – 6528.45
-
Stud Size : M6
Documents
Product Drawings
- TERMINAL, RING TONGUE, SOLISTRAND, DIN 46234 WIRE SIZE: 1.5-2.5 mm ENG_CD_165299_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_165299_G.pdf 3D
- Customer View Model ENG_CVM_CVM_165299_G.2d_dxf.zip English
- ENG_CVM_CVM_165299_G.3d_igs.zip English
- ENG_CVM_CVM_165299_G.3d_stp.zip English
