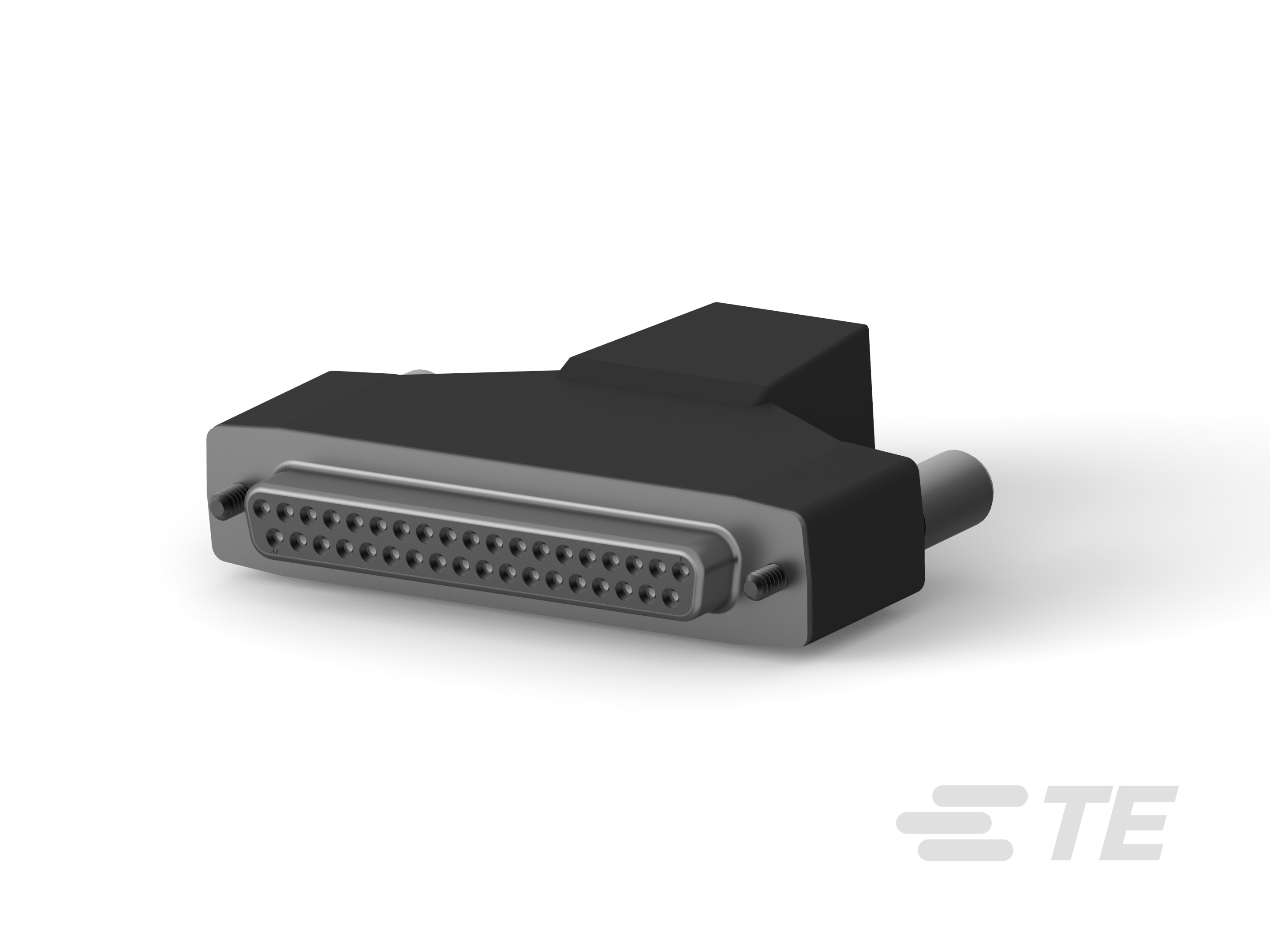

Receptacle, Cable-to-Cable, 37 Position, Size 20 Contact Size, 4 Connector Shell Size, Mating Retention, Shielded, Crimp D-Sub Connectors
1658660-1
Receptacle, Cable-to-Cable, 37 Position, Size 20 Contact Size, 4 Connector Shell Size, Mating Retention, Shielded, Crimp D-Sub Connectors
-
- AMPLIMITE
- TE Internal #: 1658660-1
- TE Internal Description: KIT,HDP-20,ENCLSUR,RCPT,SIZE 4
- All D-Sub Crimp Recpt Signal 37 Posn, Socket Size 20, Shell Size 4 (5)
-
Connector & Housing Type : Receptacle
-
Connector System : Cable-to-Cable
-
Number of Positions : 37
-
Contact Size : Size 20
-
Connector Shell Size : 4
