Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

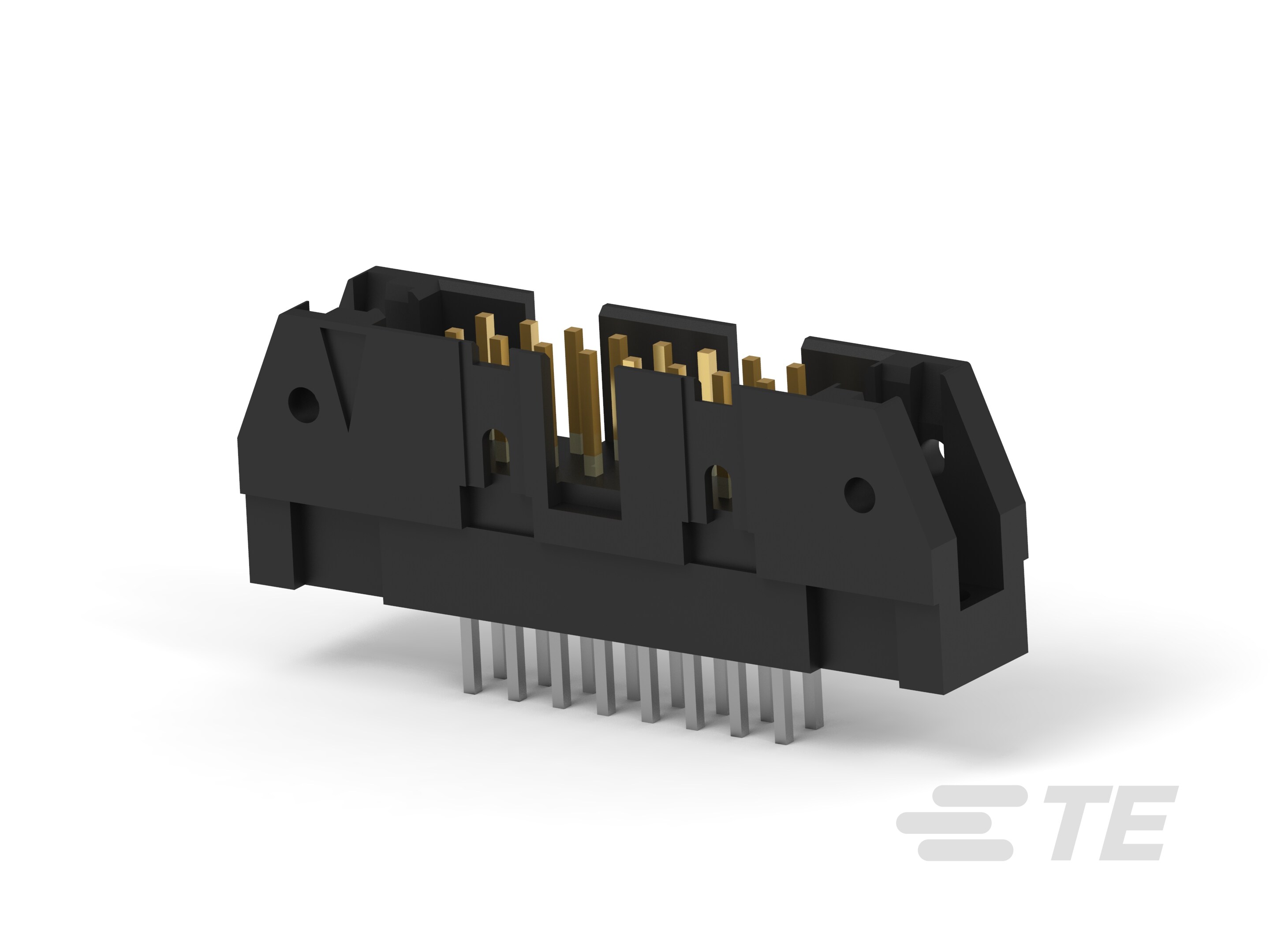

• Connector & Contact Terminates To : Printed Circuit Board

• Connector & Housing Type : Plug

• Connector Product Type : Connector Assembly

• Connector System : Wire-to-Board

• Ribbon Cable Connector Header Type : Universal Ejection Pin Headers

• Number of Rows : 2

• Number of Positions : 16

• PCB Mount Orientation : Vertical

• Insulation Resistance (MΩ): 5000

• Primary Product Color : Black

• Connector Profile : Standard

• PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Base Material : Phosphor Bronze

• PCB Contact Termination Area Plating Material : Tin

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 1

• Contact Type : Pin

• Contact Mating Area Plating Material Thickness (µin): 30

• Contact Mating Area Plating Material : Gold Flash

• Termination Post & Tail Length : 4.42 mm [ .174 in ]

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• PCB Mount Retention Type : Action/Compliant Tail

• Mating Alignment Type : Dual Polarizing Bar, Center

• PCB Mount Retention : With

• Mating Alignment : With

• Panel Mount Feature : Without

• Mating Retention : Without

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Housing Material : Nylon - GF

• Mating Entry Location : Top

• Connector Height : 13.94 mm [ .55 in ]

• Shrouded End Dimension : 3.81 mm [ .15 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• PCB Thickness (Recommended) : 2.03 mm [ .08 in ]

• Connector Length : 39.62 mm [ 1.56 in ]

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Housing Temperature Rating : High

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
