This product is not currently available. For more information, including distributor inventory, please contact us.

1658694-9

Active

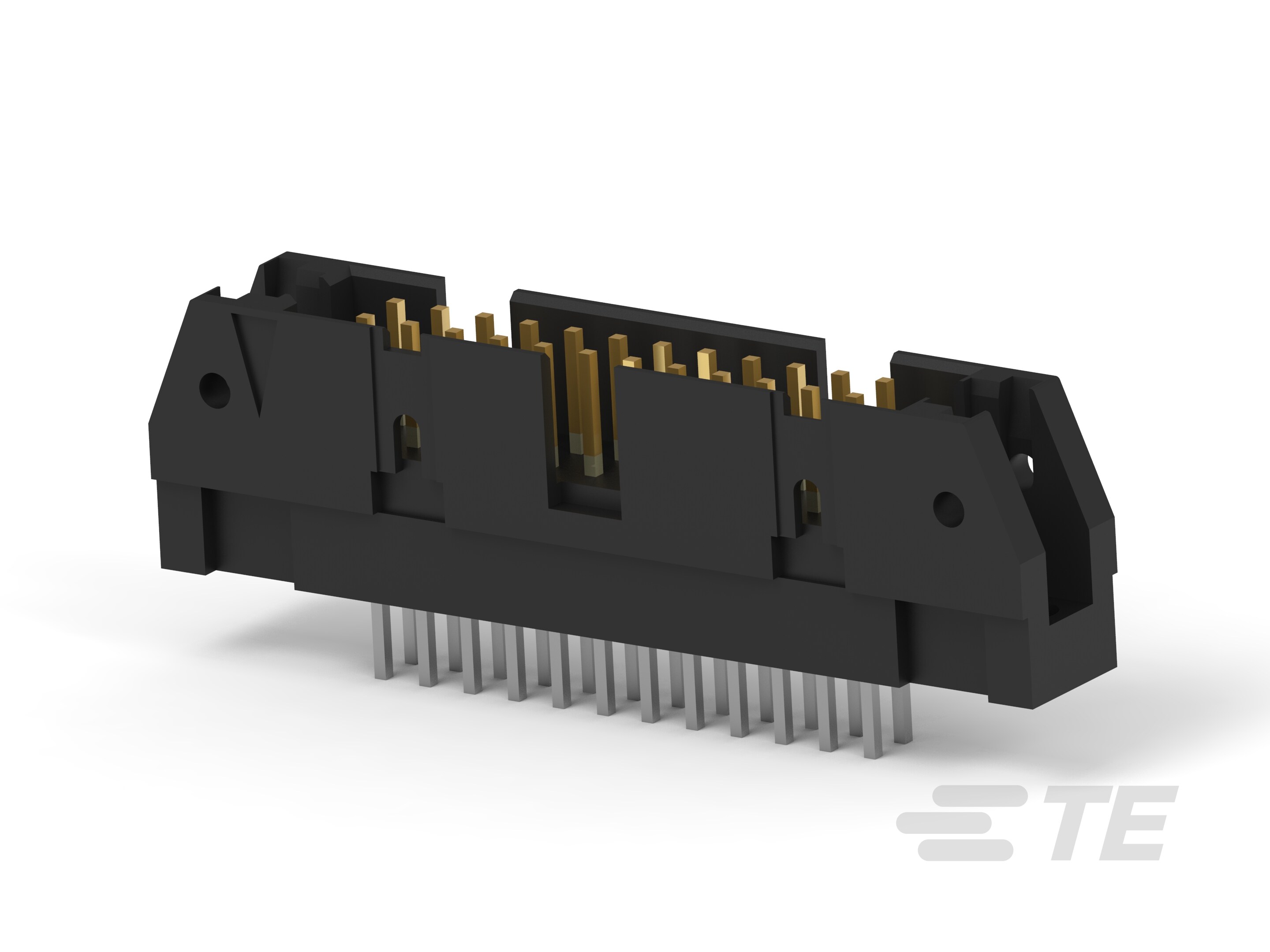

Wire-to-Board, 24 Position, 2.54 mm [.1 in] Centerline, Vertical, Through Hole - Press-Fit, AMP-LATCH Universal Headers, Ribbon Cable Connectors

1658694-9

Active

Wire-to-Board, 24 Position, 2.54 mm [.1 in] Centerline, Vertical, Through Hole - Press-Fit, AMP-LATCH Universal Headers, Ribbon Cable Connectors

- AMP-LATCH
- AMP-LATCH Universal Headers

TE Internal #: 1658694-9
TE Internal Description: A/L UNIV HDR 24P ACT PIN
All AMP-LATCH UNIVERSAL HEADERS (523)

Connector System : Wire-to-Board
Number of Positions : 24
Centerline (Pitch) : 2.54 mm [ .1 in ]
PCB Mount Retention : With
PCB Mount Retention Type : Action/Compliant Tail

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

HEADER ASSY, UNIVERSAL, ACTION PIN AMP-LATCH ENG_CD_1658694_H.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1658694-9_D.pdf 3D
Customer View Model ENG_CVM_CVM_1658694-9_D.2d_dxf.zip English
ENG_CVM_CVM_1658694-9_D.3d_igs.zip English
ENG_CVM_CVM_1658694-9_D.3d_stp.zip English

Datasheets & Catalog Pages

Ribbon Cable Interconnect Solutions ENG_CS_82012_Ribbon_Cable_Interconnect_Sol_0412.pdf English

Product Specifications

Application Specification ENG_SS_114-40020_D.pdf English
Product Specification ENG_SS_108-40019_C.pdf English
ENG_SS_108-2351_H1.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Ribbon Cable Connector Header Type : Universal Ejection Pin Headers
Connector Product Type : Connector Assembly
Connector System : Wire-to-Board
Connector & Housing Type : Plug
Connector & Contact Terminates To : Printed Circuit Board

Housing Features

Housing Material : Nylon - GF
Mating Entry Location : Top
Centerline (Pitch) : 2.54 mm [ .1 in ]

Mechanical Attachment

PCB Mount Alignment : Without
Mating Alignment : With
Panel Mount Feature : Without
PCB Mount Retention : With
PCB Mount Retention Type : Action/Compliant Tail
Mating Alignment Type : Dual Polarizing Bar, Center
Mating Retention : Without
Connector Mounting Type : Board Mount

Termination Features

Square Termination Post & Tail Dimension : .64 mm [ .025 in ]
Termination Post & Tail Length : 4.42 mm [ .174 in ]
Termination Method to PCB : Through Hole - Press-Fit

Dimensions

Connector Length : 49.78 mm [ 1.96 in ]
Connector Height : 13.94 mm [ .55 in ]
PCB Thickness (Recommended) : 2.03 mm [ .08 in ]
Shrouded End Dimension : 3.81 mm [ .15 in ]
Row-to-Row Spacing : 2.54 mm [ .1 in ]

Body Features

Primary Product Color : Black
Connector Profile : Standard

Contact Features

Contact Type : Pin
PCB Contact Termination Area Plating Material : Tin
Contact Base Material : Phosphor Bronze
Contact Mating Area Plating Material : Gold Flash
PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]
Mating Square Post Dimension : .64 mm [ .025 in ]
Contact Mating Area Plating Material Thickness (µin): 30
Contact Underplating Material : Nickel
Contact Current Rating (Max) (A): 1

Usage Conditions

Housing Temperature Rating : High
Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

Packaging Features

Packaging Method : Tray
Packaging Quantity : 60

Industry Standards

UL Flammability Rating : UL 94V-0

Electrical Characteristics

Insulation Resistance (MΩ): 5000

Configuration Features

Number of Positions : 24
PCB Mount Orientation : Vertical
Number of Rows : 2

Operation/Application

Circuit Application : Signal

Other

EU RoHS Compliance : Compliant
EU ELV Compliance : Compliant
