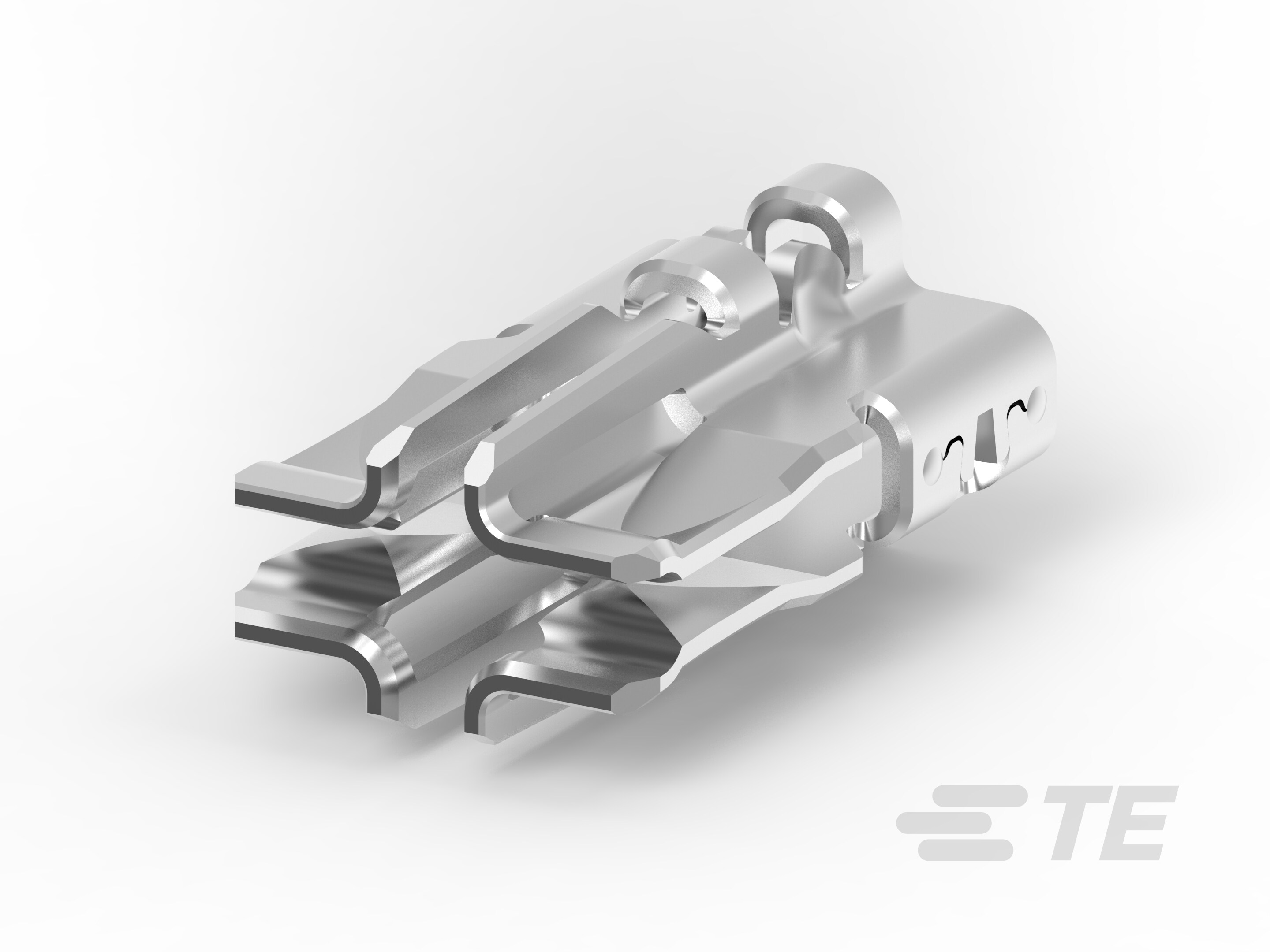

Receptacle Terminal, Mating Tab Width 9.5 mm [.374 in], Tab Thickness 1.2 mm [.047 in], Tin (Sn) Interface Plating, AMP MCP 9.5
1670001-1
Receptacle Terminal, Mating Tab Width 9.5 mm [.374 in], Tab Thickness 1.2 mm [.047 in], Tin (Sn) Interface Plating, AMP MCP 9.5
-
- AMP MCP 9.5
- TE Internal #: 1670001-1
- TE Internal Description: 9.5 CROSS-CONTACT STAMPED CIRCUIT 0.8MM
- All PCB CONTACTS (6)
-
Terminal Type : Receptacle
-
Mating Tab Width : 9.5 mm [ .374 in ]
-
Mating Tab Thickness : 1.2 mm [ .047 in ]
-
Terminal Transmits : 41 – 100 A (High Power)
-
Sealable : No
Documents
Product Drawings
- CROSS CONTACT GROUP DRAWING ENG_CD_1823667_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1670001-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1670001-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1670001-1_A.3d_igs.zip English
- ENG_CVM_CVM_1670001-1_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-94188_A_108-94188.pdf English
