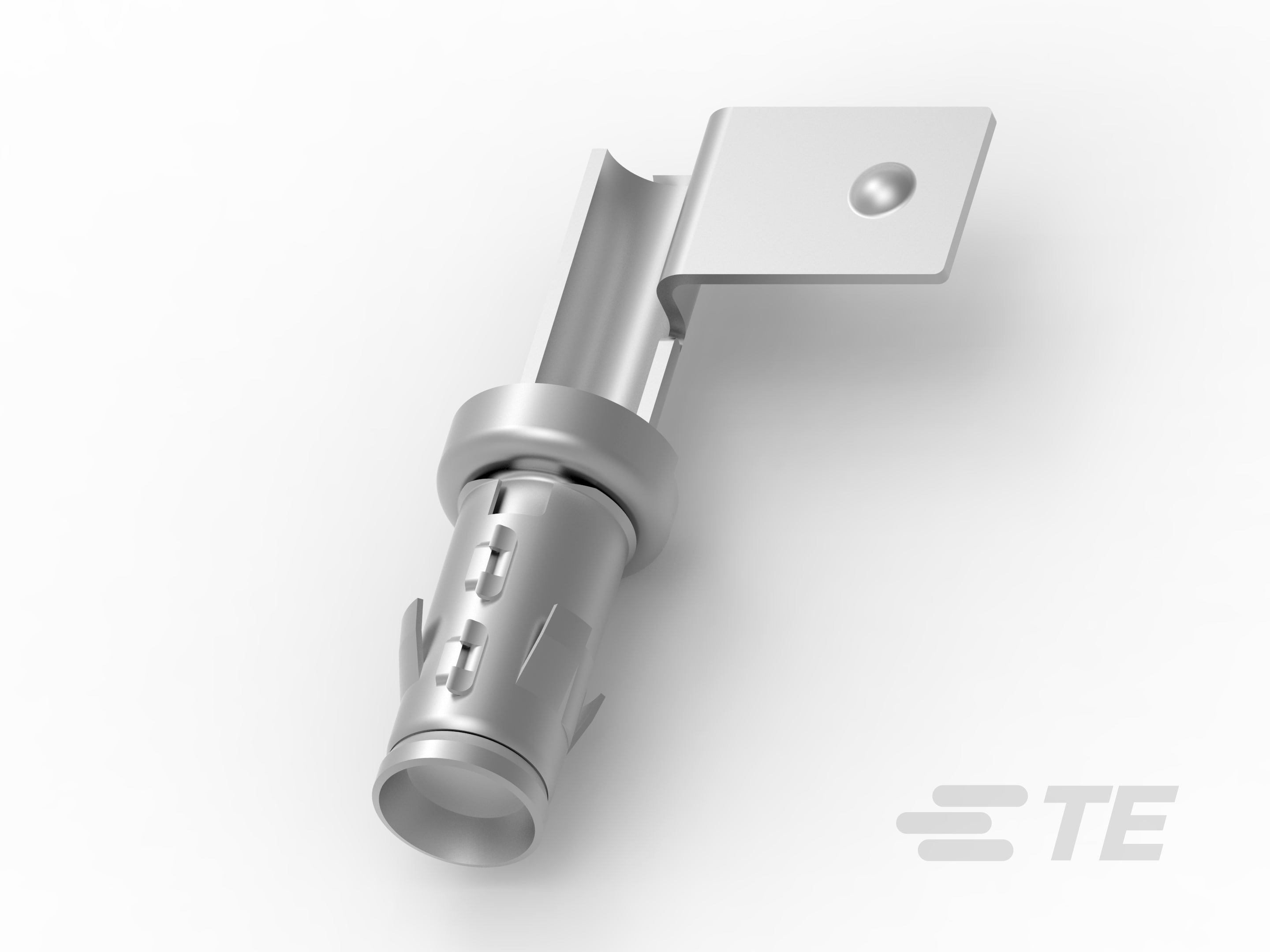

Socket, Pin Diameter 2.5 mm [.098 in], Tin (Sn) Interface Plating, Terminates To Busbar, Round Connector System, Automotive Terminals
1703021-1
Socket, Pin Diameter 2.5 mm [.098 in], Tin (Sn) Interface Plating, Terminates To Busbar, Round Connector System, Automotive Terminals
-
- Round Connector System
- TE Internal #: 1703021-1
- TE Internal Description: DIA 2.5MM CONTACT WITH WELDING FLAG
- All ROUND CONNECTOR SYSTEM, PIN AND SOCKET (48)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) (°C): 85, 105, 130, 120, 125, 100, 110, 90, 80
-
Operating Temperature (Max) (°F): 194, 185, 230, 248, 257, 266, 176, 221, 212
-
Terminal Transmits : 25 – 40 A (Power)
